SKU: LM.E.25.UU.EU

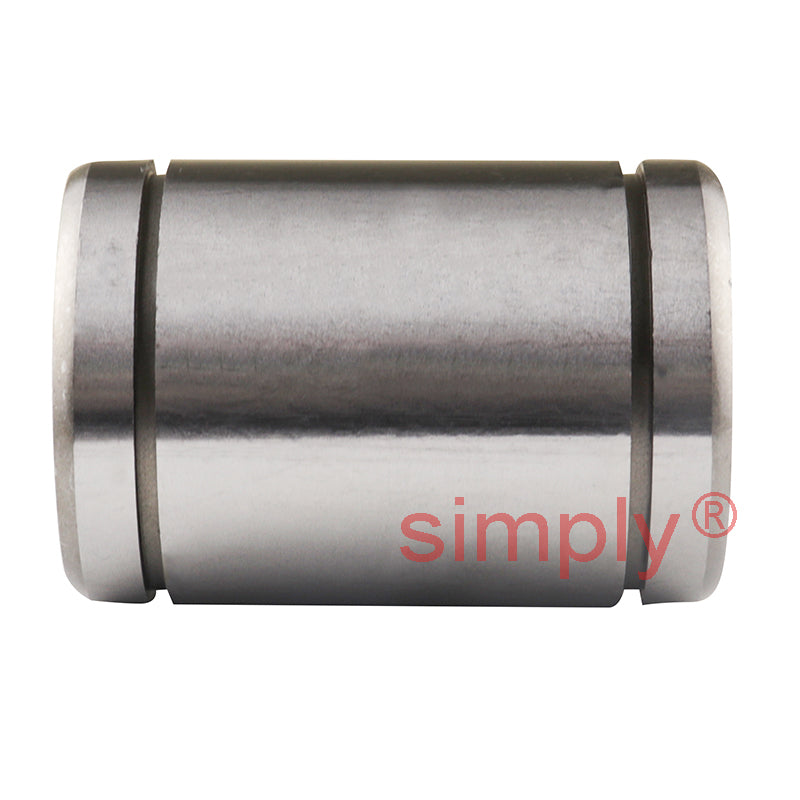

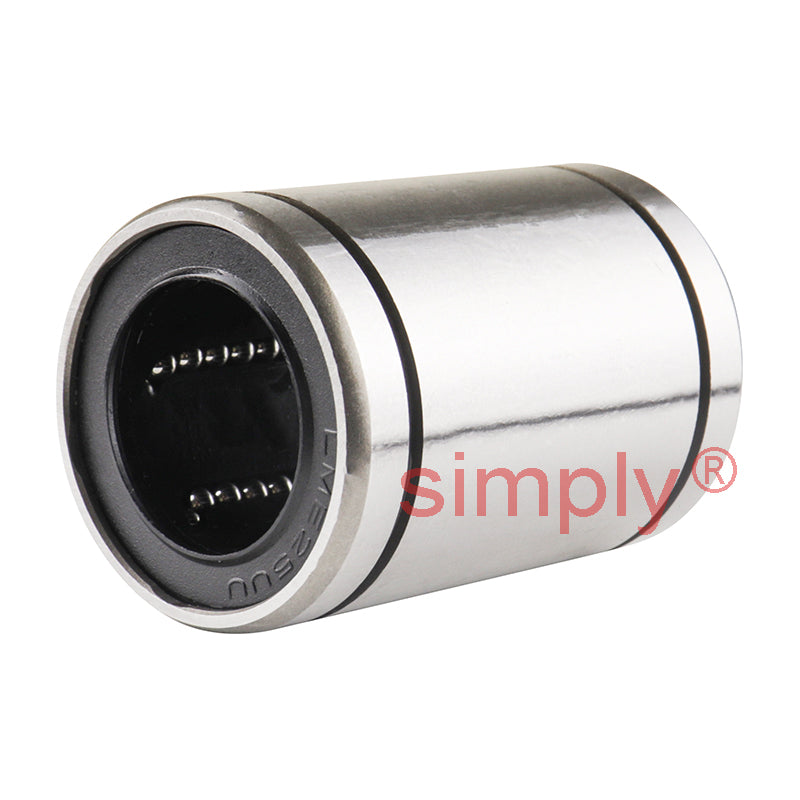

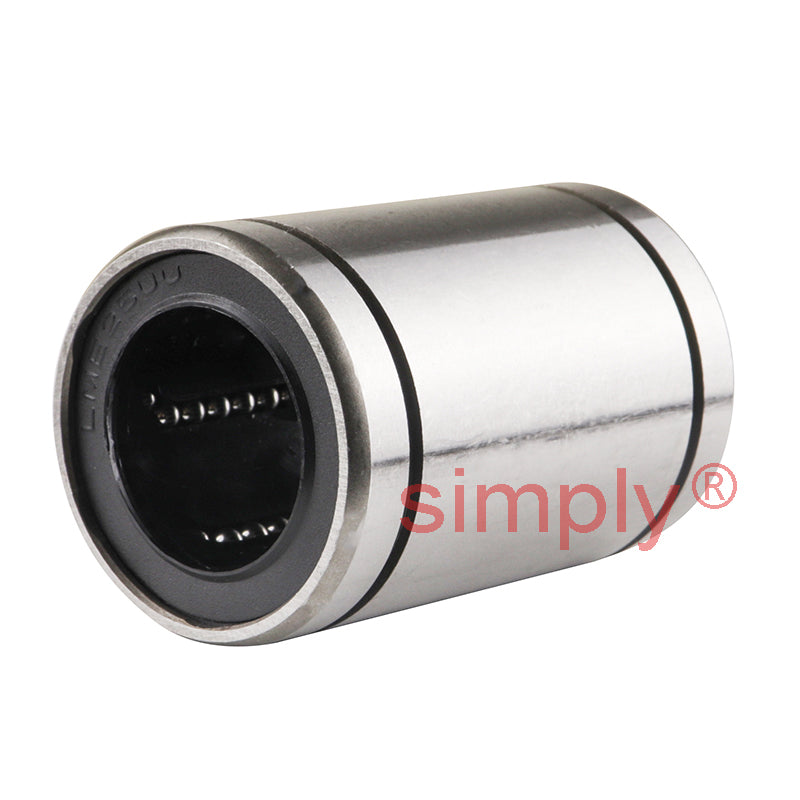

LME25UU Closed Linear Ball Bushing with Rubber Seals 25x40x58mm

LME25UU Closed Linear Ball Bushing with Rubber Seals 25x40x58mm
$20.20 ex VAT
$20.20 ex VAT
Sale Sold out

Equivalent to: KB25GUU KB2558PP MAM25WW LBE25UU

In stock

Price Break
3+ $13.53
5+ $12.77
10+ $12.61
15+ $12.46
20+ $12.31
30+ $12.16
40+ $11.40
50+ $11.25
60+ $11.09
75+ $10.94
100+ $10.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
58mm
Technical
Inside Diameter dr 25mm Tol +11 to - 1µm
Outside Diameter D 40mm Tol + 0 to - 300µm
Length L 58mm Tol + 0 to - 300µm
W 1.85mm
D1 37.5mm
B 44.1mm
Eccentricity 15µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 196 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
