SKU: LM.E.25.UU.OP.EU

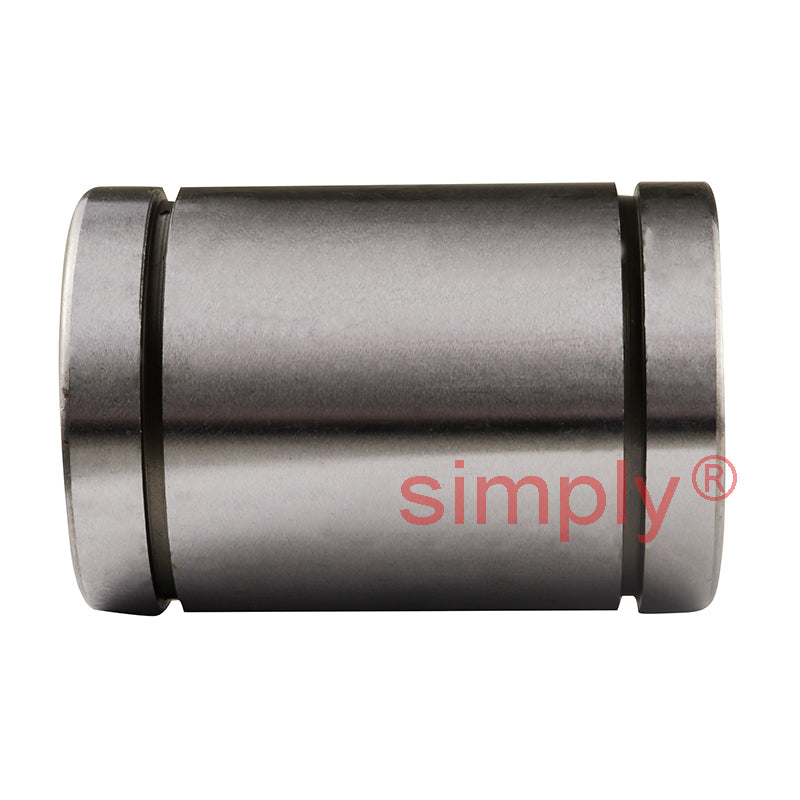

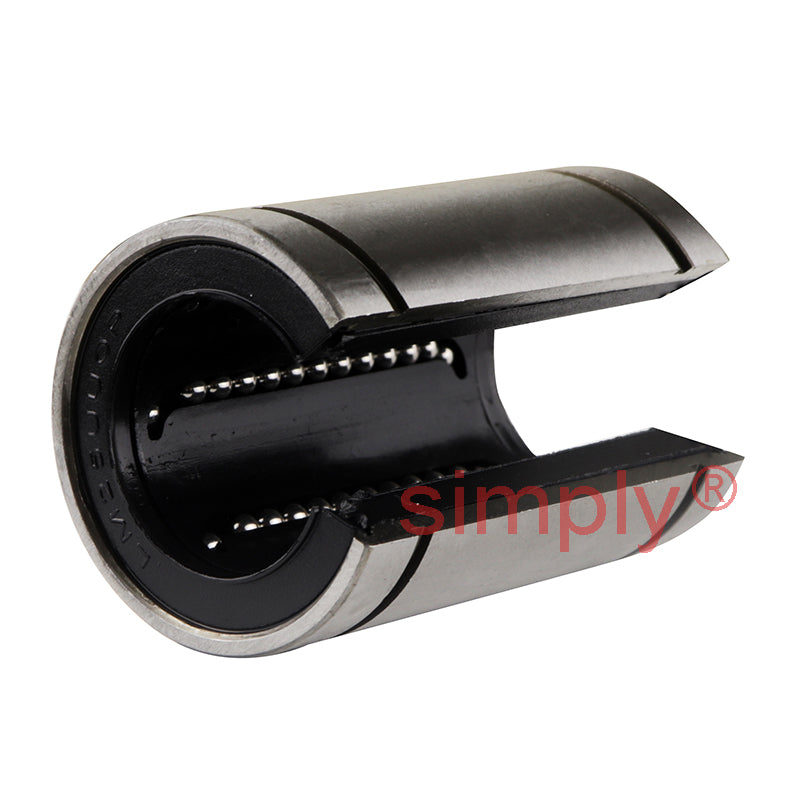

LME25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x58mm

LME25UUOP Open Linear Ball Bushing with Rubber Seals 25x40x58mm
$21.46 ex VAT
$21.46 ex VAT
Sale Sold out

Equivalent to: KB25GUU-OP KBO2558PP MAM25OPNWW LBE25UUOP

In stock

Price Break
3+ $14.37
5+ $13.57
10+ $13.40
15+ $13.24
20+ $13.08
30+ $12.92
40+ $12.11
50+ $11.95
60+ $11.79
75+ $11.63
100+ $11.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
58mm
Technical
Inside Diameter dr 25mm Tol +11 to - 1µm
Outside Diameter D 40mm Tol + 0 to - 11µm
Length L 58mm Tol + 0 to - 300µm
W 1.85mm
D1 37.5mm
B 44.1mm
h1 12.5mm
Eccentricity 15µm
Dynamic load C 105 kgf
Static load C<sub>o</sub> 185 kgf
Weight 215 g
Number of ball rows 5
Tolerances dr & D Apply to closed type only
