SKU: LM.E.30.UU.AJ.EU

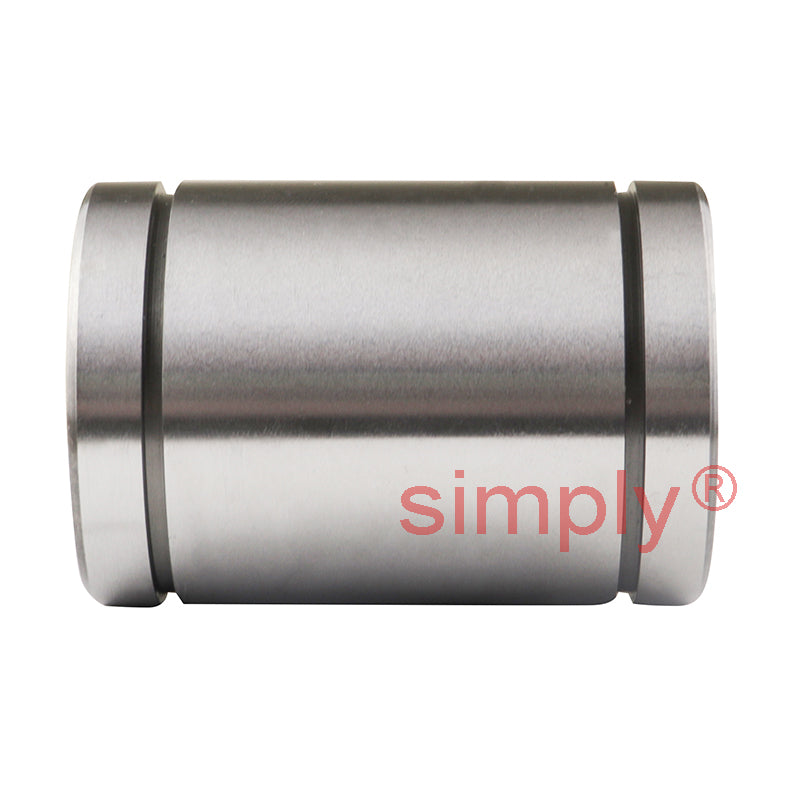

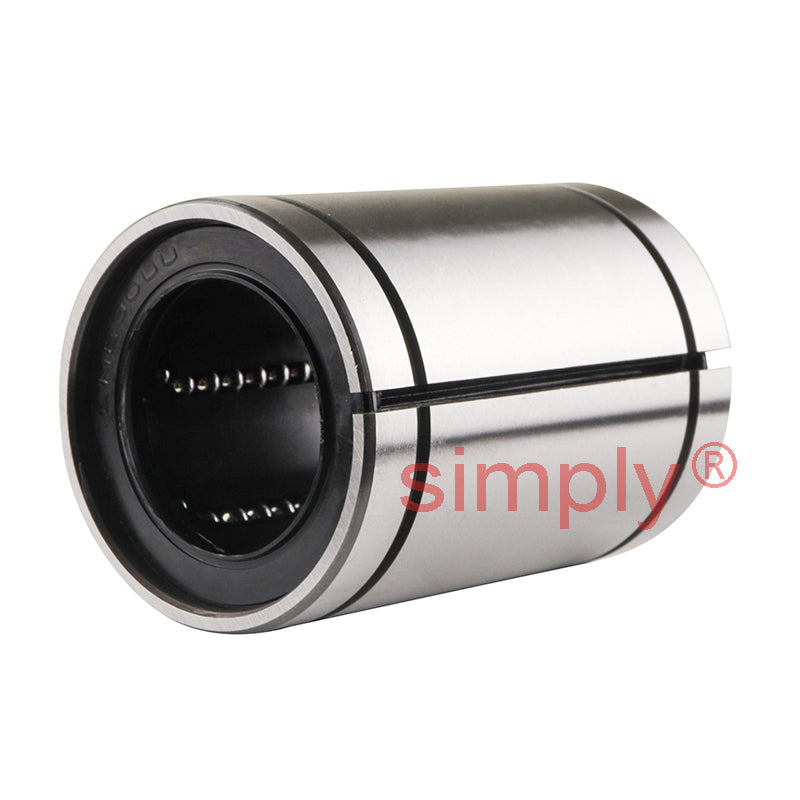

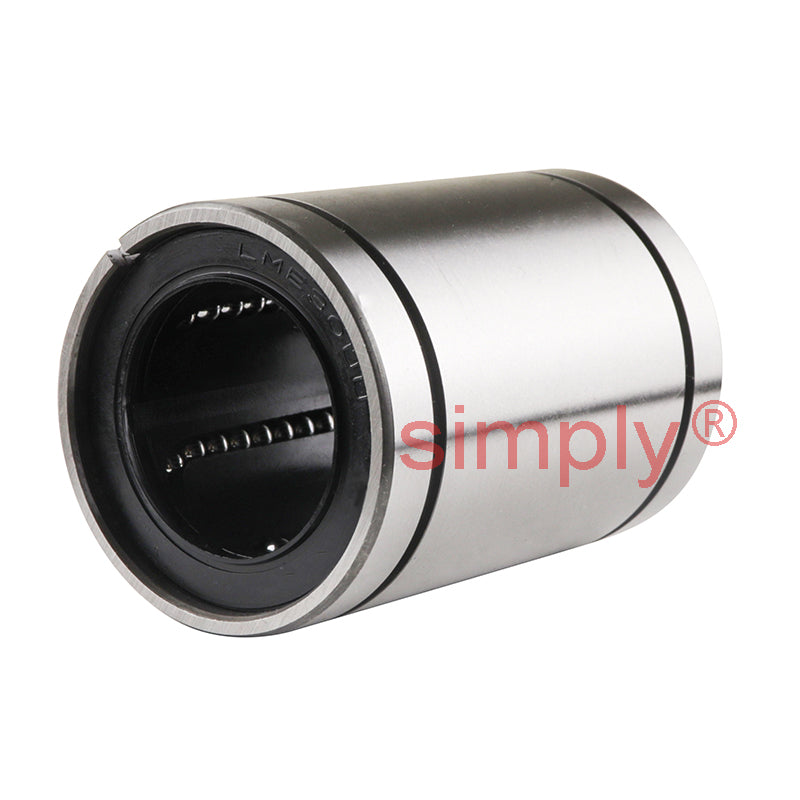

LME30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x47x68mm

LME30UUAJ Adjustable Linear Ball Bushing with Rubber Seals 30x47x68mm
$26.45 ex VAT
$26.45 ex VAT
Sale Sold out

Equivalent to: KB30GUUAJ KBS3068PP MAM30ADJWW LBE30UUAJ

In stock

Price Break
3+ $17.72
5+ $16.72
10+ $16.53
15+ $16.33
20+ $16.13
30+ $15.93
40+ $14.93
50+ $14.73
60+ $14.53
75+ $14.34
100+ $13.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Length:
68mm
Technical
Inside Diameter dr 30mm Tol +11 to - 2µm
Outside Diameter D 47mm Tol + 0 to - 11µm
Length L 68mm Tol + 0 to - 300µm
W 1.85mm
D1 44.5mm
B 52.1mm
h 2mm
Eccentricity 15µm
Dynamic load C 150 kgf
Static load C<sub>o</sub> 280 kgf
Weight 325 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
