• LME5UU Closed Linear Ball Bushing with Rubber Seals 5x12x22mm
  • LME5UU Closed Linear Ball Bushing with Rubber Seals 5x12x22mm
  • LME5UU Closed Linear Ball Bushing with Rubber Seals 5x12x22mm
1 3

SKU: LM.E.5.UU.EU

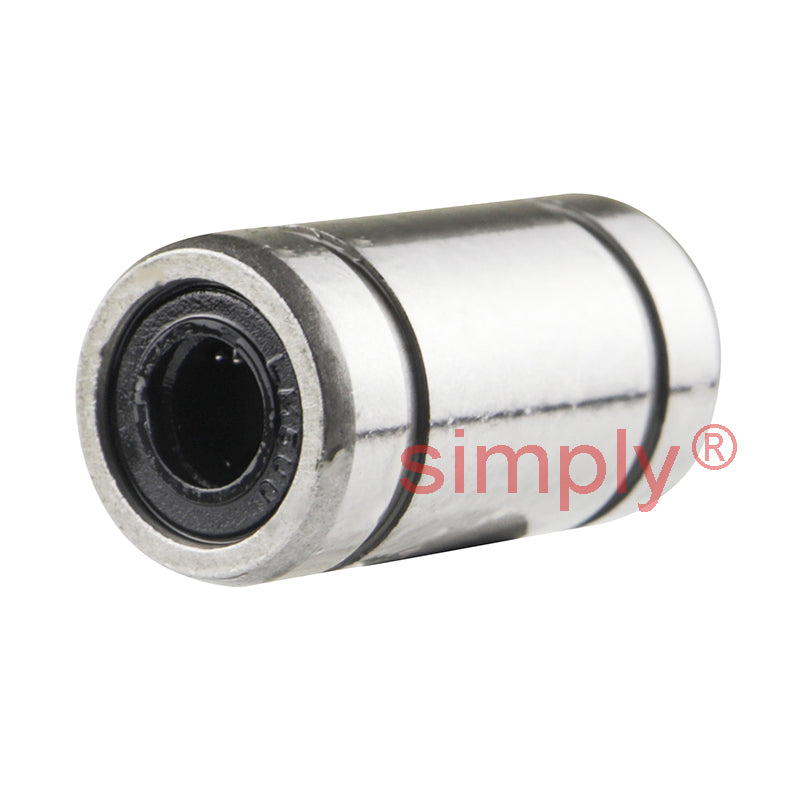

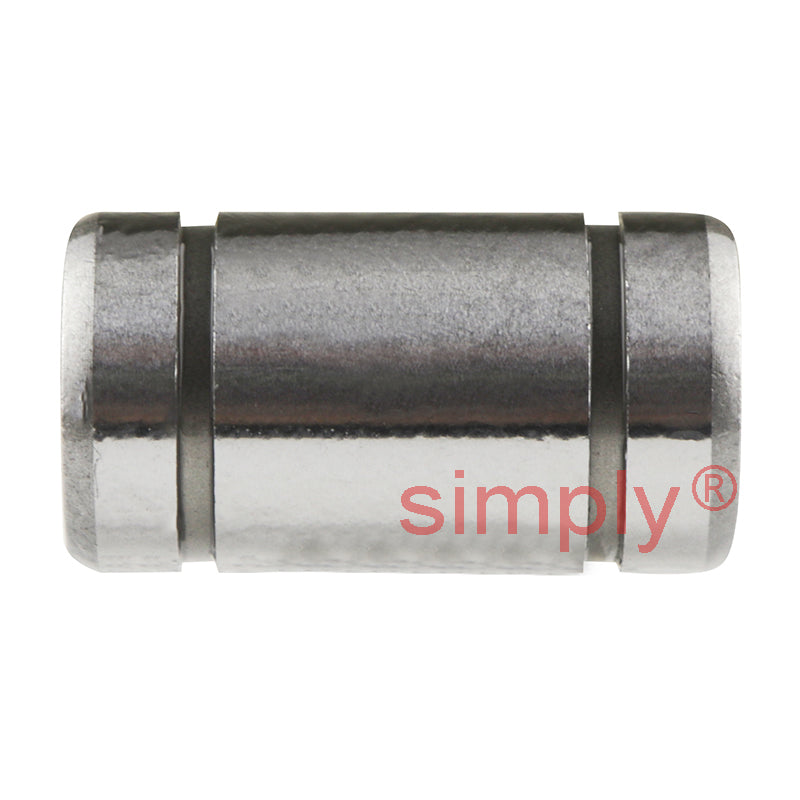

LME5UU Closed Linear Ball Bushing with Rubber Seals 5x12x22mm

LME5UU Closed Linear Ball Bushing with Rubber Seals 5x12x22mm
$15.64 ex VAT
$15.64 ex VAT
Sale Sold out

Equivalent to: KB5GUU LBE5UU

In stock

Price Break
3+ $10.48
5+ $9.89
10+ $9.77
15+ $9.65
20+ $9.53
30+ $9.42
40+ $8.83
50+ $8.71
60+ $8.59
75+ $8.47
100+ $8.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
5mm
Outside Diameter:
12mm
Length:
22mm
Technical
Inside Diameter dr 5mm Tol +8 to - 0µm
Outside Diameter D 12mm Tol + 0 to - 200µm
Length L 22mm Tol + 0 to - 200µm
W 1.1mm
D1 11.5mm
B 14.5mm
Eccentricity 12µm
Dynamic load C 12 kgf
Static load C<sub>o</sub> 22 kgf
Weight 11 g
Number of ball rows 3
Tolerances dr & D Apply to closed type only
