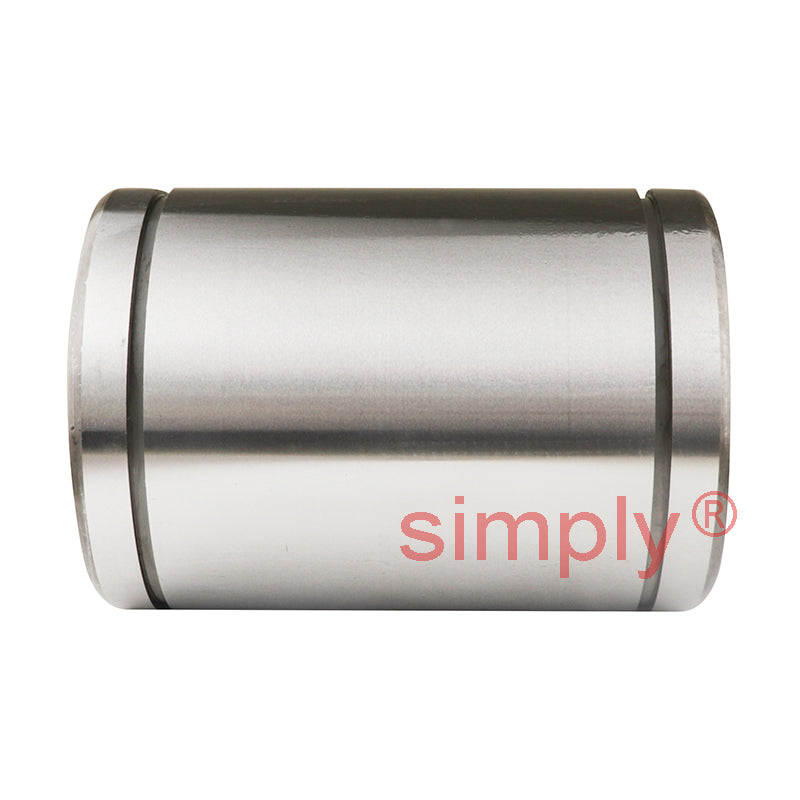

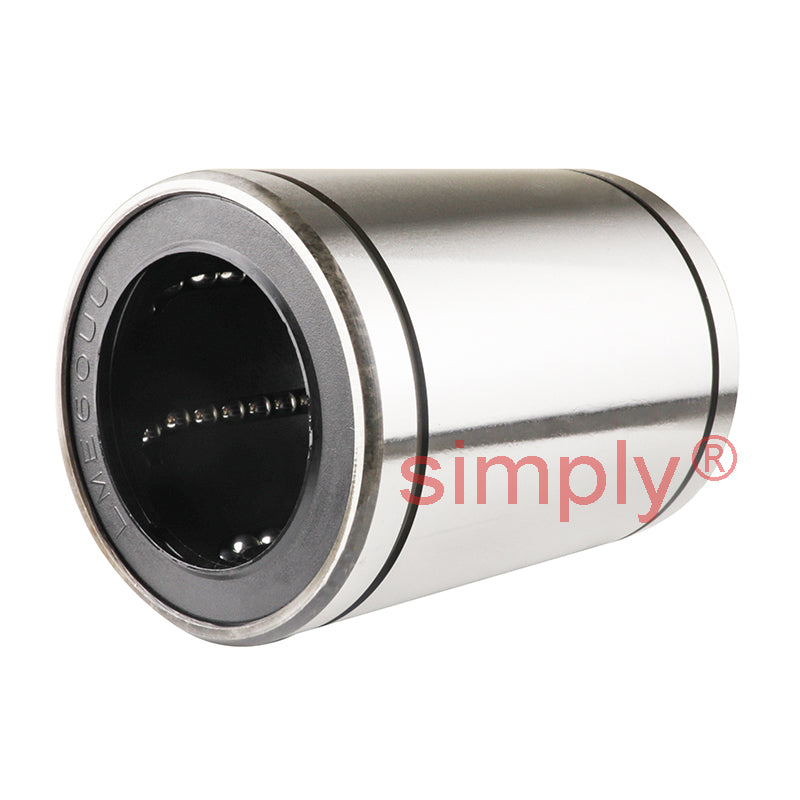

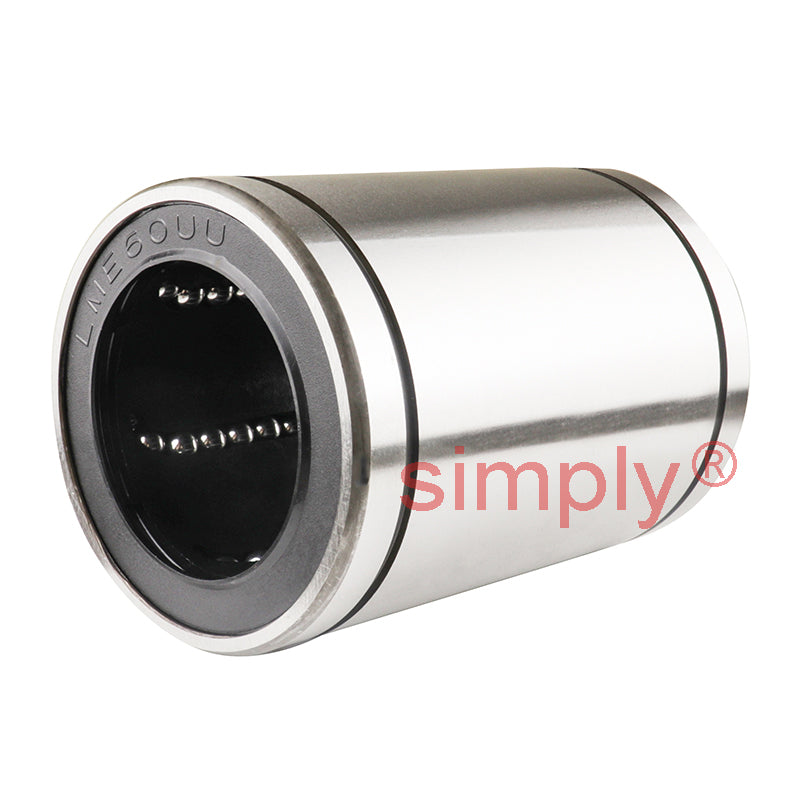

• LME60UU Closed Linear Ball Bushing with Rubber Seals 60x90x125mm
  • LME60UU Closed Linear Ball Bushing with Rubber Seals 60x90x125mm
  • LME60UU Closed Linear Ball Bushing with Rubber Seals 60x90x125mm
1 3

SKU: LM.E.60.UU.EU

LME60UU Closed Linear Ball Bushing with Rubber Seals 60x90x125mm

LME60UU Closed Linear Ball Bushing with Rubber Seals 60x90x125mm
$127.21 ex VAT
$127.21 ex VAT
Sale Sold out

Equivalent to: KB60GUU LME6090125NUU

In stock

Price Break
3+ $85.21
5+ $80.42
10+ $79.46
15+ $78.50
20+ $77.55
30+ $76.59
40+ $71.80
50+ $70.85
60+ $69.89
75+ $68.93
100+ $67.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
125mm
Technical
Inside Diameter dr 60mm Tol +13 to - 4µm
Outside Diameter D 90mm Tol + 0 to - 400µm
Length L 125mm Tol + 0 to - 400µm
W 3.15mm
D1 86.5mm
B 101.7mm
Eccentricity 20µm
Dynamic load C 635 kgf
Static load C<sub>o</sub> 1200 kgf
Weight 2220 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
