• LME8UU Closed Linear Ball Bushing with Rubber Seals 8x16x25mm
  • LME8UU Closed Linear Ball Bushing with Rubber Seals 8x16x25mm
  • LME8UU Closed Linear Ball Bushing with Rubber Seals 8x16x25mm
1 3

SKU: LM.E.8.UU.EU

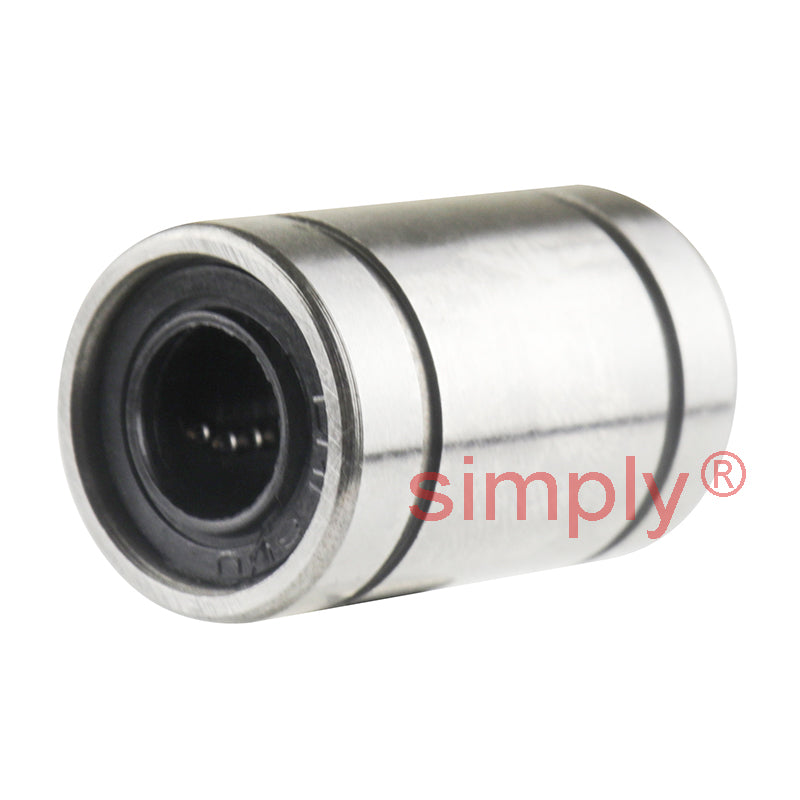

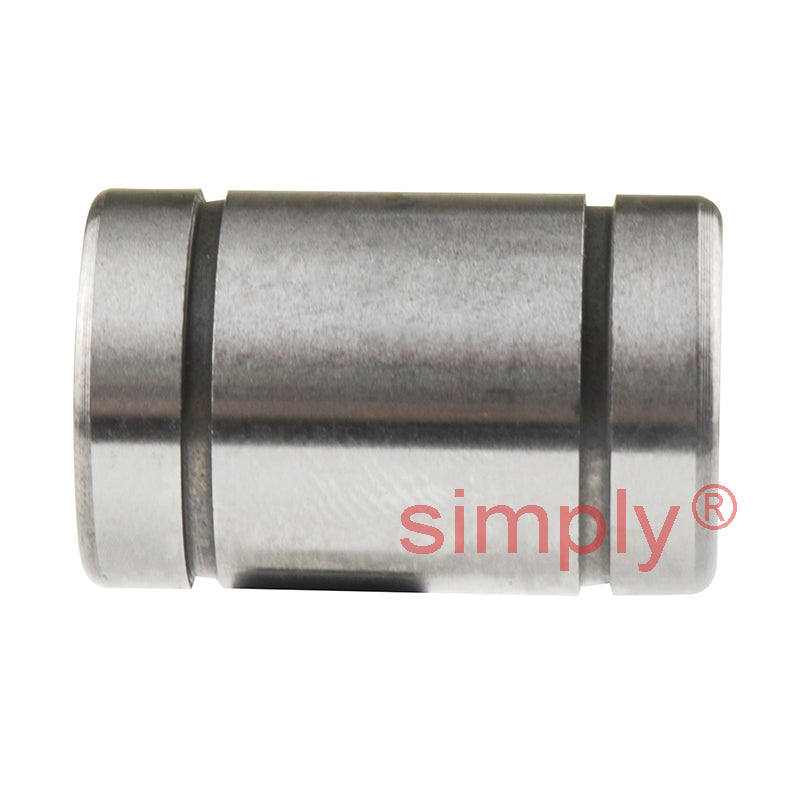

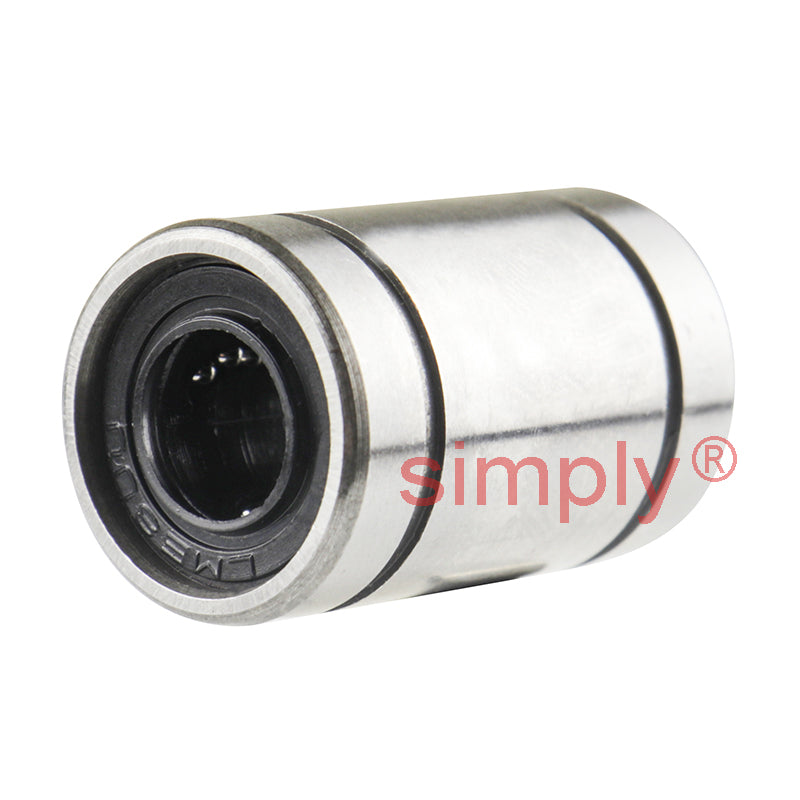

LME8UU Closed Linear Ball Bushing with Rubber Seals 8x16x25mm

LME8UU Closed Linear Ball Bushing with Rubber Seals 8x16x25mm
$12.28 ex VAT
$12.28 ex VAT
Sale Sold out

Equivalent to: KB8GUU MAM08WW LBE8UU

In stock

Price Break
3+ $8.23
5+ $7.76
10+ $7.67
15+ $7.58
20+ $7.49
30+ $7.39
40+ $6.93
50+ $6.84
60+ $6.75
75+ $6.65
100+ $6.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
25mm
Technical
Inside Diameter dr 8mm Tol +8 to - 0µm
Outside Diameter D 16mm Tol + 0 to - 200µm
Length L 25mm Tol + 0 to - 200µm
W 1.1mm
D1 15.2mm
B 16.5mm
Eccentricity 12µm
Dynamic load C 14 kgf
Static load C<sub>o</sub> 26 kgf
Weight 20 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
