• SKF LM104949/911/Q Imperial Taper Roller Bearing 2x3.25x0.85 inches
1 1

SKU: LM104949/911/Q-SKF

SKF LM104949/911/Q Imperial Taper Roller Bearing 2x3.25x0.85 inches

SKF LM104949/911/Q Imperial Taper Roller Bearing 2x3.25x0.85 inches
$58.08 ex VAT
$58.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $38.90
19+ $36.72
29+ $36.28
39+ $35.84
49+ $35.41
74+ $34.97
99+ $32.78
199+ $32.35
249+ $31.91
499+ $31.47
999+ $30.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

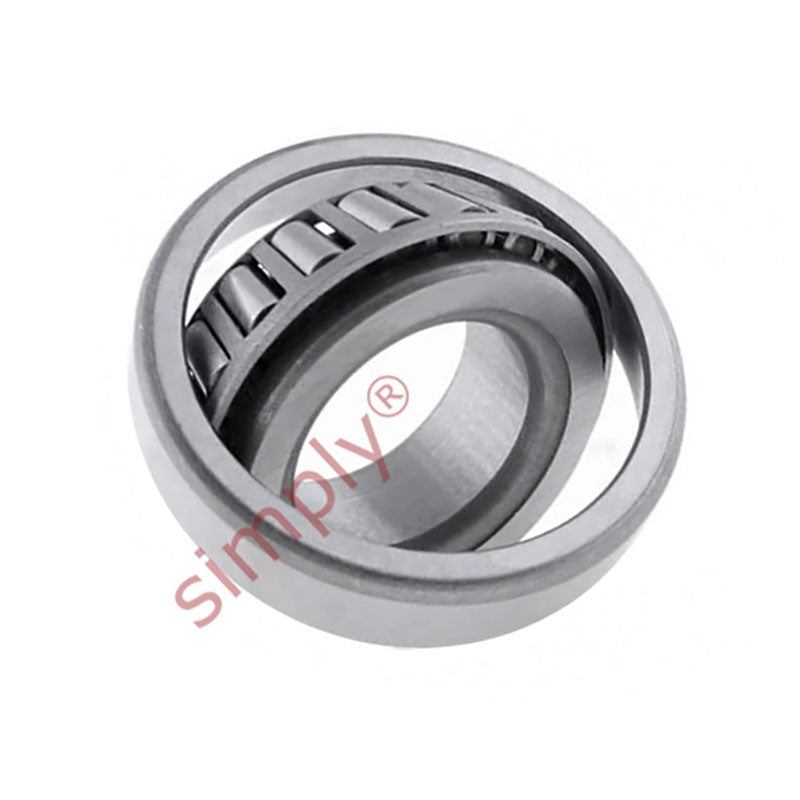

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
82.55mm = 3.25 (3-1/4) inch
Width:
21.59mm = 0.85 inch
Seals / Shields:
None
Technical
d 50.8mm
D 82.55mm
T 21.59mm
Dynamic load 72.1 kN
Static load 100 kN
Fatigue load limit Pu 11 kN
Reference speed 6000 rpm
Limiting speed 8500 rpm
Weight 0.43 kg
d1 65.1mm
B 22.225mm
C 16.51mm
r1r2 min 3.5mm
r3r4 min 1.3mm
a 18mm
da max 57mm
db min 62mm
Da min 72mm
Da max 76mm
Db min 77mm
Ca min 4mm
Cb min 4.5mm
ra max 3mm
rb max 1.3mm
Calculation factor e 0.3
Calculation factor Y 2
Calculation factor Y0 1.1
