SKU: LM287649D/LM287610/LM287610EA-TIM

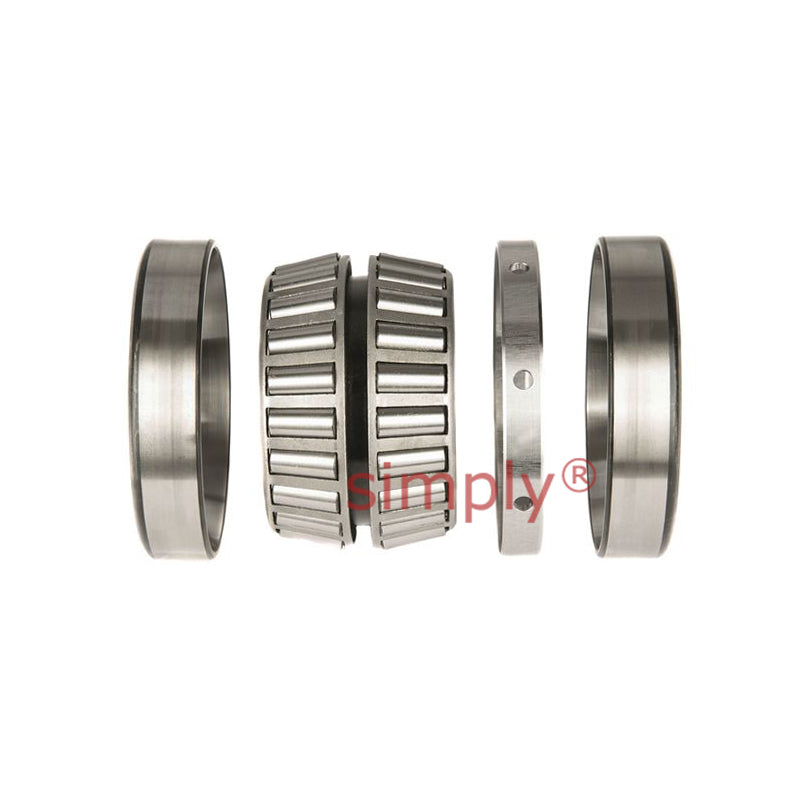

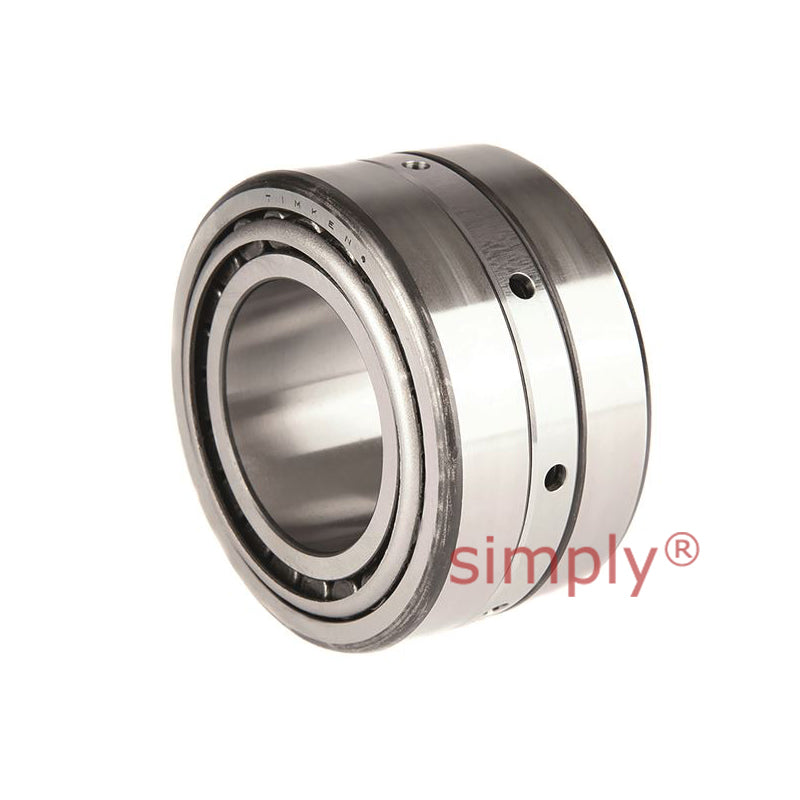

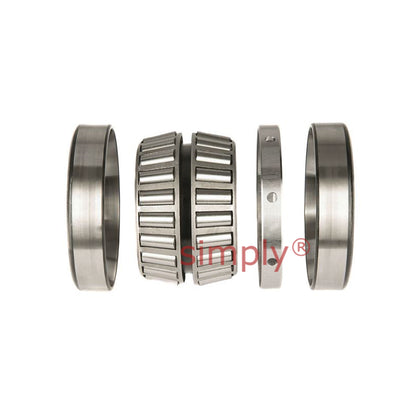

Timken LM287649D/LM287610/LM287610EA TDI Two-Row Taper Roller Bearing 36.9375x50x15.75x15.75 inch
Timken LM287649D/LM287610/LM287610EA TDI Two-Row Taper Roller Bearing 36.9375x50x15.75x15.75 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 938.21mm = 36.937 (36-15/16) inch
- Outside Diameter:
- 1270mm = 50 inch
- Width:
- 400.05mm = 15.75 (15-3/4) inch
Technical
Technical
| d | 938.212mm = 36.9375 inch |
|---|---|
| D | 1270mm = 50 inch |
| T | 400.05mm = 15.75 inch |
| C | 400.05mm = 15.75 inch |
| Dynamic (1) C1 | 15600000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 2320000N |
| Dynamic (2) Ca90 | 1320000N |
| Dynamic (2) C90(2) | 4040000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R (3) | 4.8mm = 0.19 inch |
| Shaft backing shoulder diameter da | 990mm = 38.98 inch |
| Housing max shaft fillet radius r (3) | 12.7mm = 0.5 inch |
| Housing backing shoulder diameter Db | 1190mm = 46.85 inch |
| G1 | 37200 |
| G2 | 1610 |
| Cg | 0.4283 |
