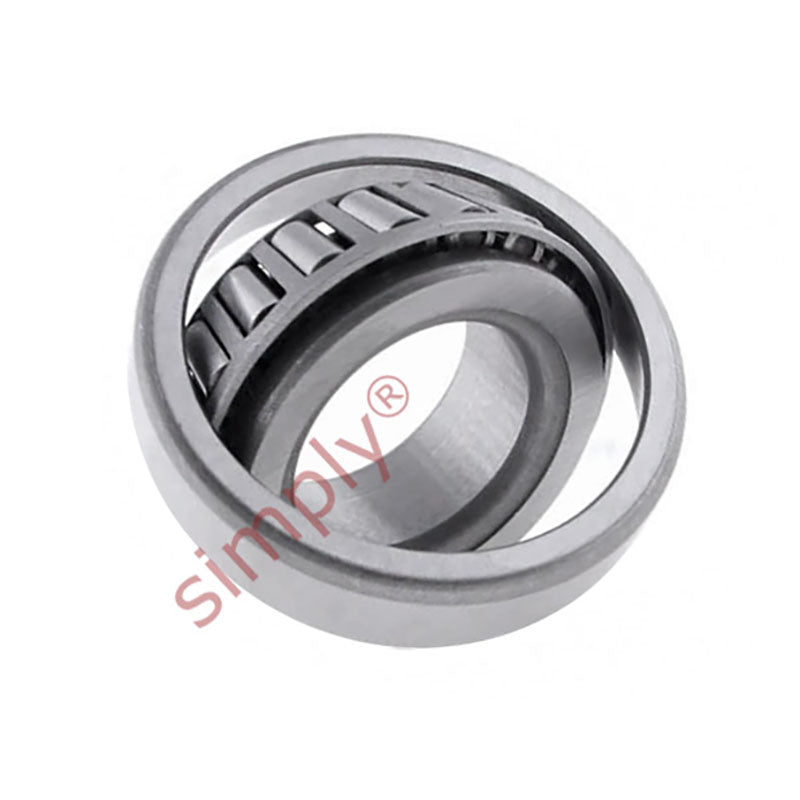

• SKF LM300849/811/Q Imperial Taper Roller Bearing 1.6137x2.6762x0.689 inches
1 1

SKU: LM300849/811/Q-SKF

SKF LM300849/811/Q Imperial Taper Roller Bearing 1.6137x2.6762x0.689 inches

SKF LM300849/811/Q Imperial Taper Roller Bearing 1.6137x2.6762x0.689 inches
$41.89 ex VAT
$41.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $28.06
19+ $26.48
29+ $26.17
39+ $25.85
49+ $25.54
74+ $25.22
99+ $23.65
199+ $23.33
249+ $23.02
499+ $22.70
999+ $22.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
40.99mm = 1.614 inch
Outside Diameter:
67.98mm = 2.676 inch
Width:
17.5mm = 0.689 inch
Seals / Shields:
None
Technical
d 40.988mm
D 67.975mm
T 17.5mm
Dynamic load 44 kN
Static load 58.5 kN
Fatigue load limit Pu 6.3 kN
Reference speed 7000 rpm
Limiting speed 10000 rpm
Weight 0.24 kg
d1 54.3mm
B 18mm
C 13.5mm
r1r2 min 3.6mm
r3r4 min 1.5mm
a 14mm
da max 48mm
db min 48.5mm
Da min 60mm
Da max 60mm
Db min 64mm
Ca min 3mm
Cb min 4mm
ra max 3.5mm
rb max 1.5mm
Calculation factor e 0.35
Calculation factor Y 1.7
Calculation factor Y0 0.9
