SKU: LM520349/LM520310D/LM520349XA-TIM

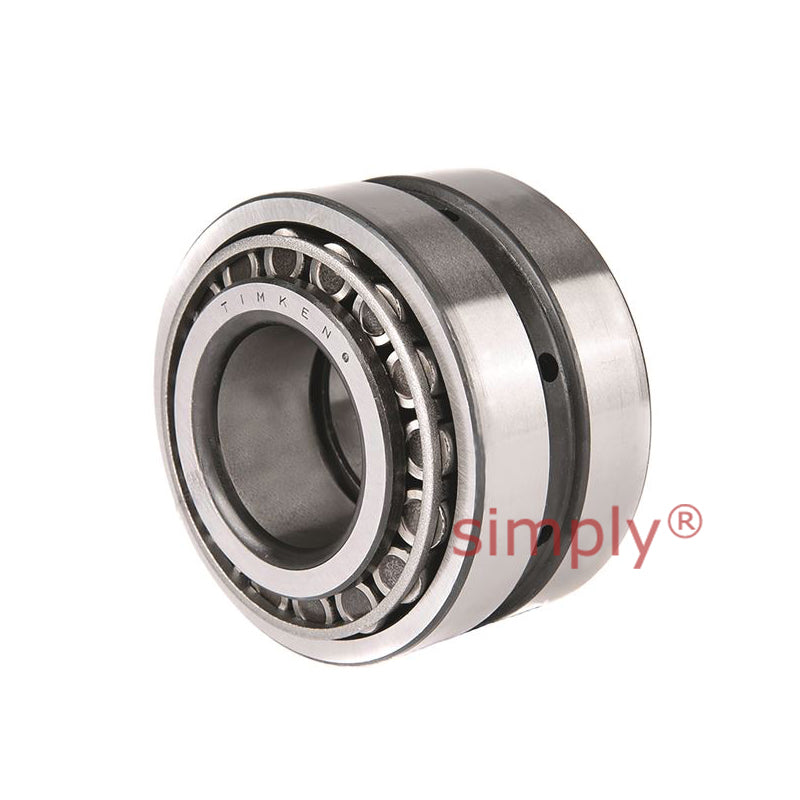

Timken LM520349/LM520310D/LM520349XA TDO Double Outer Race Taper Roller Bearing 4x5.75x1.9374x1.5313 inch
Timken LM520349/LM520310D/LM520349XA TDO Double Outer Race Taper Roller Bearing 4x5.75x1.9374x1.5313 inch
Out of stock
Description
Description

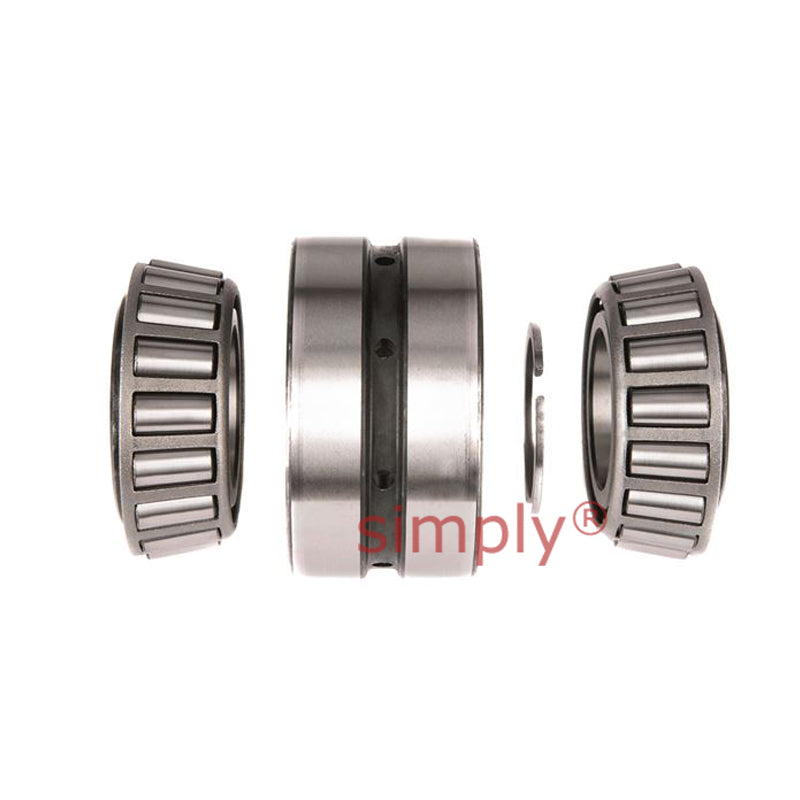

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 101.60mm = 4 inch
- Outside Diameter:
- 146.05mm = 5.75 inch
- Width:
- 49.21mm = 1.9374 inch
Technical
Technical
| d | 101.6mm = 4 inch |
|---|---|
| D | 146.05mm = 5.75 inch |
| T | 49.21mm = 1.9374 inch |
| C | 38.895mm = 1.5313 inch |
| Dynamic (1) C1 | 219000N |
| Factors (5) e | 0.39 |
| Factors (5) Y1 | 1.74 |
| Factors (5) Y2 | 2.59 |
| Dynamic (2) C90 | 32500N |
| Dynamic (2) Ca90 | 21600N |
| Dynamic (2) C90(2) | 56700N |
| Factors (5) K | 1.51 |
| Shaft max shaft fillet radius R(3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter db | 110mm = 4.33 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 140mm = 5.51 inch |
| G1 | 121 |
| G2 | 58.7 |
| Cg | 0.1249 |
