SKU: LMB.10.UU.EU

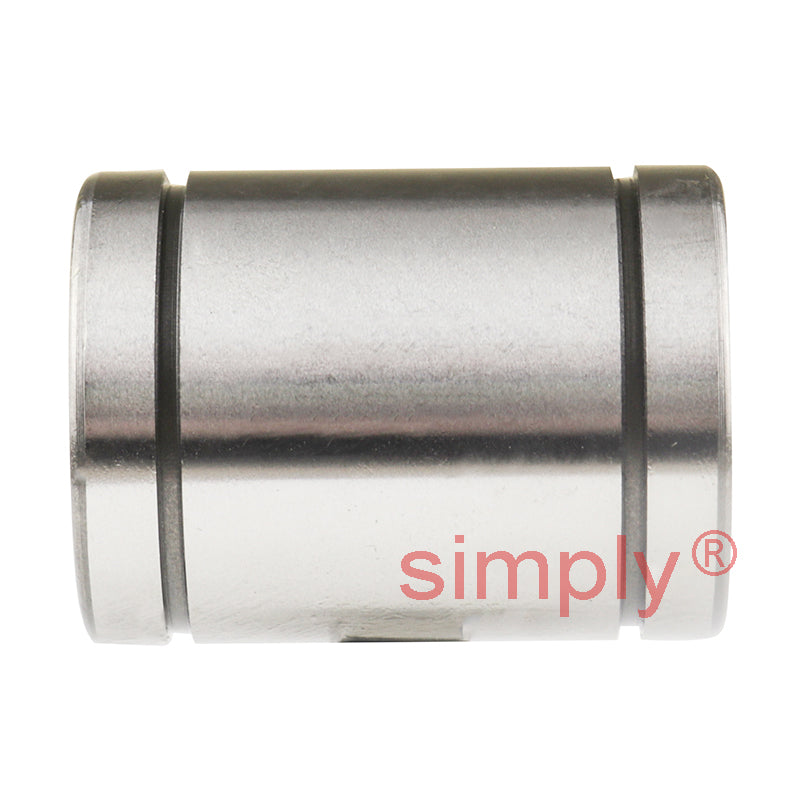

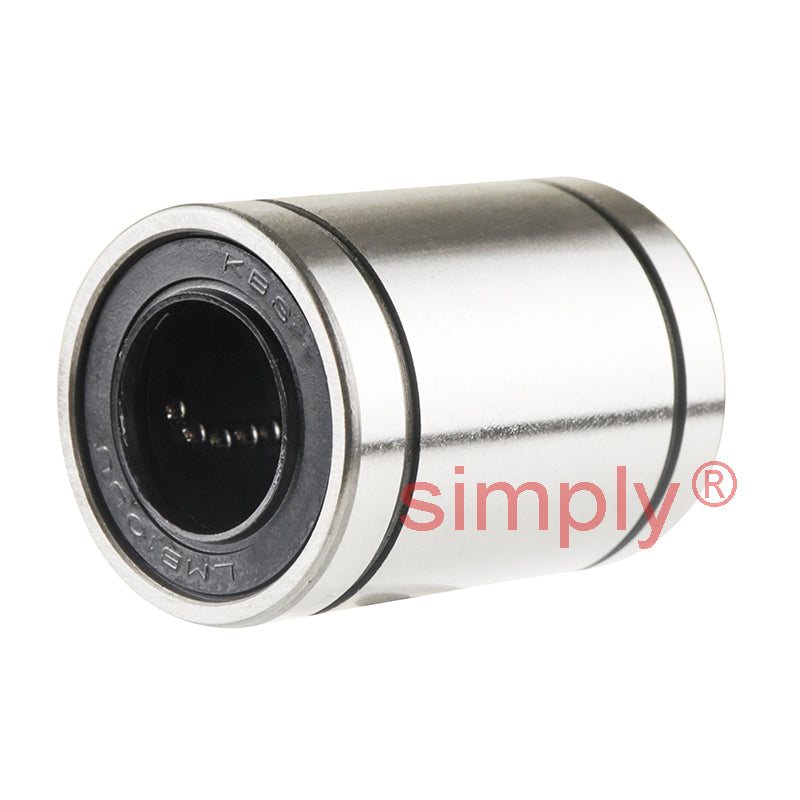

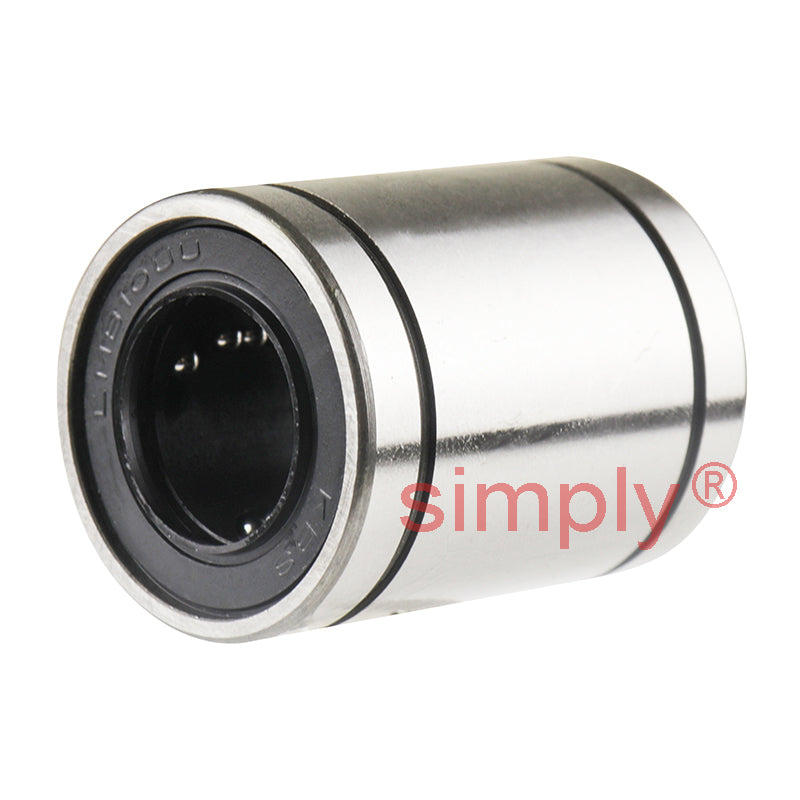

LMB10UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.625x1.125x1.5 inch

LMB10UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.625x1.125x1.5 inch
$16.81 ex VAT
$16.81 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.26
5+ $10.63
10+ $10.50
15+ $10.37
20+ $10.25
30+ $10.12
40+ $9.49
50+ $9.36
60+ $9.23
75+ $9.11
100+ $8.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Outside Diameter:
28.58mm = 1.125 (1-1/8) inch
Length:
38.1mm = 1.5 (1-1/2) inch
Technical
Inside Diameter dr 0.625 inch Tol - 0 to + 6µm
Outside Diameter D 1.125 inch Tol - 0 to + 13µm
Length L 1.5 inch Tol - 0 to + 200µm
W 0.0559 inch
D1 0.0559 inch
B 1.1039 inch
Eccentricity 8 to 12µm
Dynamic load C 79 kgf
Static load C<sub>o</sub> 120 kgf
Weight 69 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
