SKU: LMB.16.UU.EU

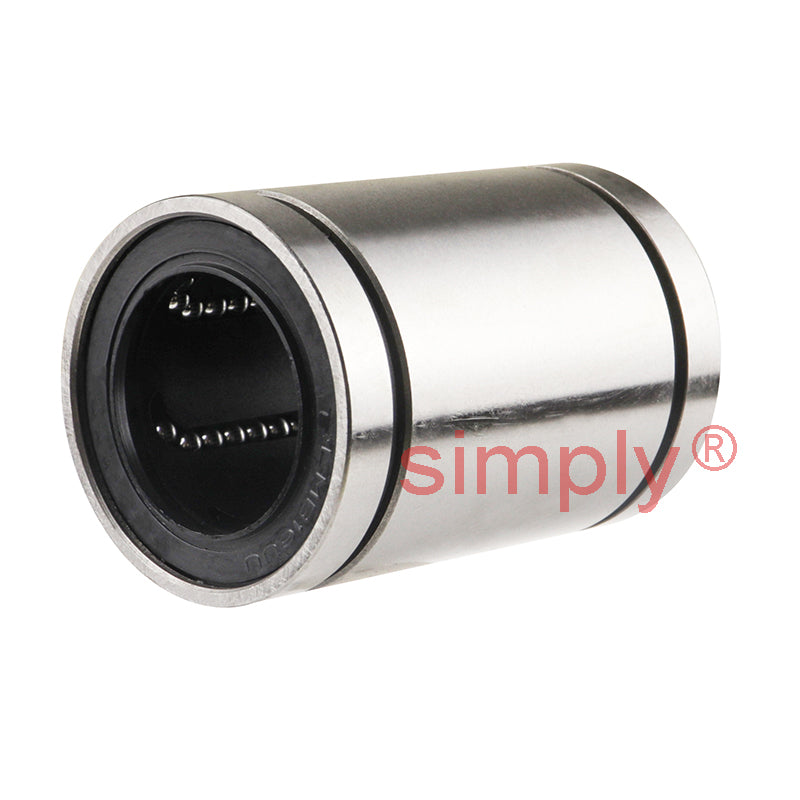

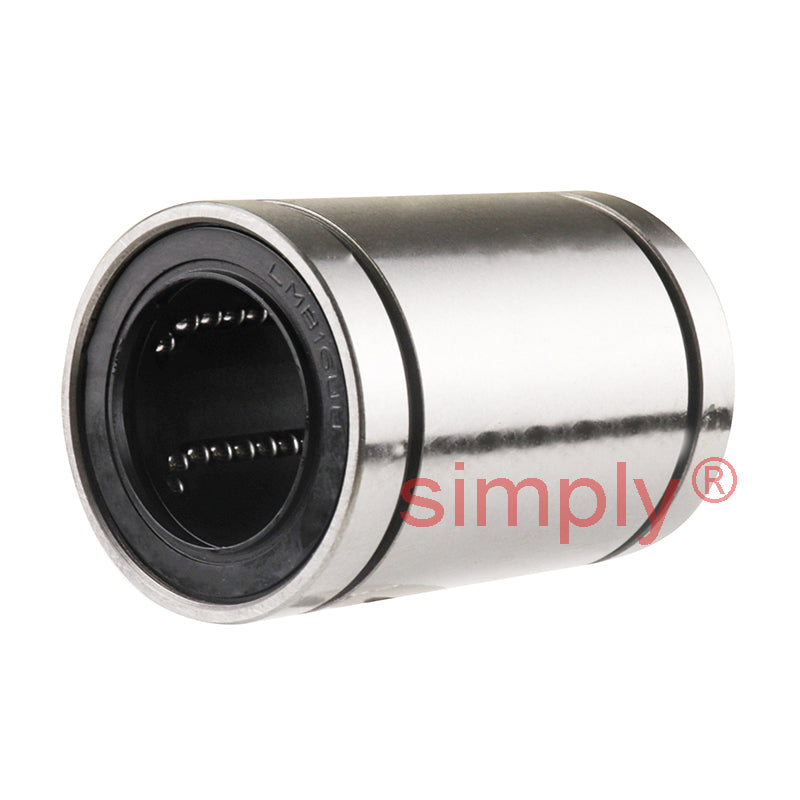

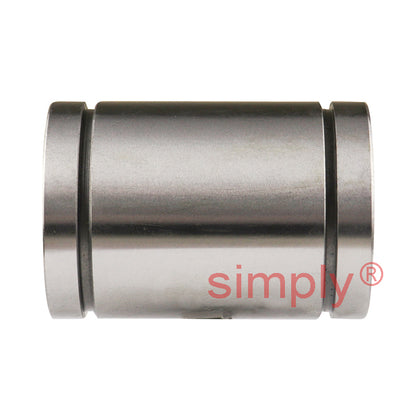

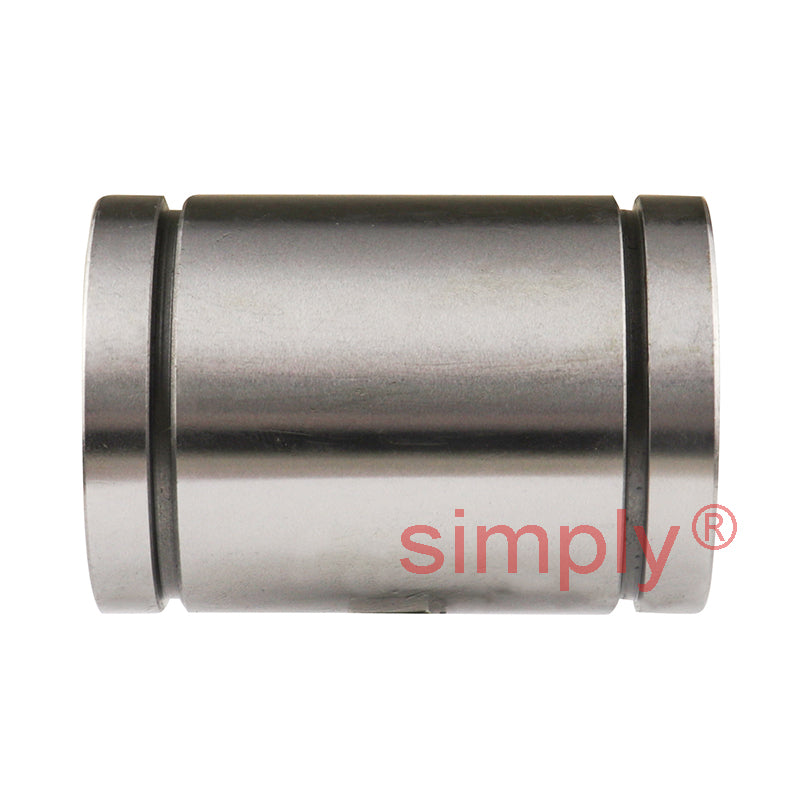

LMB16UU Imperial Closed Linear Ball Bushing with Rubber Seals 1x1.563x2.25 inch - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
LMB Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Length:
- 57.15mm = 2.25 (2-1/4) inch
Technical
| Inside Diameter dr | 1 inch Tol - 0 to + 7µm |
|---|---|
| Outside Diameter D | 1.563 inch Tol - 0 to + 16µm |
| Length L | 2.25 inch Tol - 0 to + 300µm |
| W | 0.0679 inch |
| D1 | 0.0679 inch |
| B | 1.7547 inch |
| Eccentricity | 10 to 15µm |
| Dynamic load C | 100 kgf |
| Static load C<sub>o</sub> | 160 kgf |
| Weight | 220 g |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
