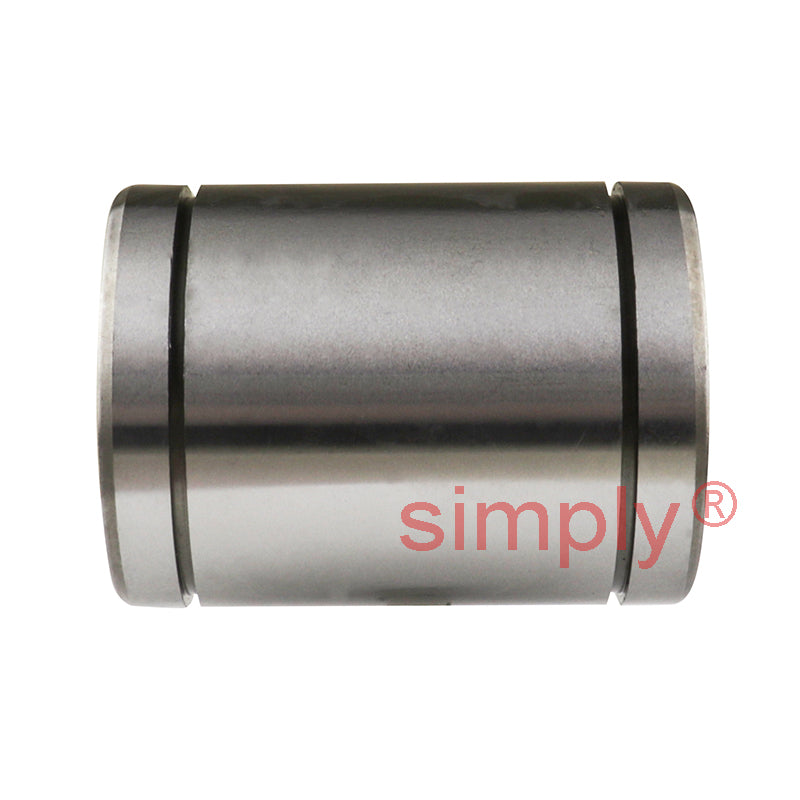

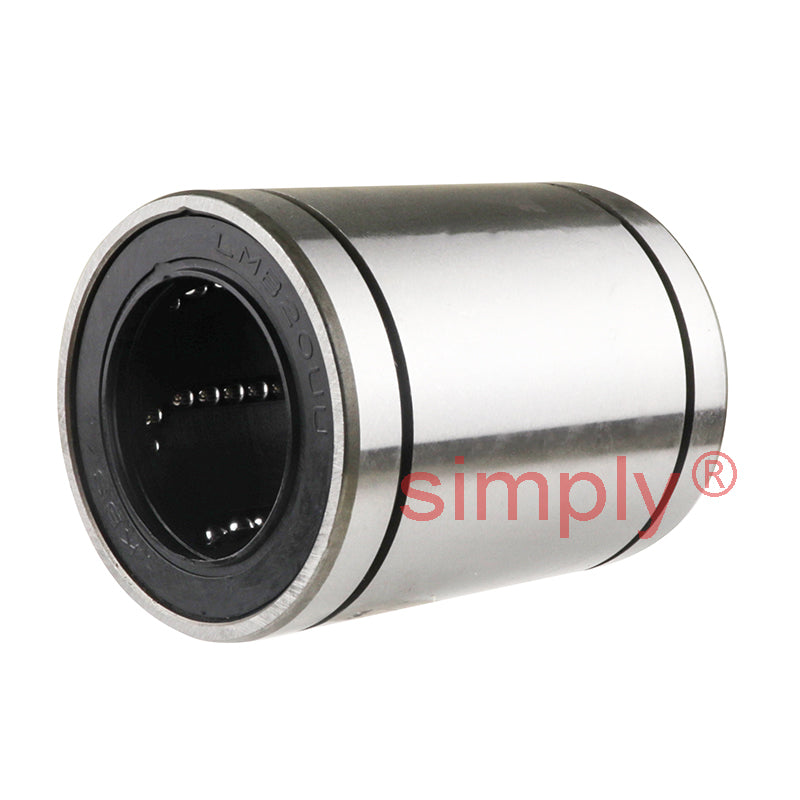

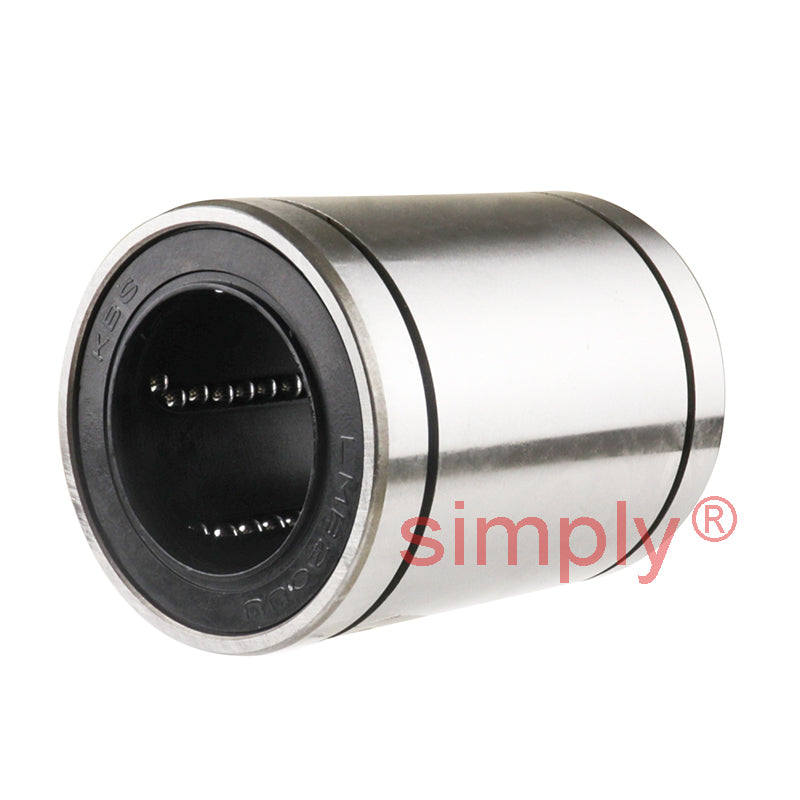

• LMB20UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.25x2x2.625 inch
  • LMB20UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.25x2x2.625 inch
  • LMB20UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.25x2x2.625 inch
1 3

SKU: LMB.20.UU.EU

LMB20UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.25x2x2.625 inch

LMB20UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.25x2x2.625 inch
$37.75 ex VAT
$37.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $25.29
5+ $23.87
10+ $23.58
15+ $23.30
20+ $23.02
30+ $22.73
40+ $21.31
50+ $21.03
60+ $20.74
75+ $20.46
100+ $19.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
50.8mm = 2 inch
Length:
66.68mm = 2.625 (2-5/8) inch
Technical
Inside Diameter dr 1.25 inch Tol - 0 to + 8µm
Outside Diameter D 2 inch Tol - 0 to + 19µm
Length L 2.625 inch Tol - 0 to + 300µm
W 0.0679 inch
D1 0.0679 inch
B 2.0047 inch
Eccentricity 12 to 20µm
Dynamic load C 160 kgf
Static load C<sub>o</sub> 279 kgf
Weight 465 g
Number of ball rows 6
Tolerances dr & D Apply to closed type only
