SKU: LMB.6.AJ.EU

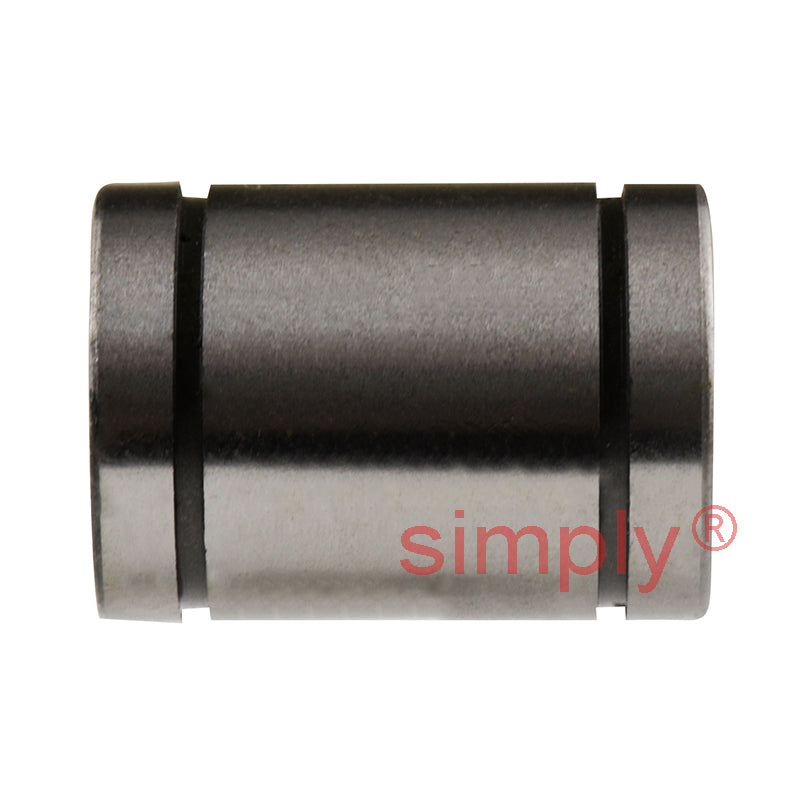

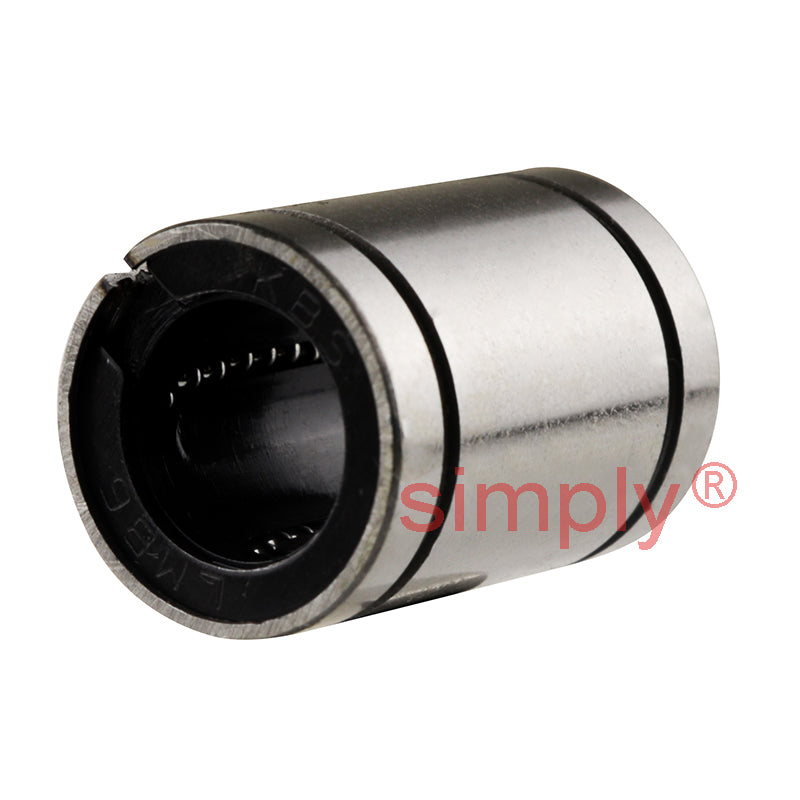

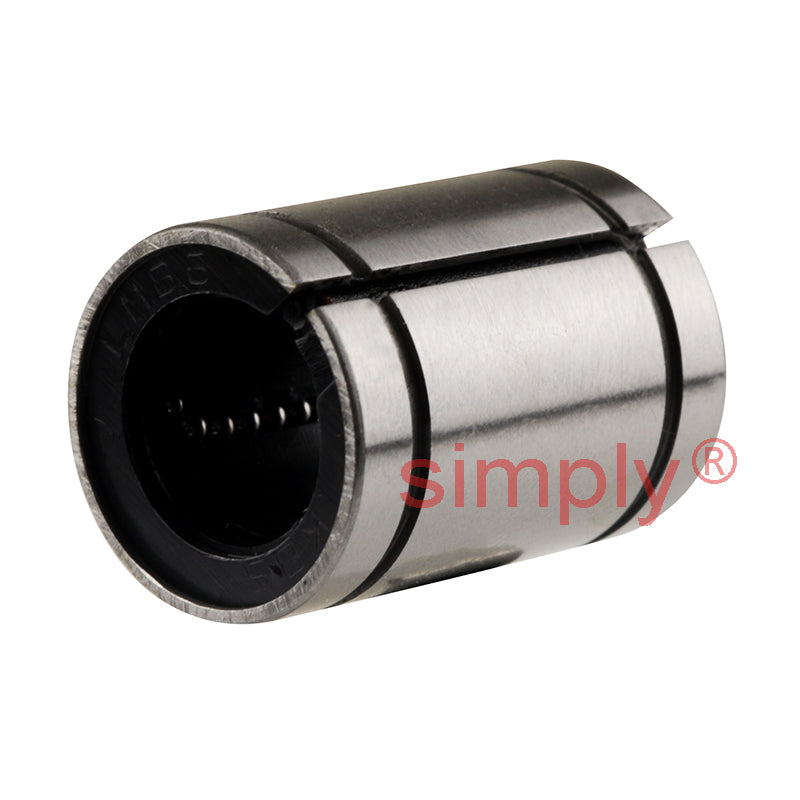

LMB6AJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.375x0.625x0.875 inch
LMB6AJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.375x0.625x0.875 inch
Regular price
$22.30
ex VAT
Regular price
Sale price
$22.30
ex VAT
In stock
Price Break
3+
$14.94
5+
$14.10
10+
$13.93
15+
$13.76
20+
$13.59
30+
$13.43
40+
$12.59
50+
$12.42
60+
$12.25
75+
$12.08
100+
$11.75
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 9.53mm = 0.375 (3/8) inch
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Length:
- 22.23mm = 0.875 (7/8) inch
Technical
Technical
| Inside Diameter dr | 0.375 inch Tol - 0 to + 6µm |
|---|---|
| Outside Diameter D | 0.625 inch Tol 0.625µm |
| Length L | 0.875 inch Tol - 0 to + 200µm |
| W | 0.039 inch |
| D1 | 0.588 inch |
| B | 0.6358 inch |
| h1 | - inch |
| Eccentricity | 8 to 12µm |
| Dynamic load C | 23 kgf |
| Static load C<sub>o</sub> | 2 kgf |
| Weight | 15 g |
| Number of ball rows | - |
| Tolerances dr & D | Apply to closed type only |
