SKU: LMB.64.UU.EU

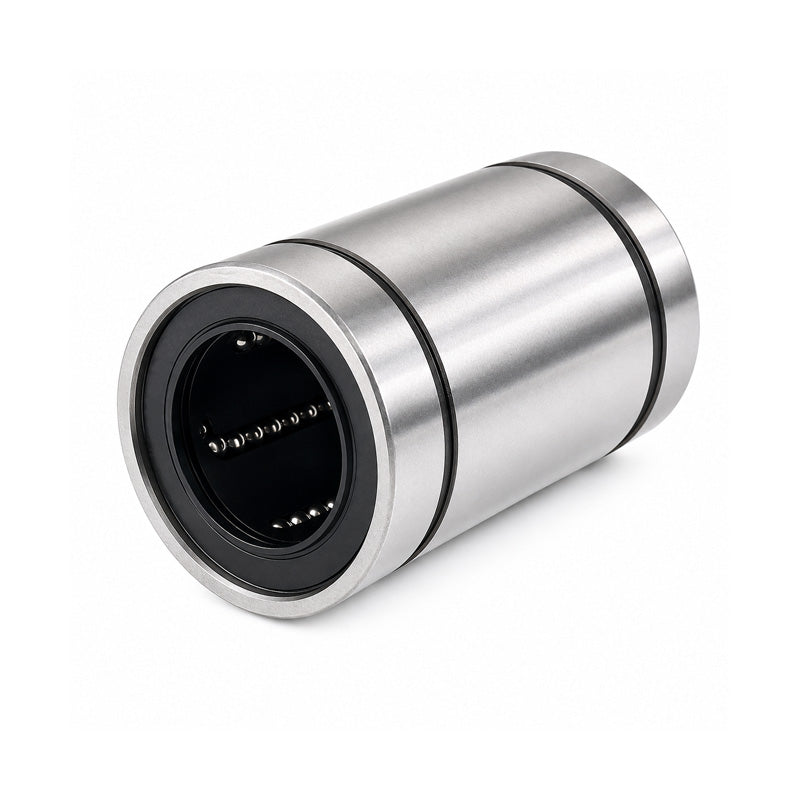

LMB64UU Imperial Closed Linear Ball Bushing with Rubber Seals 4x6x8 inch
Out of stock
Share this product
Description
LMB Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Length:
- 203.2mm = 8 inch
Technical
| Inside Diameter dr | 4 inch Tol - 0 to + 10µm |
|---|---|
| Outside Diameter D | 6 inch Tol - 0 to + 25µm |
| Length L | 8 inch Tol - 0 to + 400µm |
| W | 0.1389 inch |
| D1 | 0.1389 inch |
| B | 6.258 inch |
| Eccentricity | -µm |
| Dynamic load C | - kgf |
| Static load C<sub>o</sub> | - kgf |
| Weight | 10200 g |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
