SKU: LMB.8.UU.AJ.EU

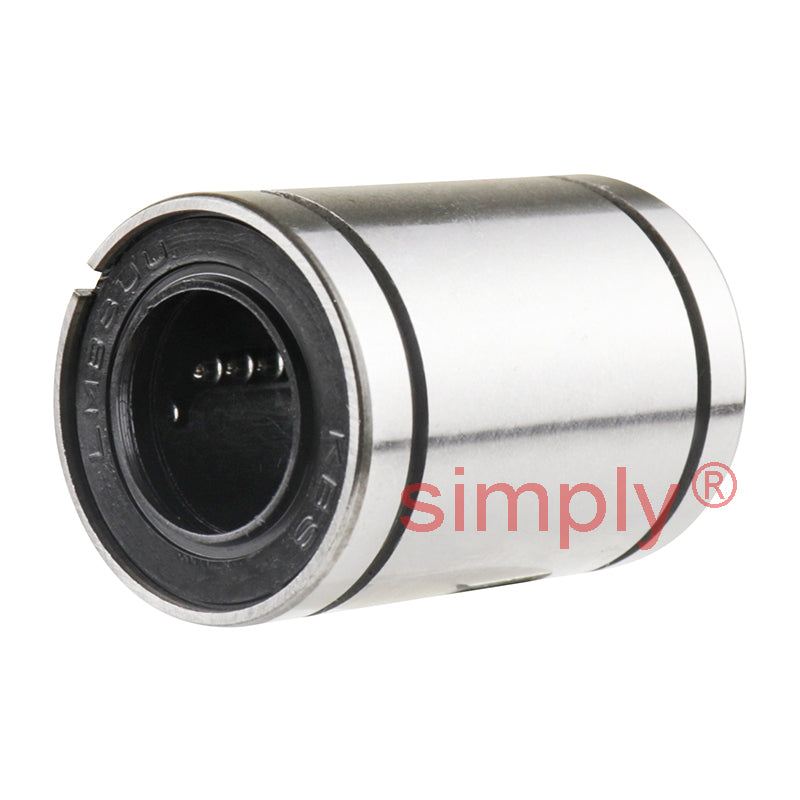

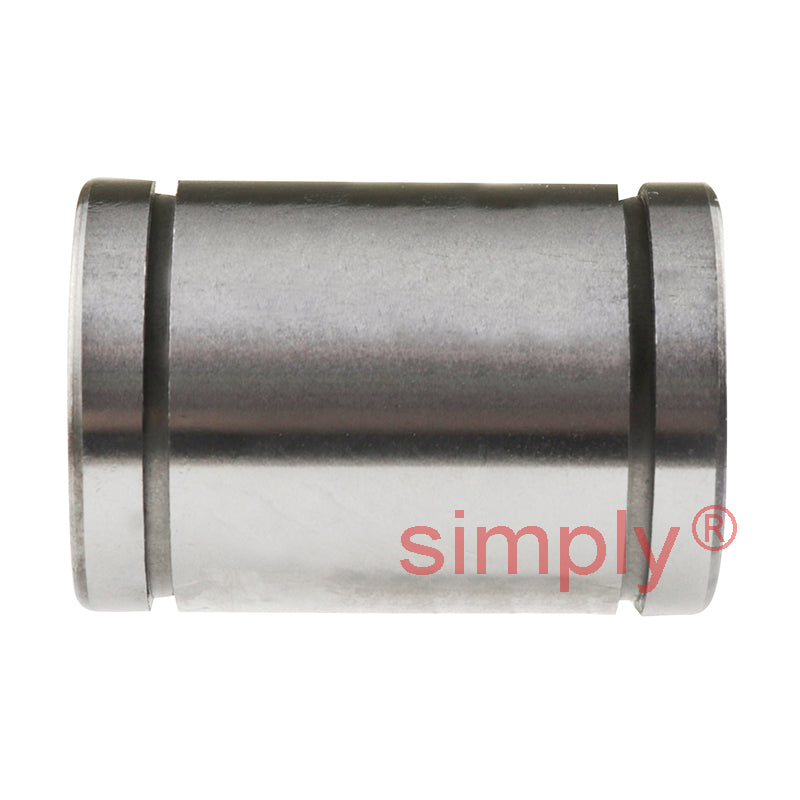

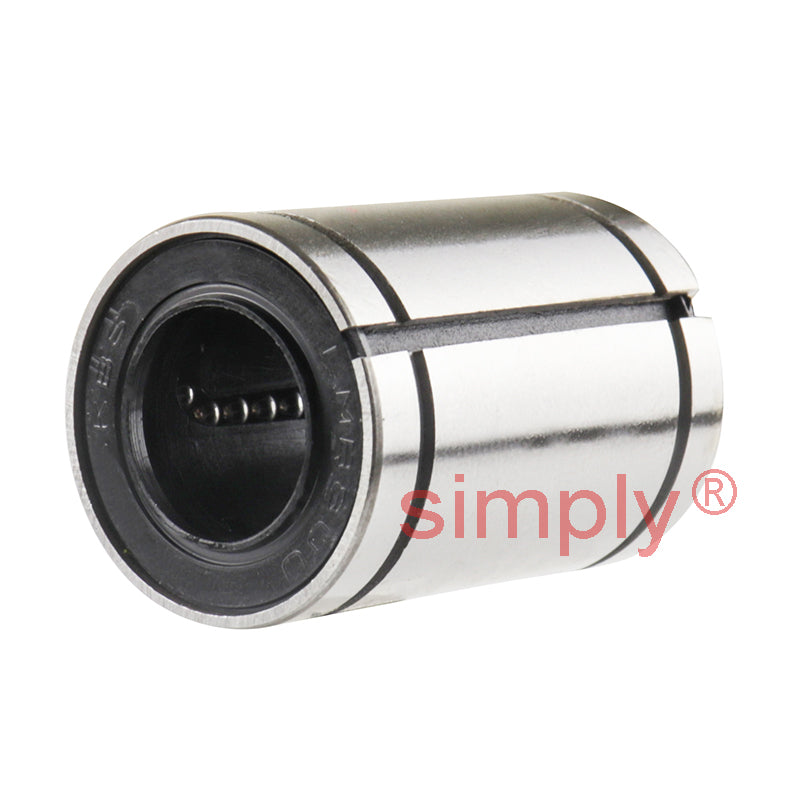

LMB8UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch

LMB8UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch
$17.35 ex VAT
$17.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.62
5+ $10.97
10+ $10.84
15+ $10.71
20+ $10.57
30+ $10.44
40+ $9.79
50+ $9.66
60+ $9.53
75+ $9.40
100+ $9.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Outside Diameter:
22.23mm = 0.875 (7/8) inch
Length:
31.75mm = 1.25 (1-1/4) inch
Technical
Inside Diameter dr 0.5 inch Tol - 0 to + 6µm
Outside Diameter D 0.875 inch Tol - 0 to + 13µm
Length L 1.25 inch Tol - 0 to + 200µm
W 0.0459 inch
D1 0.8209 inch
B 0.9625 inch
h 0.006 inch
Eccentricity 8 to 12µm
Dynamic load C 52 kgf
Static load C<sub>o</sub> 80 kgf
Weight 42 g
Number of ball rows 3
Tolerances dr & D Apply to closed type only
