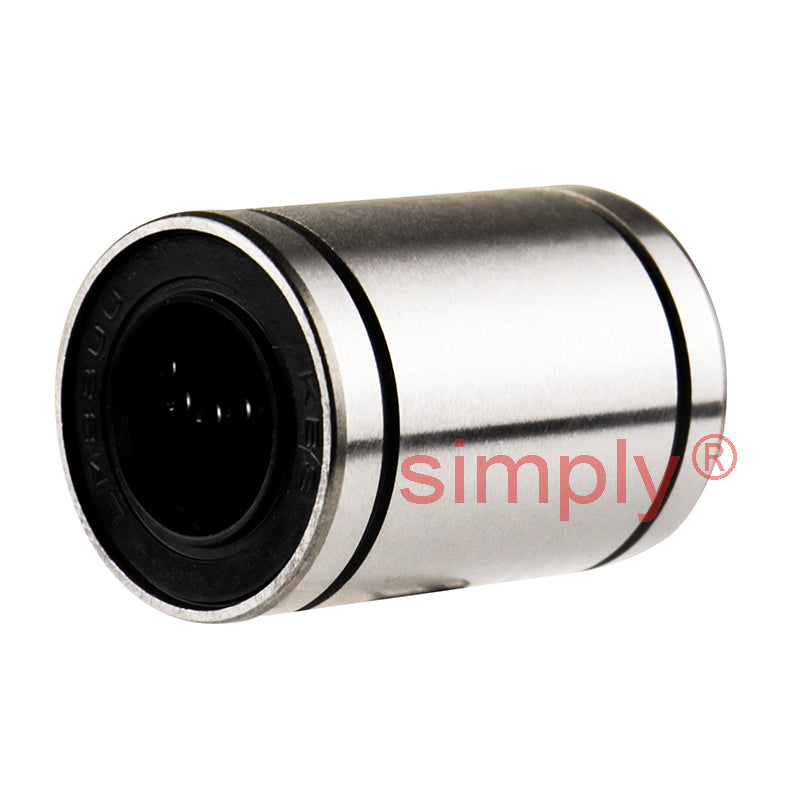

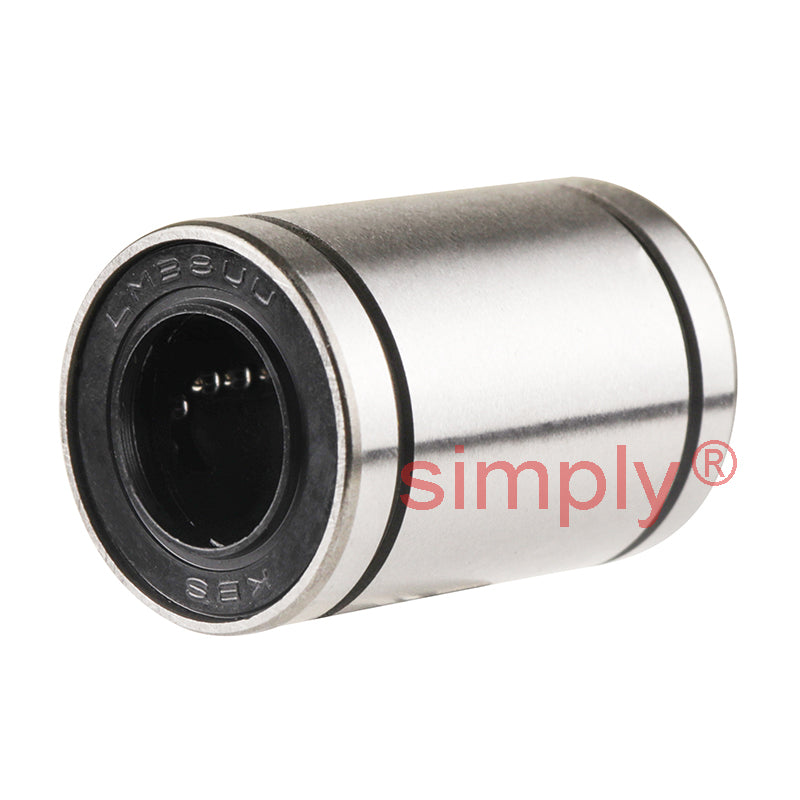

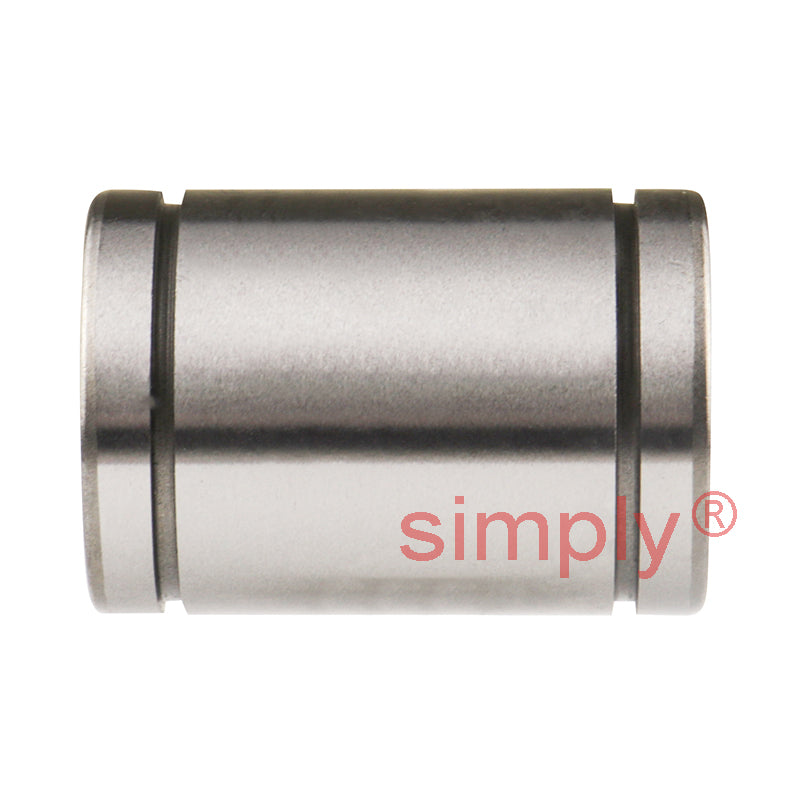

• LMB8UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch
  • LMB8UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch
  • LMB8UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch
1 3

SKU: LMB.8.UU.EU

LMB8UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch

LMB8UU Imperial Closed Linear Ball Bushing with Rubber Seals 0.5x0.875x1.25 inch
$16.16 ex VAT
$16.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $10.82
5+ $10.21
10+ $10.09
15+ $9.97
20+ $9.85
30+ $9.72
40+ $9.12
50+ $9.00
60+ $8.87
75+ $8.75
100+ $8.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Outside Diameter:
22.23mm = 0.875 (7/8) inch
Length:
31.75mm = 1.25 (1-1/4) inch
Technical
Inside Diameter dr 0.5 inch Tol - 0 to + 6µm
Outside Diameter D 0.875 inch Tol - 0 to + 13µm
Length L 1.25 inch Tol - 0 to + 200µm
W 0.0459 inch
D1 0.0459 inch
B 0.9625 inch
Eccentricity 8 to 12µm
Dynamic load C 52 kgf
Static load C<sub>o</sub> 80 kgf
Weight 42 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
