SKU: LME-8UUAJ-EU

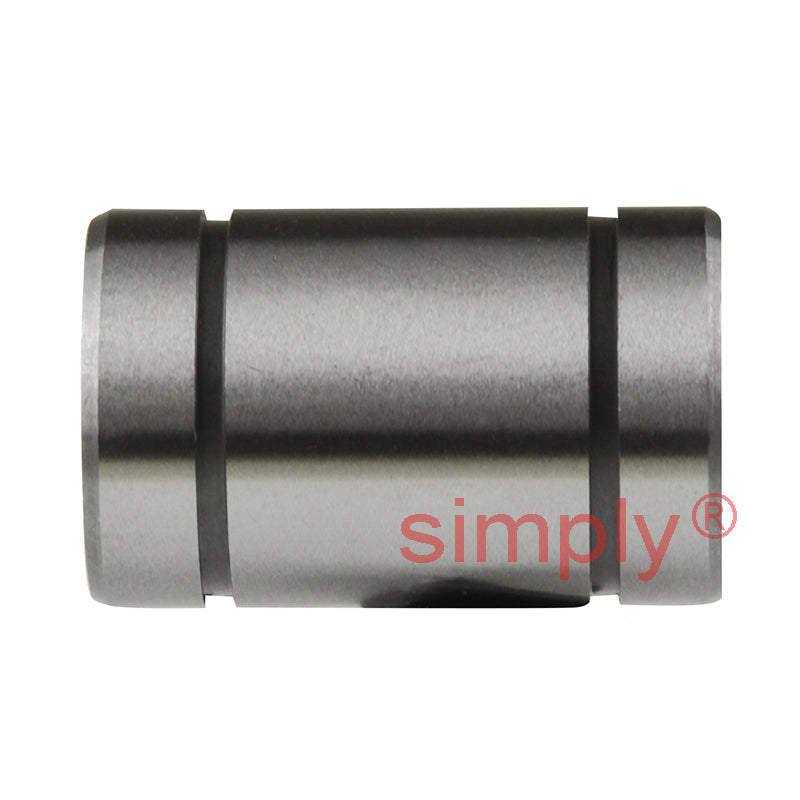

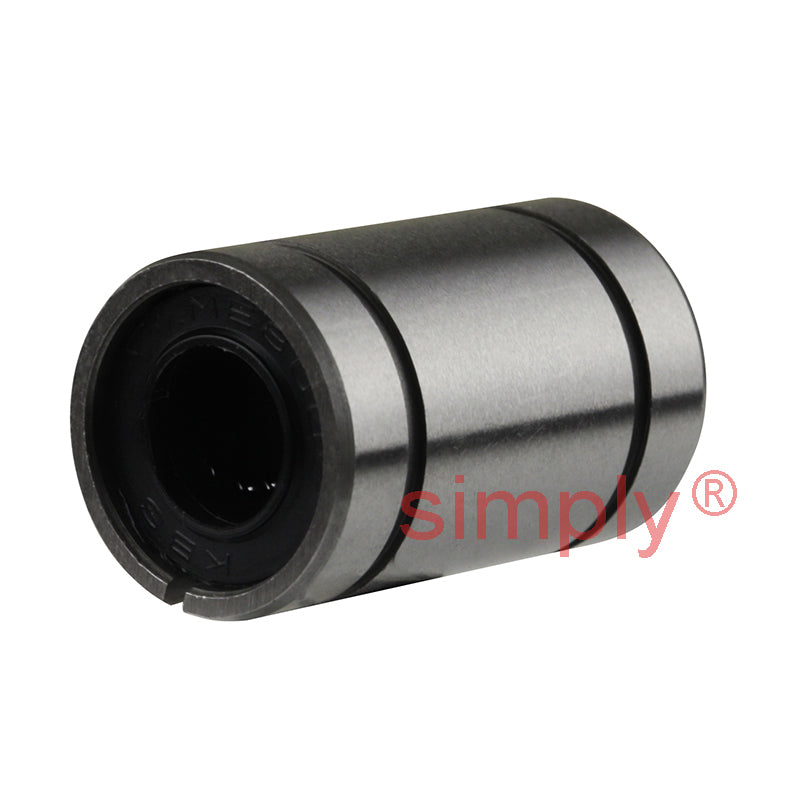

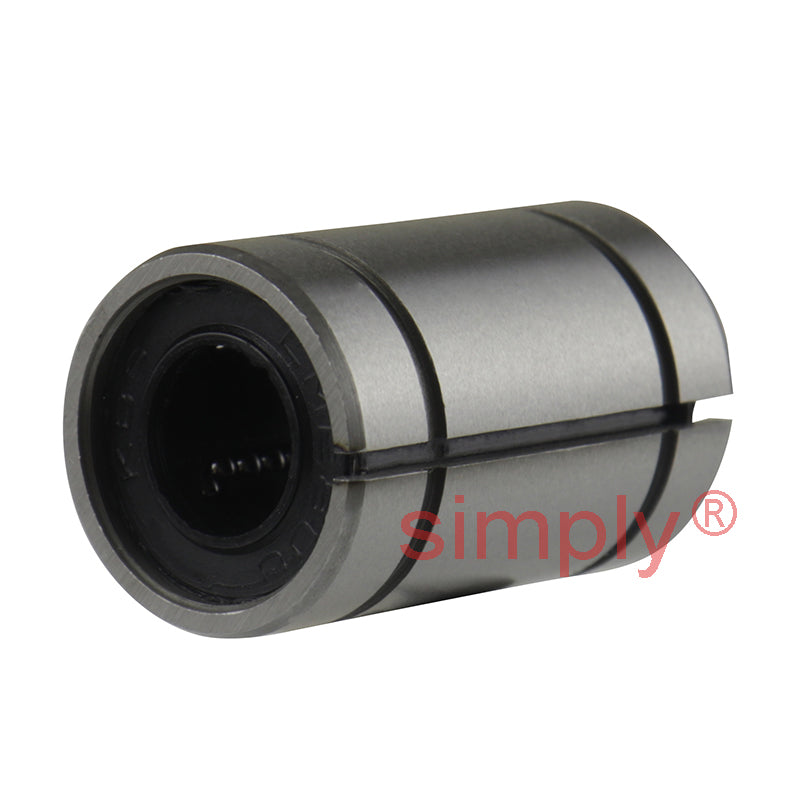

LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm

LME8UUAJ Adjustable Linear Ball Bushing with Rubber Seals 8x16x25mm
$11.37 ex VAT
$11.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $7.62
5+ $7.19
10+ $7.10
15+ $7.02
20+ $6.93
30+ $6.85
40+ $6.42
50+ $6.33
60+ $6.25
75+ $6.16
100+ $5.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
25mm
Technical
Inside Diameter dr 8mm Tol +8 to - 0µm
Outside Diameter D 16mm Tol + 0 to - 8µm
Length L 25mm Tol + 0 to - 200µm
W 1.1mm
D1 15.2mm
B 16.5mm
h -mm
Eccentricity 12µm
Dynamic load C 14 kgf
Static load C<sub>o</sub> 26 kgf
Weight 20 g
Number of ball rows 4
Tolerances dr & D Apply to closed type only
