SKU: LMEF-12-UU-EU

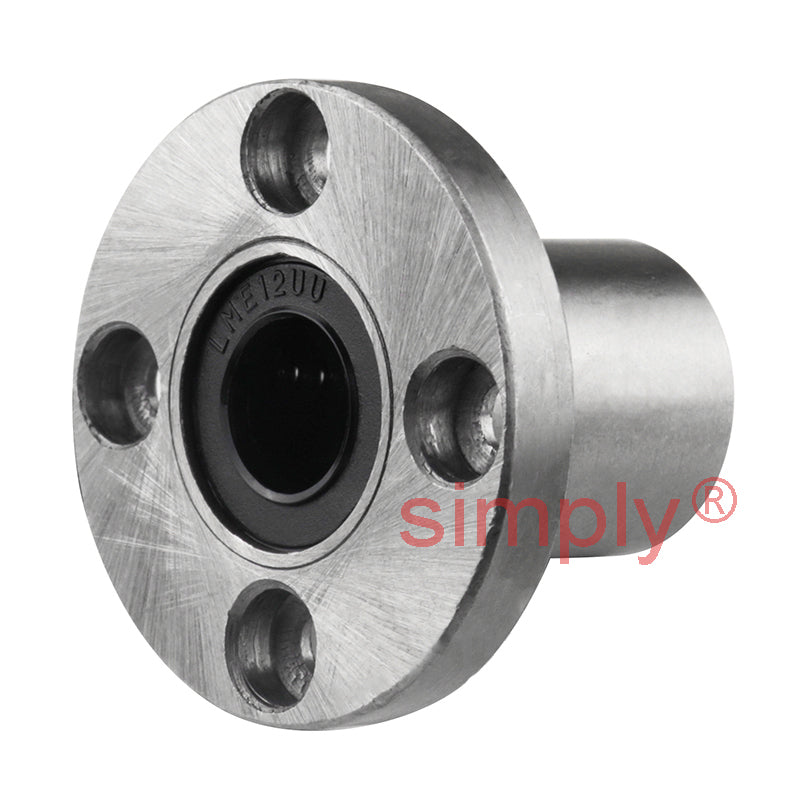

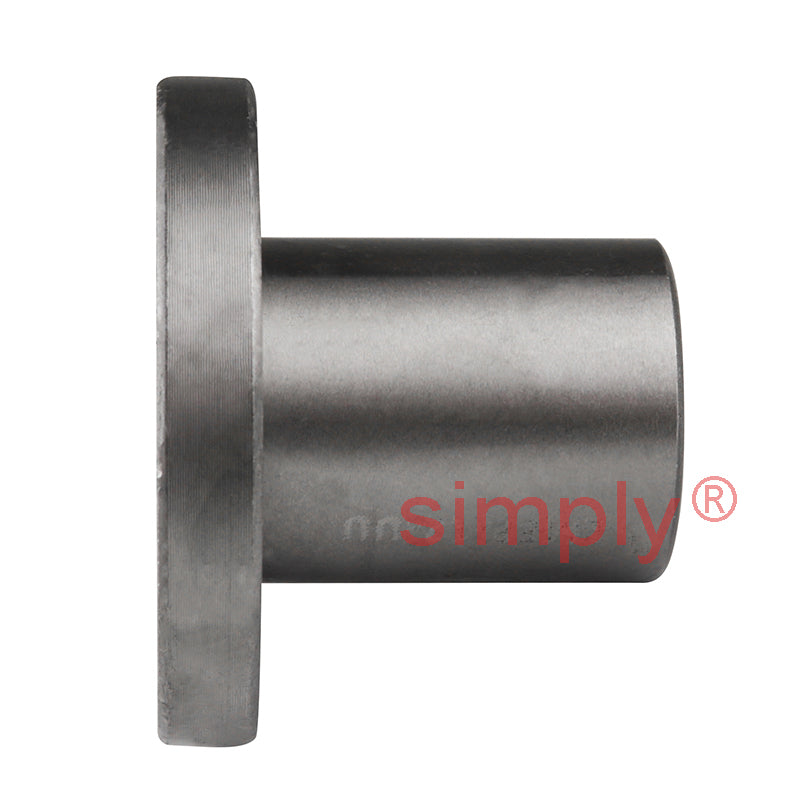

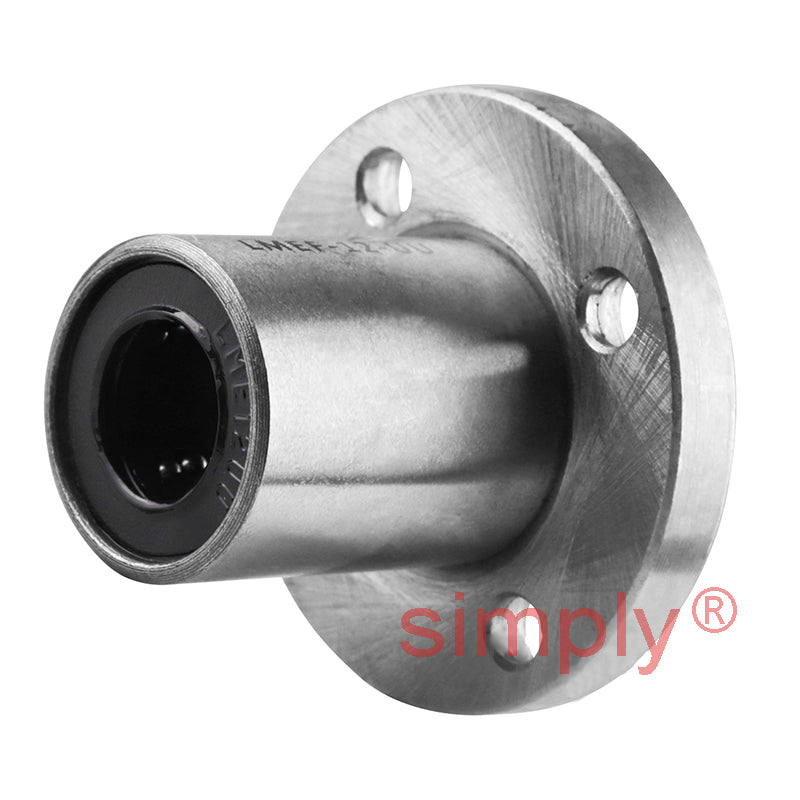

LMEF12UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm

LMEF12UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm
$28.46 ex VAT
$28.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.06
5+ $17.99
9+ $17.78
19+ $17.56
49+ $17.35
74+ $17.14
99+ $16.07
199+ $15.85
249+ $15.64
499+ $15.42
999+ $14.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
32mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 12mm
Bore Clearance +0.008/0mm
D 22mm
D Clearance 0/-0.009mm
L 32mm
L Clearance 0/-0.2mm
B 42mm
B Clearance 0/-0.2mm
H 6mm
PCD 32mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 12mm
Basic Load Rating - Dynamic C 410 N
Basic Load Rating - Static Co 590 N
No of Ball Rows 4
Weight 0.086 kg
