SKU: LMEF-16-L-UU-EU

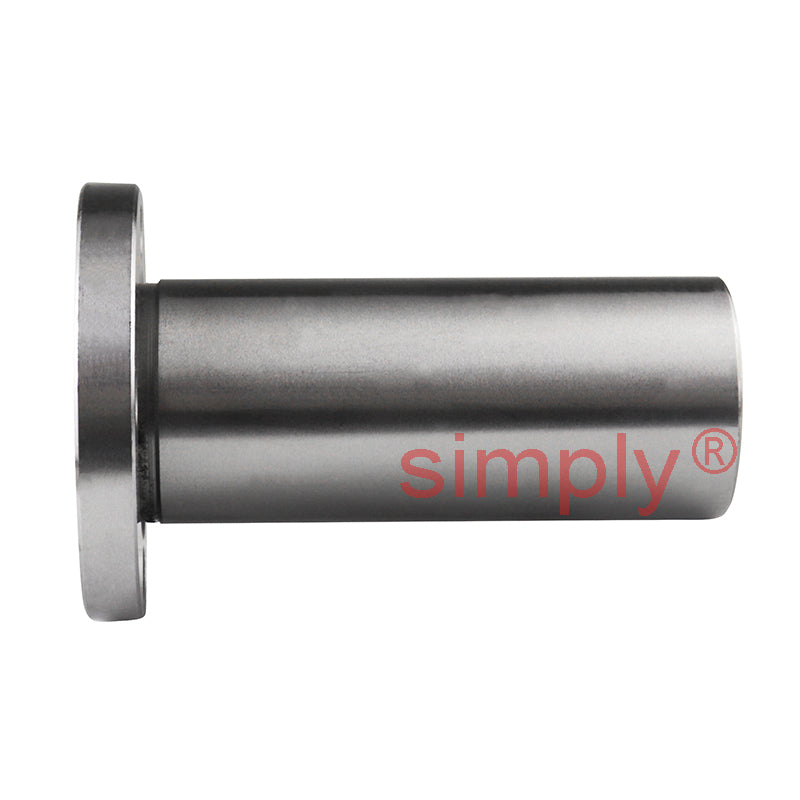

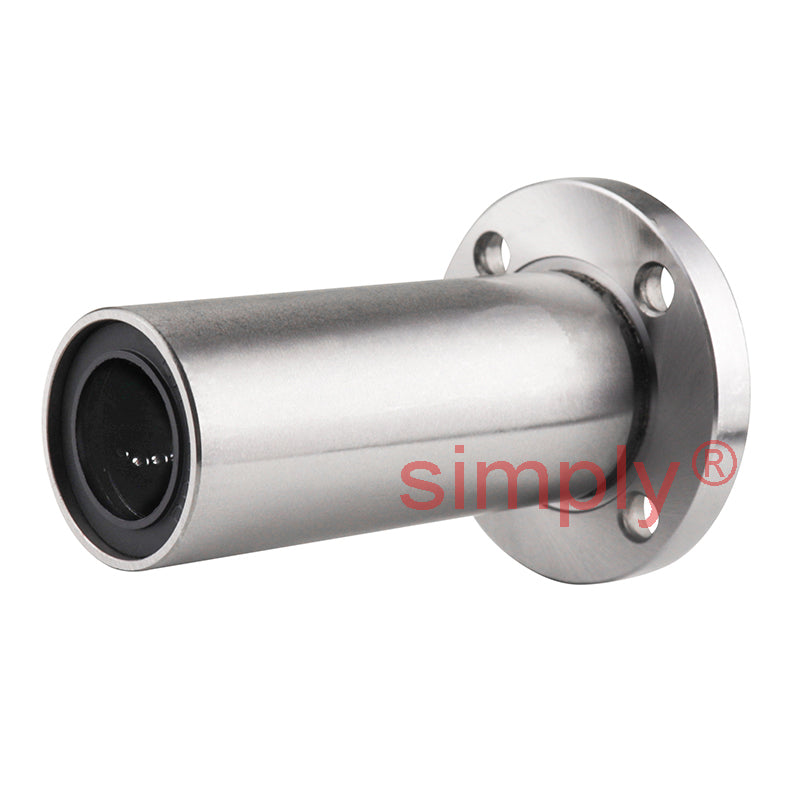

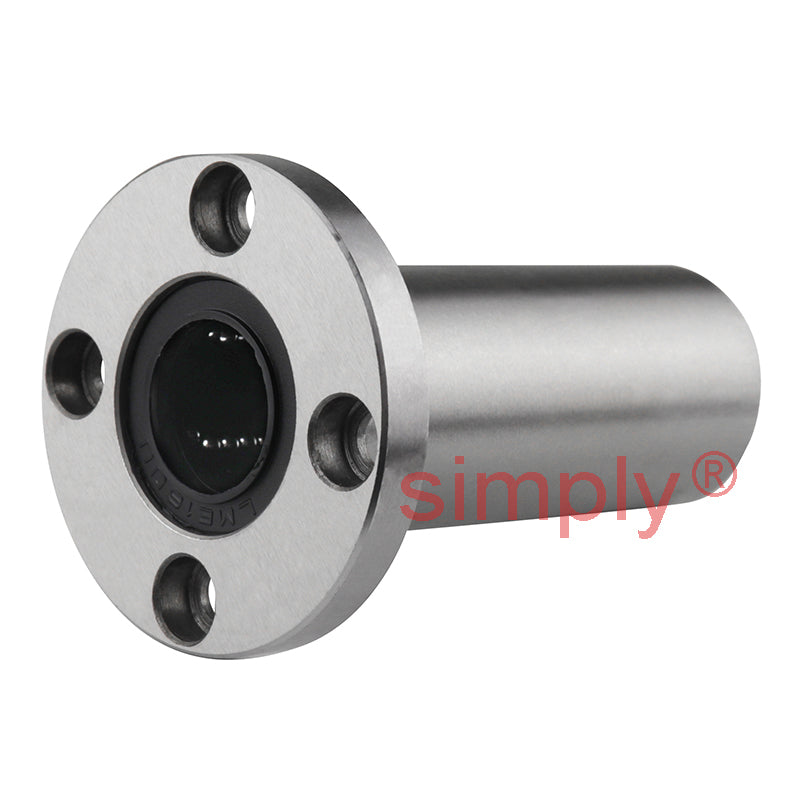

LMEF16LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 16x26x68mm

LMEF16LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 16x26x68mm
$51.37 ex VAT
$51.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.41
5+ $32.48
9+ $32.09
19+ $31.70
49+ $31.32
74+ $30.93
99+ $29.00
199+ $28.61
249+ $28.22
499+ $27.84
999+ $27.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
26mm
Length:
68mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 16mm
Bore Clearance +0.011/-0.001mm
D 26mm
D Clearance 0/-0.011mm
L 68mm
L Clearance 0/-0.3mm
B 46mm
B Clearance 0/-0.2mm
H 6mm
PCD 36mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 15
Basic Load Rating - Dynamic C 1230 N
Basic Load Rating - Static Co 2350 N
No of Ball Rows 5
