SKU: LMEF-16-UU-EU

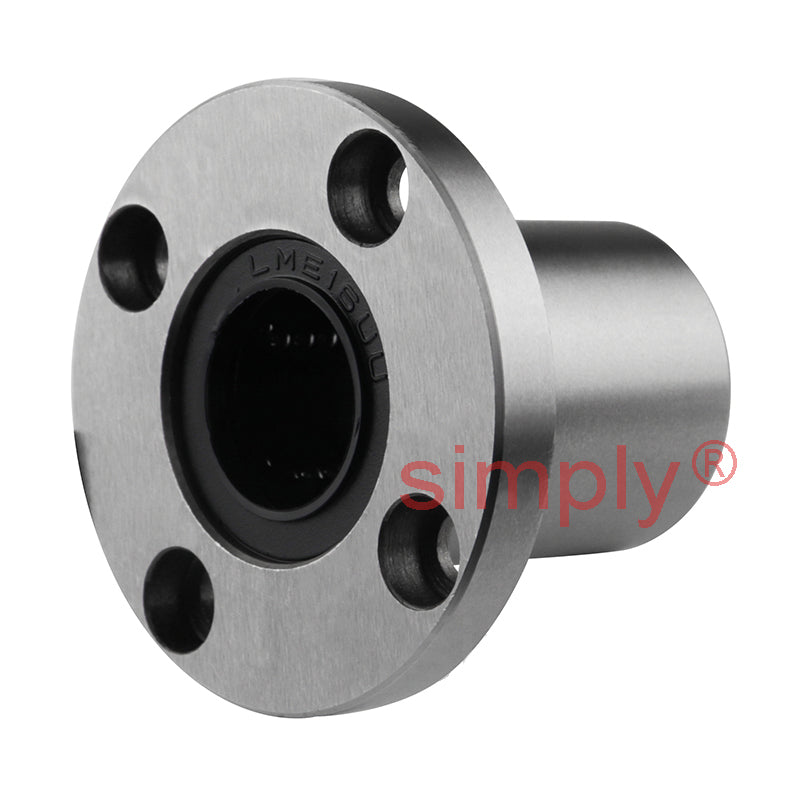

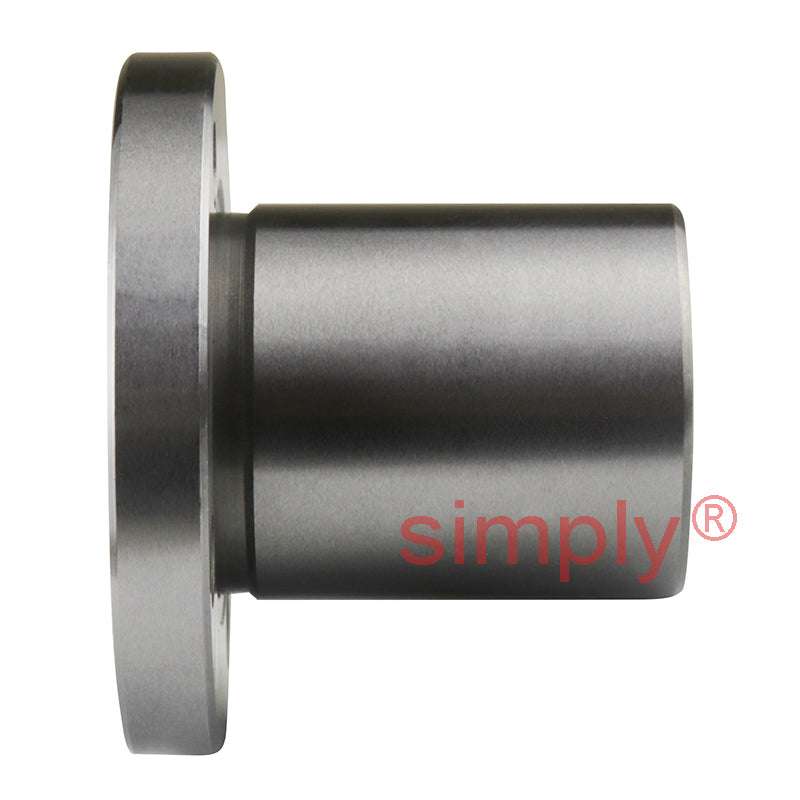

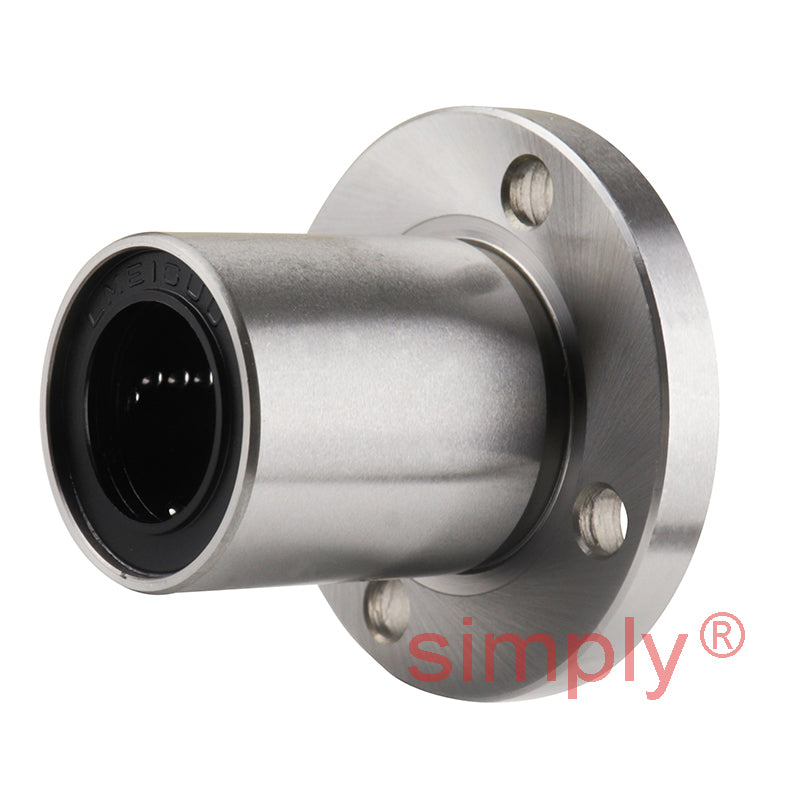

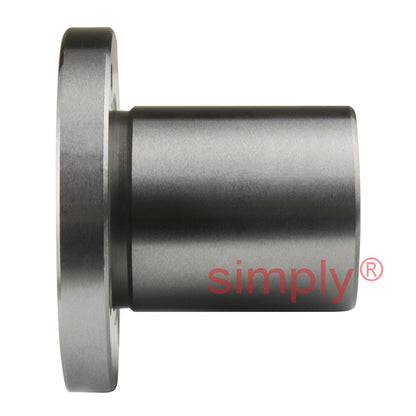

LMEF16UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 16x26x36mm

LMEF16UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 16x26x36mm
$37.00 ex VAT
$37.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $24.78
5+ $23.39
9+ $23.11
19+ $22.83
49+ $22.56
74+ $22.28
99+ $20.88
199+ $20.61
249+ $20.33
499+ $20.05
999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
26mm
Length:
36mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 16mm
Bore Clearance +0.009/-0.001mm
D 26mm
D Clearance 0/-0.009mm
L 36mm
L Clearance 0/-0.2mm
B 46mm
B Clearance 0/-0.2mm
H 6mm
PCD 36mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 12mm
Basic Load Rating - Dynamic C 770 N
Basic Load Rating - Static Co 1170 N
No of Ball Rows 5
Weight 0.12 kg
