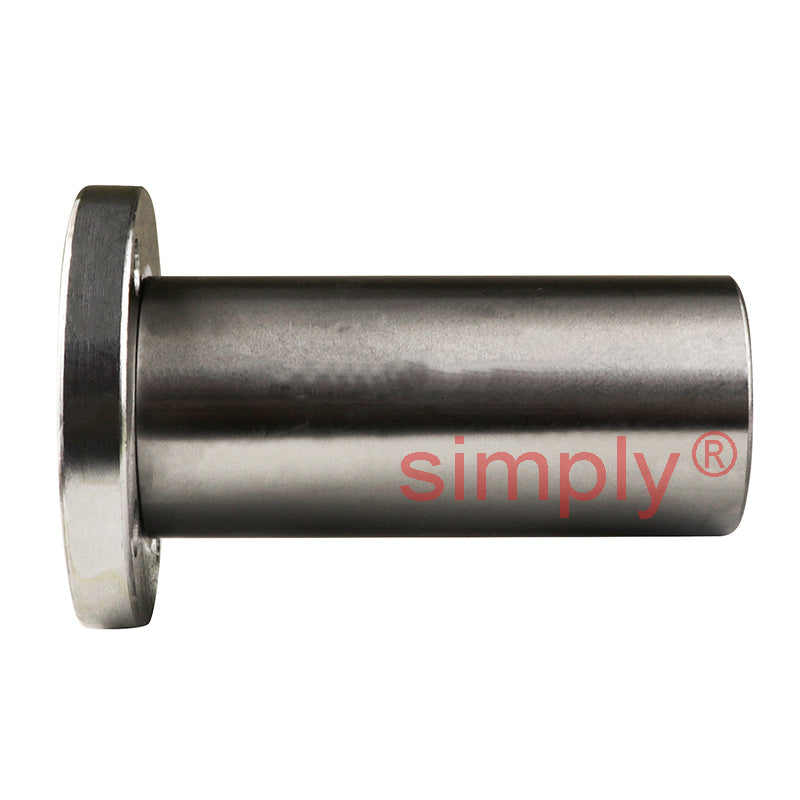

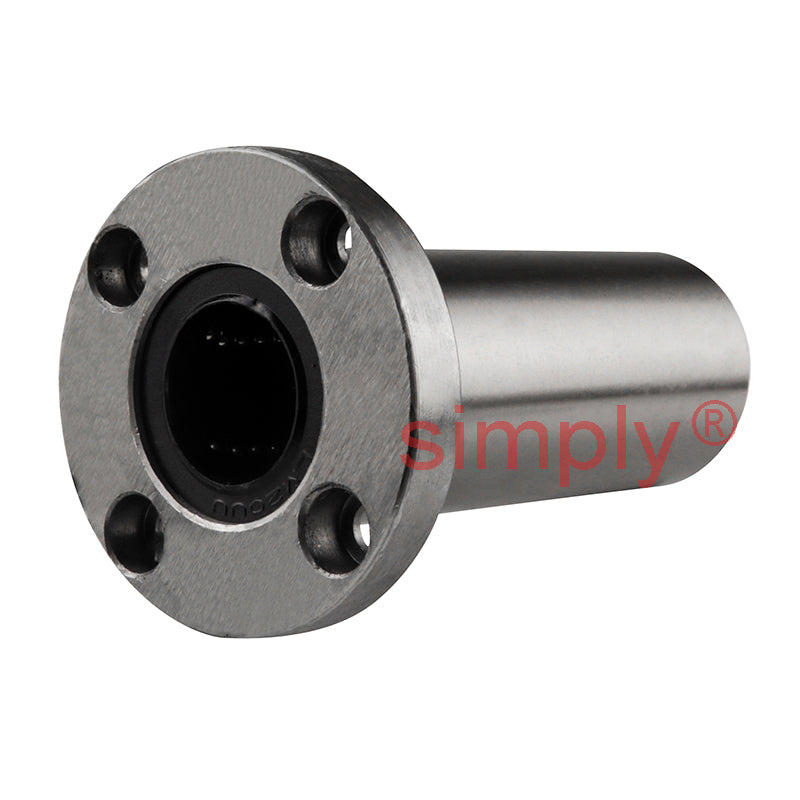

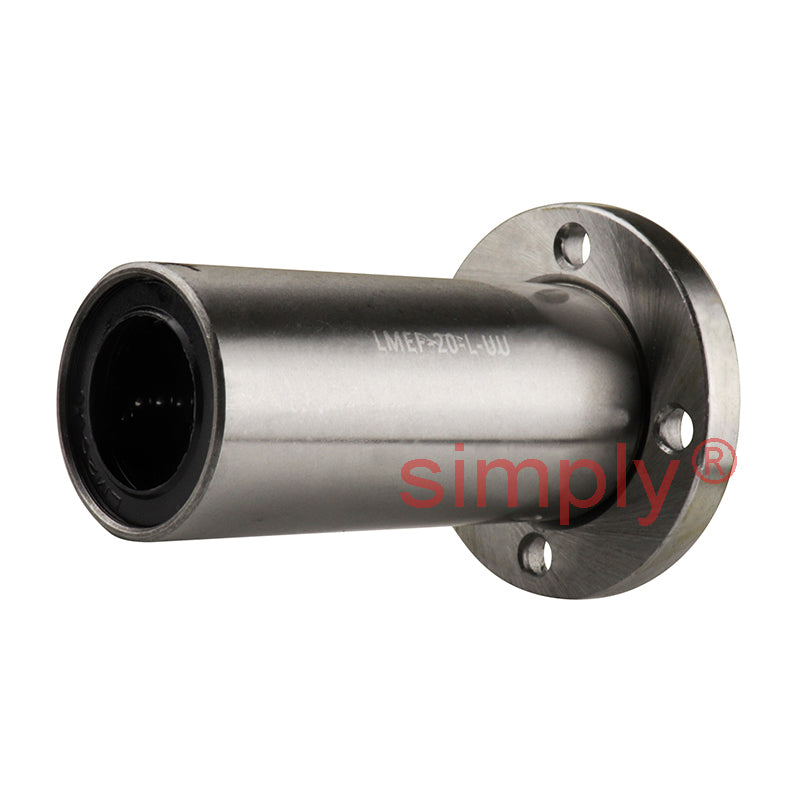

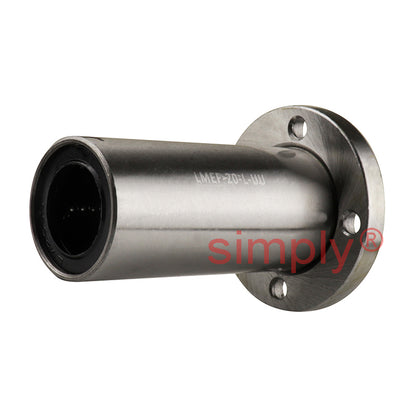

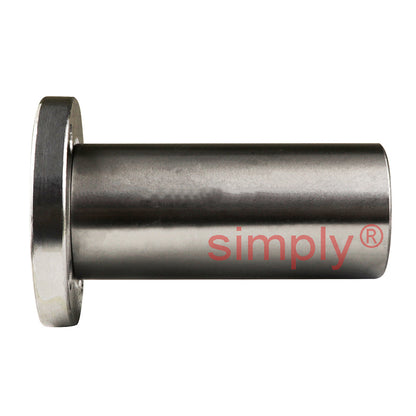

• LMEF20LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
  • LMEF20LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
  • LMEF20LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
1 3

SKU: LMEF-20-L-UU-EU

LMEF20LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm

LMEF20LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
5+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
74+ $35.47
99+ $33.25
199+ $32.81
249+ $32.37
499+ $31.92
999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
80mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 20mm
Bore Clearance +0.011/-0.001mm
D 32mm
D Clearance 0/-0.013mm
L 80mm
L Clearance 0/-0.3mm
B 54mm
B Clearance 0/-0.2mm
H 8mm
PCD 43mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 17
Basic Load Rating - Dynamic C 1400 N
Basic Load Rating - Static Co 2750 N
No of Ball Rows 5
