SKU: LMEF-20-UU-EU

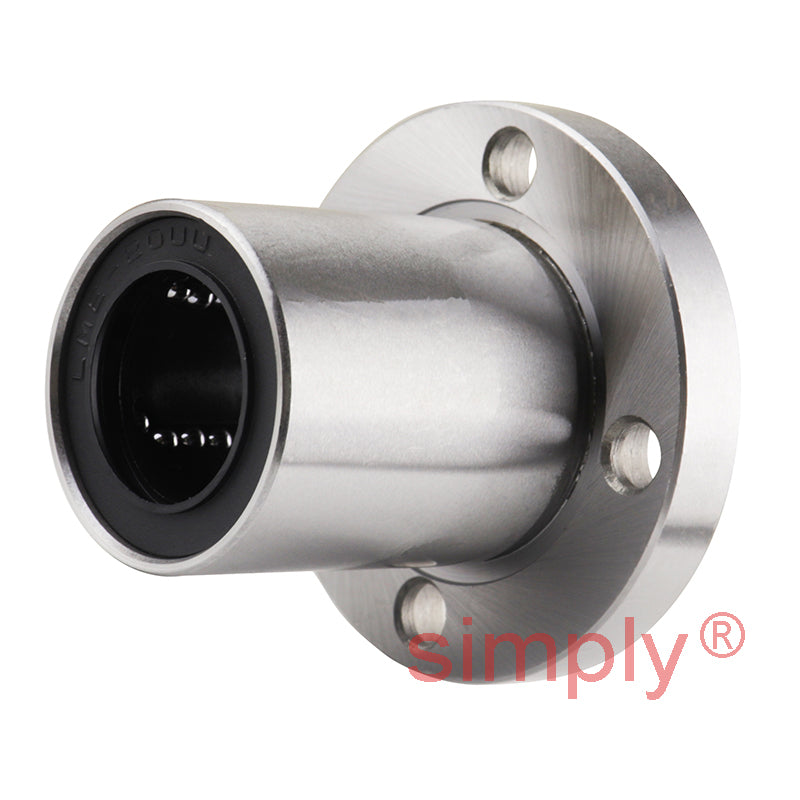

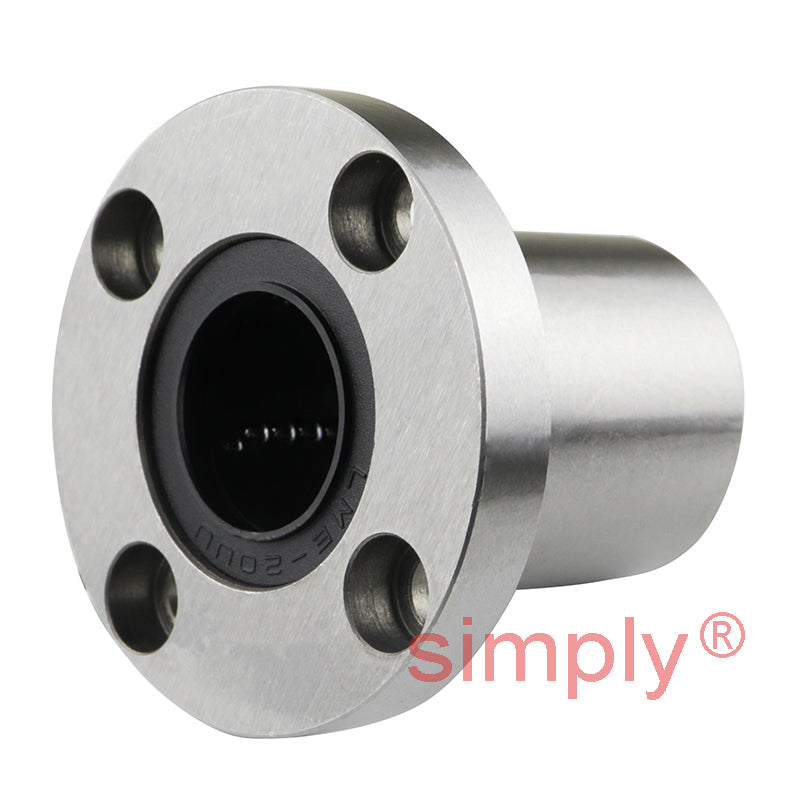

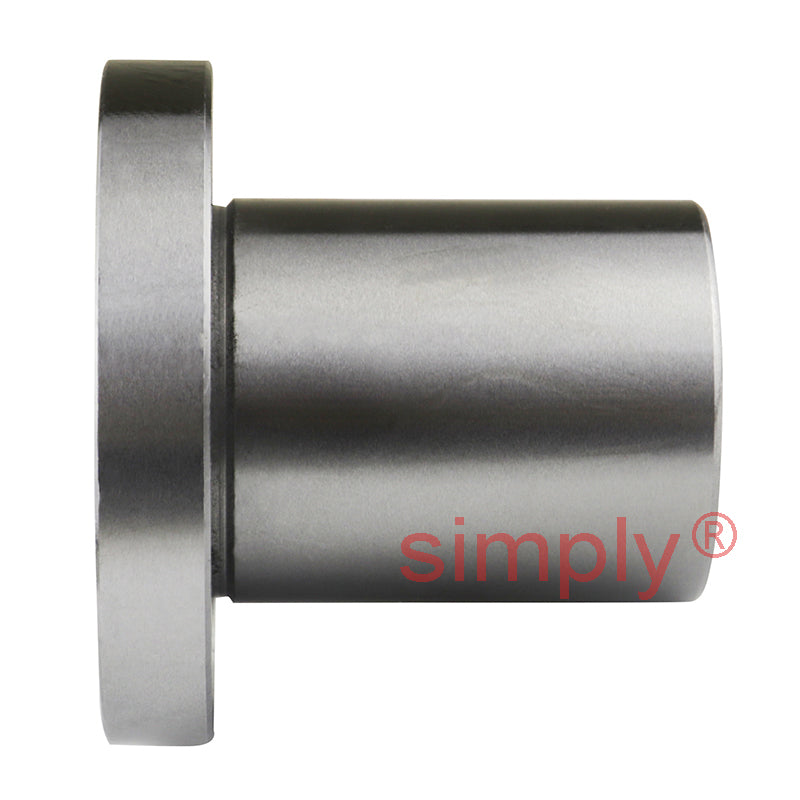

LMEF20UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm

LMEF20UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
5+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
74+ $32.39
99+ $30.36
199+ $29.96
249+ $29.55
499+ $29.15
999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
45mm
Seals / Shields:
Rubber Sealed

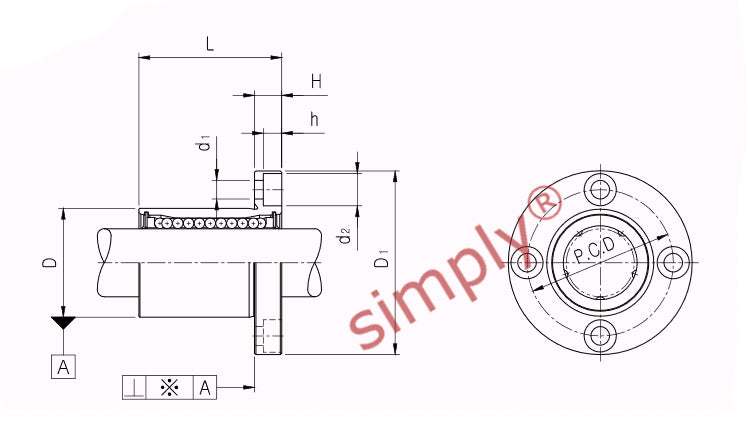

Technical
Working Bore Diameter dr. 20mm
Bore Clearance +0.009/-0.001mm
D 32mm
D Clearance 0/-0.011mm
L 45mm
L Clearance 0/-0.2mm
B 54mm
B Clearance 0/-0.2mm
H 8mm
PCD 43mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 15mm
Basic Load Rating - Dynamic C 860 N
Basic Load Rating - Static Co 1370 N
No of Ball Rows 5
Weight 0.184 kg
