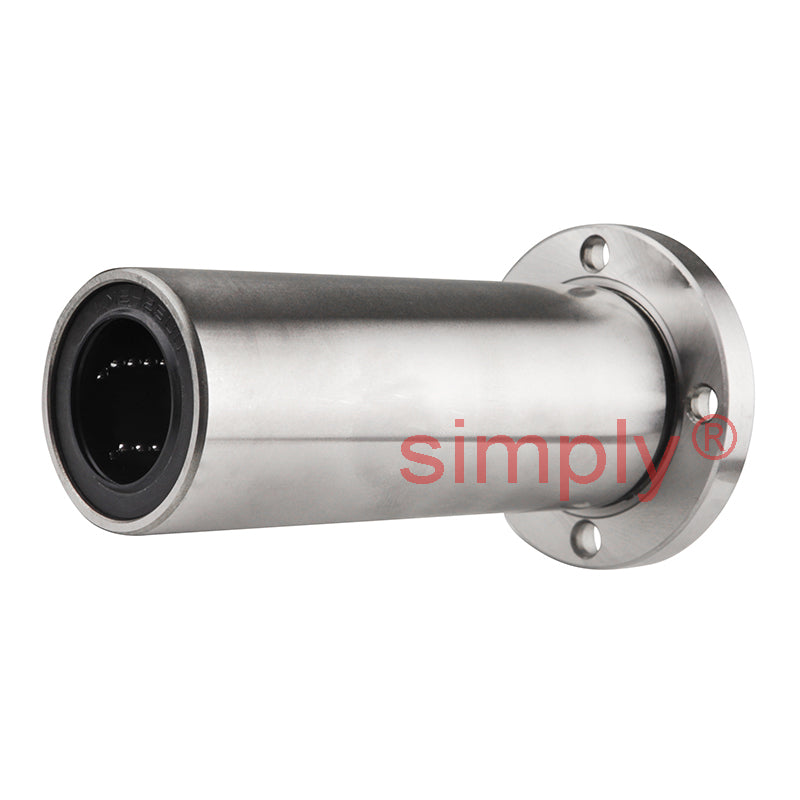

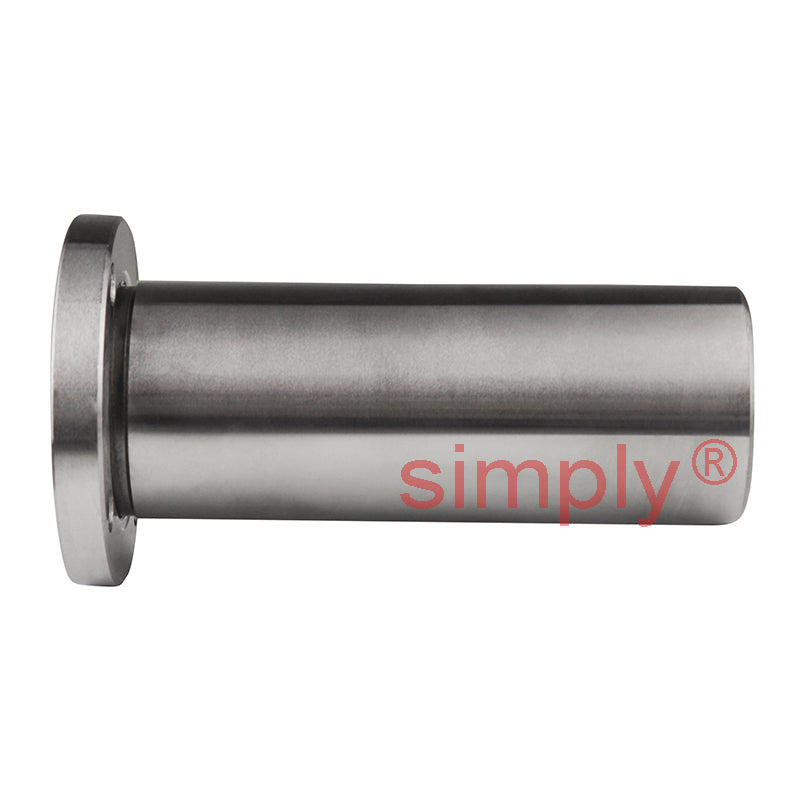

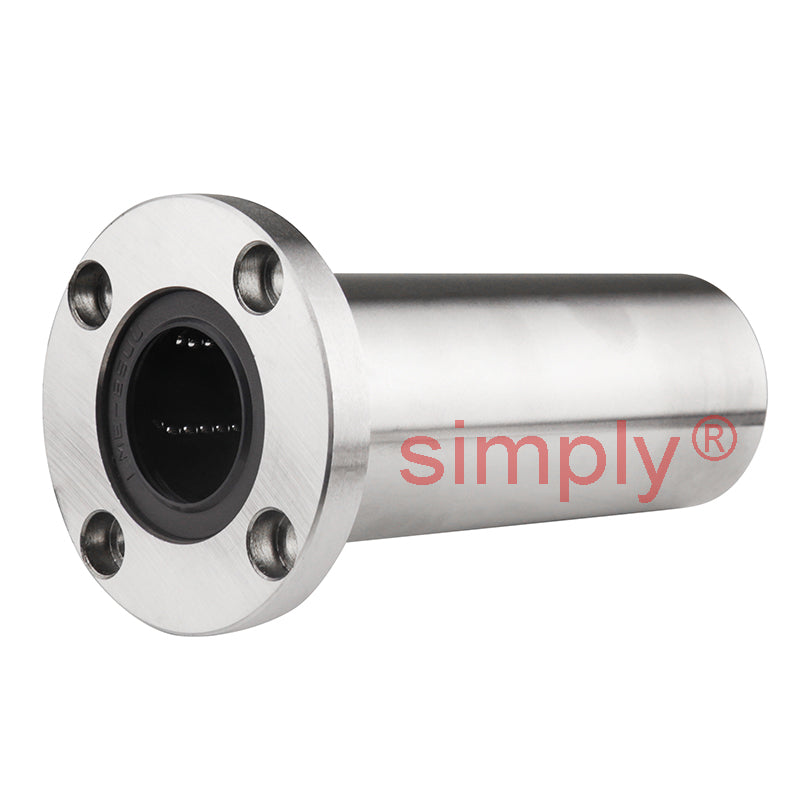

• LMEF25LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm
  • LMEF25LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm
  • LMEF25LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm
1 3

SKU: LMEF-25-L-UU-EU

LMEF25LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm

LMEF25LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm
$75.14 ex VAT
$75.14 ex VAT
Sale Sold out

In stock

Price Break
3+ $50.33
5+ $47.50
9+ $46.94
19+ $46.37
49+ $45.80
74+ $45.24
99+ $42.41
199+ $41.85
249+ $41.28
499+ $40.72
999+ $39.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
112mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 25mm
Bore Clearance +0.013/-0.002mm
D 40mm
D Clearance 0/-0.013mm
L 112mm
L Clearance 0/-0.4mm
B 62mm
B Clearance 0/-0.2mm
H 8mm
PCD 51mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 17
Basic Load Rating - Dynamic C 1560 N
Basic Load Rating - Static Co 3140 N
No of Ball Rows 6
