SKU: LMEF-30-L-UU-EU

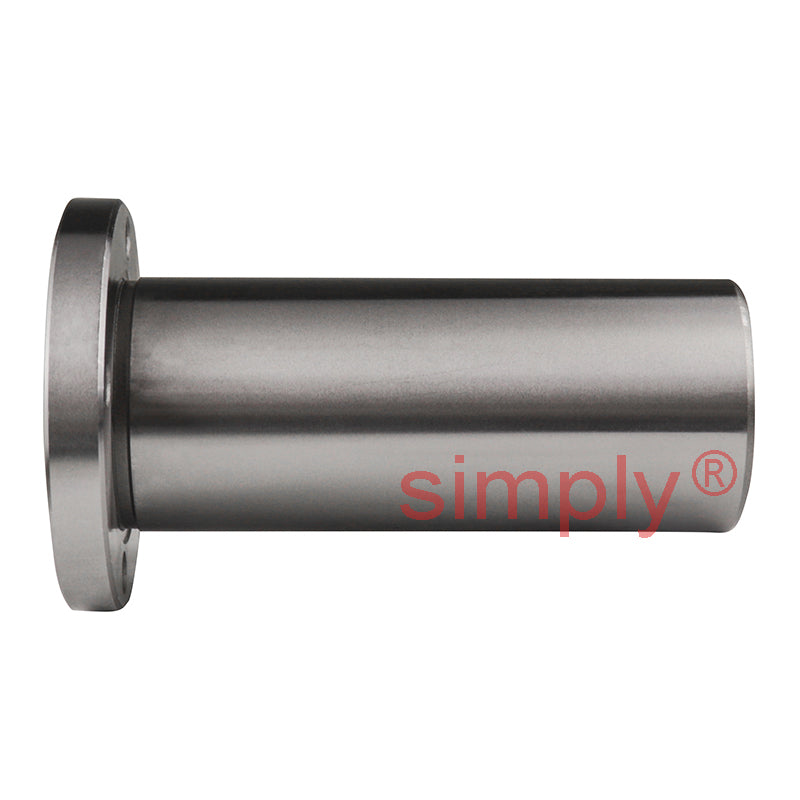

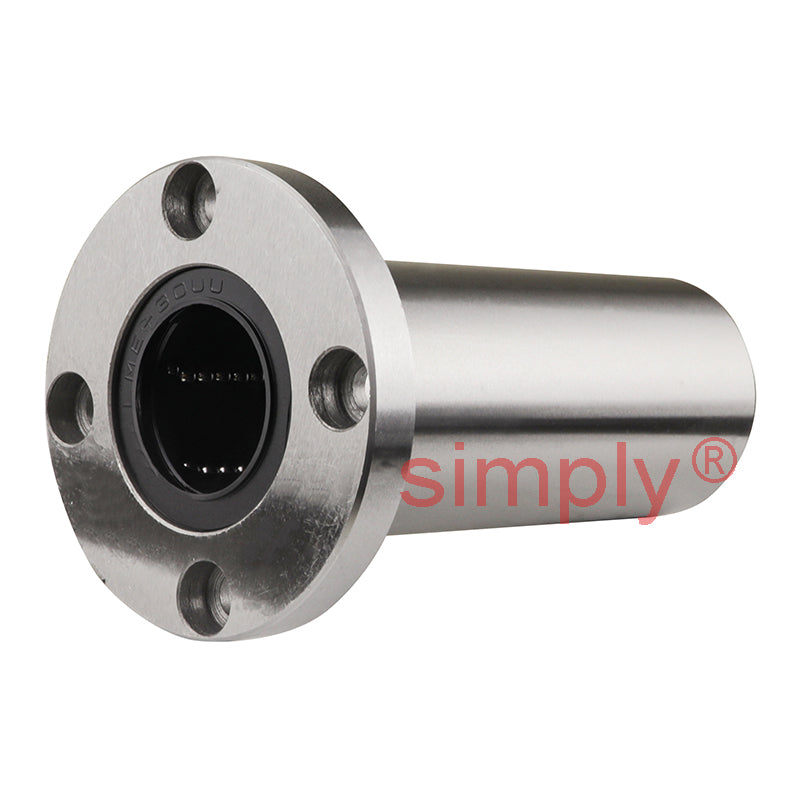

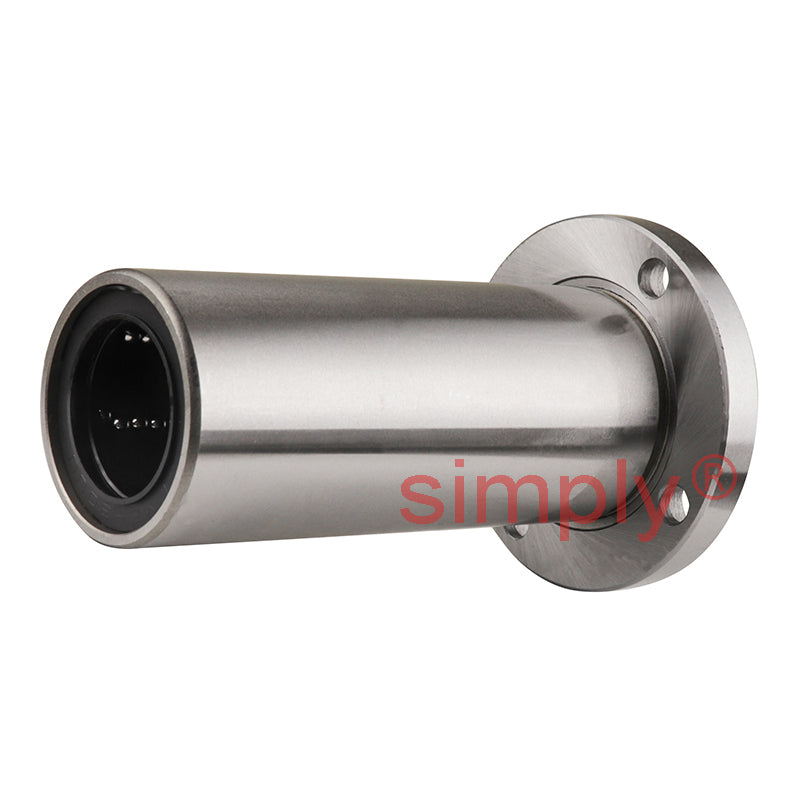

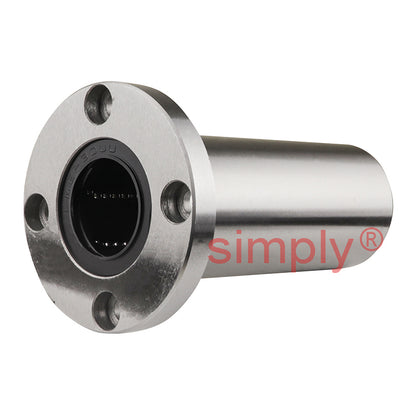

LMEF30LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x123mm

Name: LMEF30LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x123mm
Brand: Gen
SKU: LMEF-30-L-UU-EU
Price: 105.87 USD
Availability: InStock

$105.87 ex VAT

Sale Sold out

In stock

Price Break

3+ $70.92

5+ $66.93

9+ $66.14

19+ $65.34

49+ $64.54

74+ $63.75

99+ $59.76

199+ $58.97

249+ $58.17

499+ $57.37

999+ $55.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 47mm
Length:: 123mm
Seals / Shields:: Rubber Sealed

Technical

Working Bore Diameter dr.	30mm
Bore Clearance	+0.013/-0.002mm
D	47mm
D Clearance	0/-0.013mm
L	123mm
L Clearance	0/-0.4mm
B	76mm
B Clearance	0/-0.2mm
H	10mm
PCD	62mm
d<sub>1</sub>	6.6mm
d<sub>2</sub>	11mm
h	6.5mm
Squareness um	17
Basic Load Rating - Dynamic C	2490 N
Basic Load Rating - Static Co	5490 N
No of Ball Rows	6
