SKU: LMEF-40-L-UU-EU

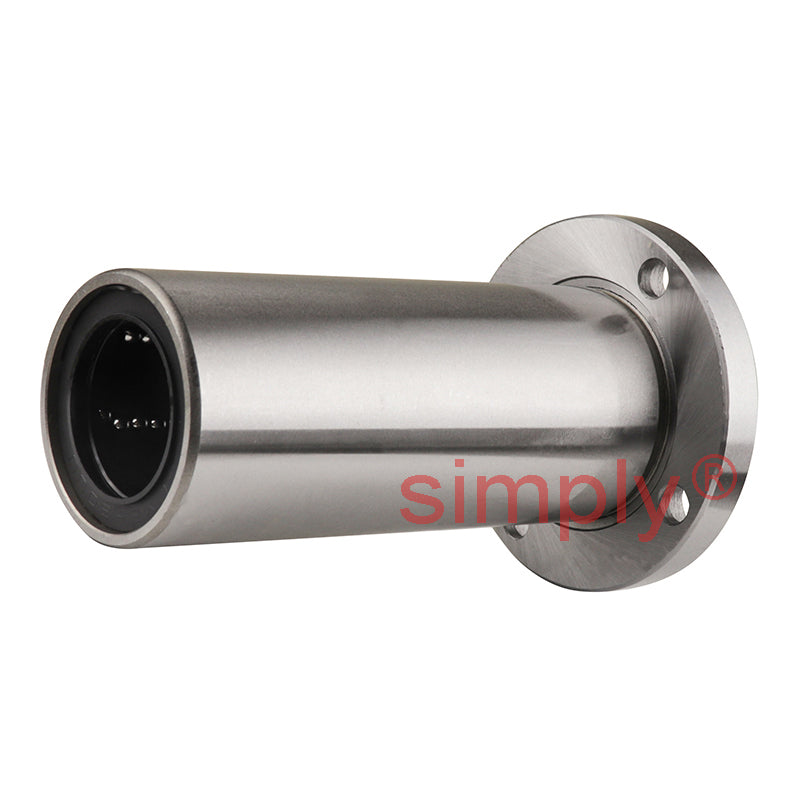

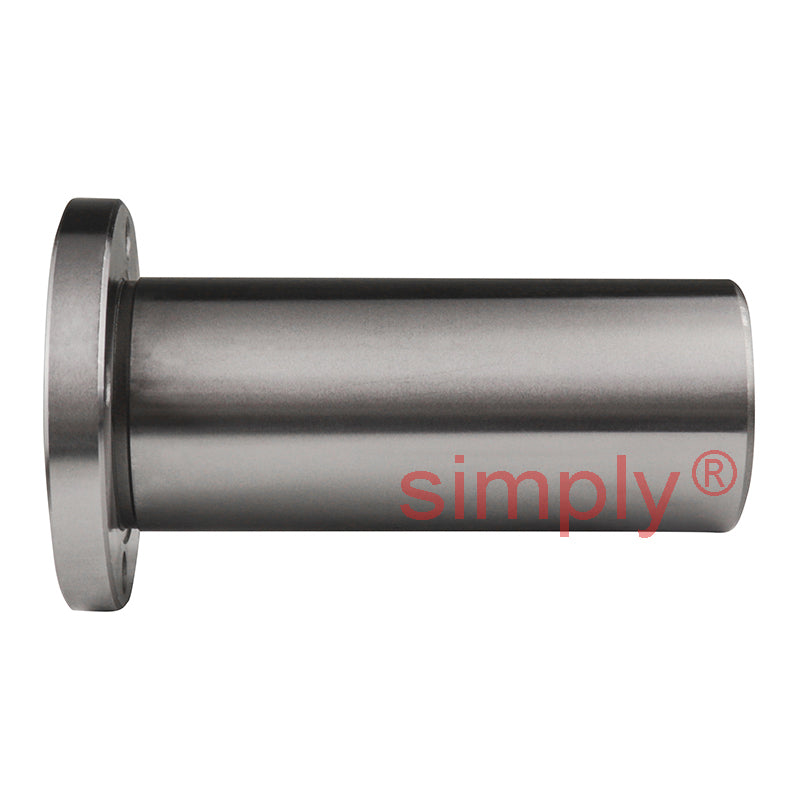

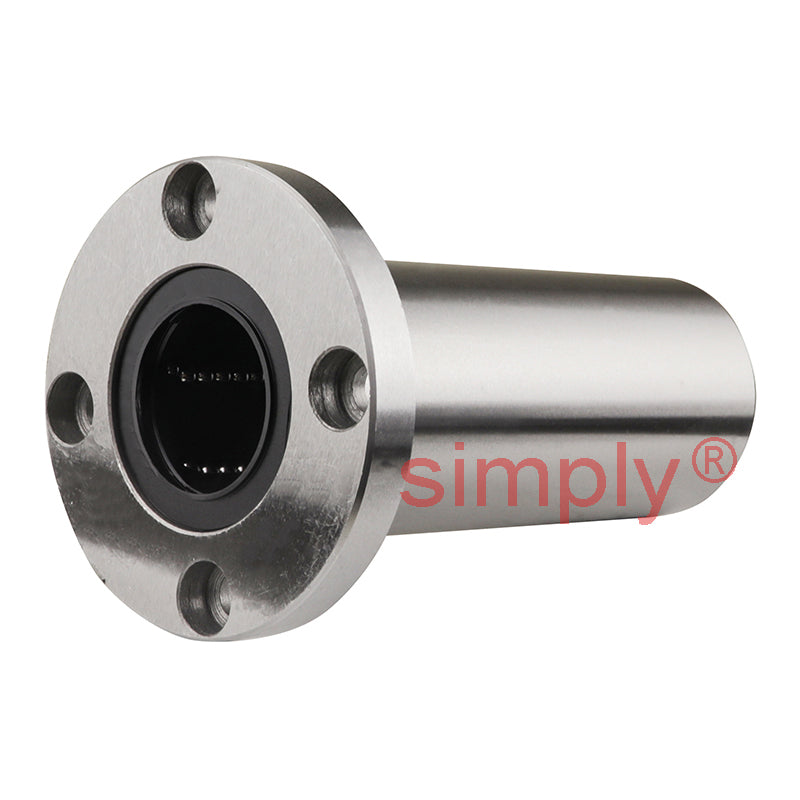

LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm

Name: LMEF40LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x154mm
Brand: Gen
SKU: LMEF-40-L-UU-EU
Price: 216.66 USD
Availability: InStock

$216.66 ex VAT

Sale Sold out

In stock

Price Break

3+ $145.12

5+ $136.97

9+ $135.34

19+ $133.71

49+ $132.08

74+ $130.45

99+ $122.29

199+ $120.66

249+ $119.03

499+ $117.40

999+ $114.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 62mm
Length:: 154mm
Seals / Shields:: Rubber Sealed

Technical

Working Bore Diameter dr.	40mm
Bore Clearance	+0.016/-0.004mm
D	62mm
D Clearance	0/-0.015mm
L	154mm
L Clearance	0/-0.4mm
B	98mm
B Clearance	0/-0.3mm
H	13mm
PCD	80mm
d<sub>1</sub>	9mm
d<sub>2</sub>	14mm
h	8.6mm
Squareness um	20
Basic Load Rating - Dynamic C	3430 N
Basic Load Rating - Static Co	8040 N
No of Ball Rows	6
