SKU: LMEF-40-UU-EU

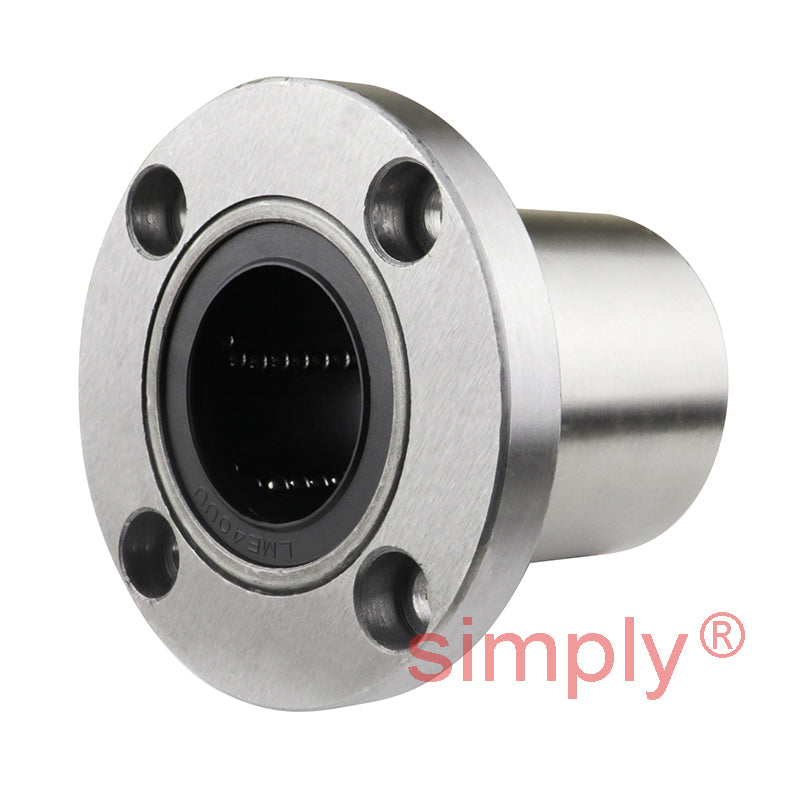

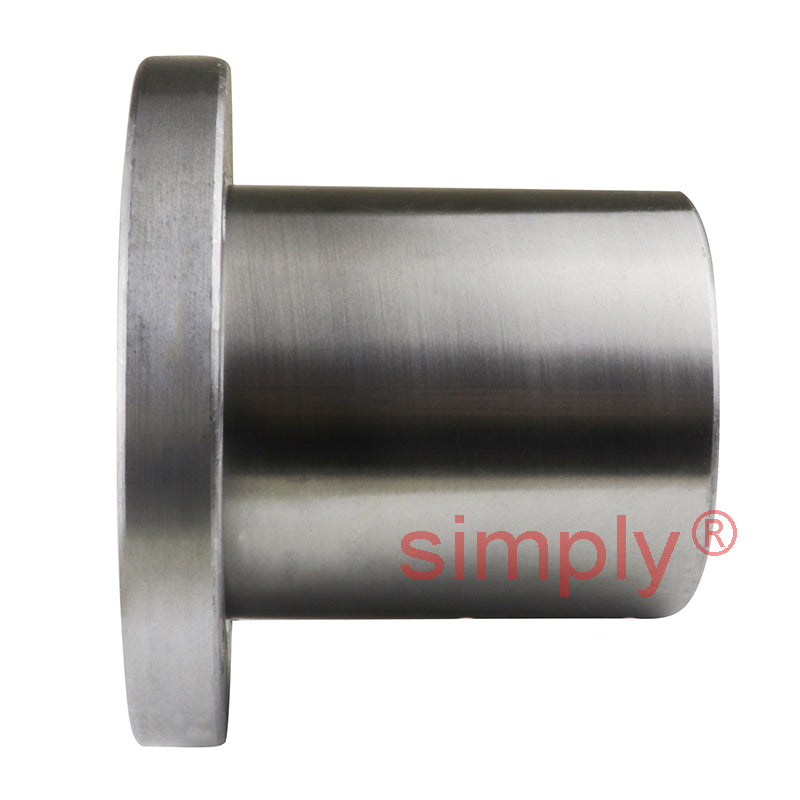

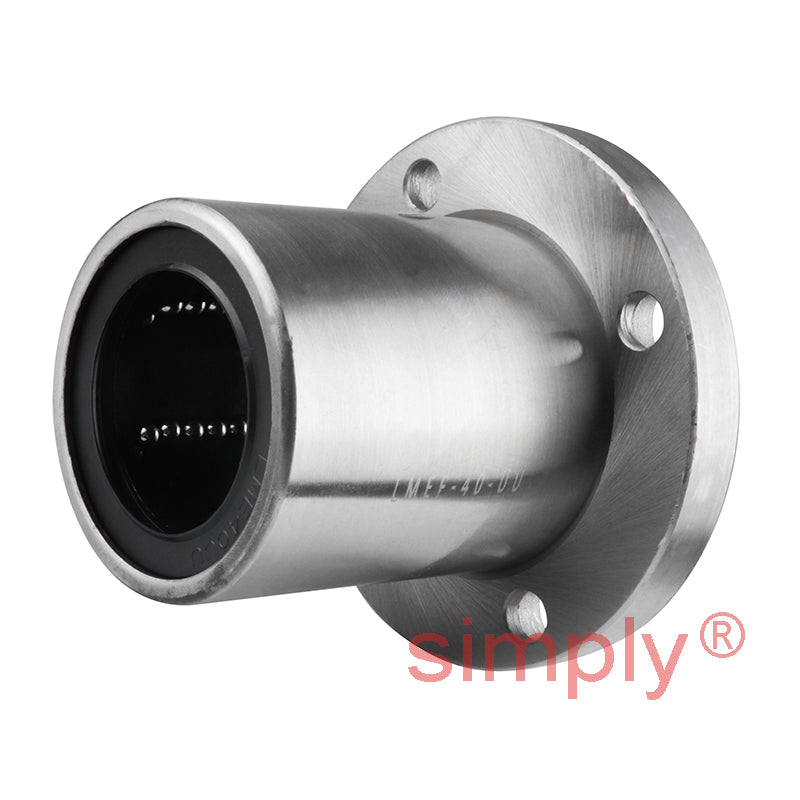

LMEF40UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x80mm

LMEF40UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x80mm
$92.64 ex VAT
$92.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.05
5+ $58.57
9+ $57.87
19+ $57.17
49+ $56.47
74+ $55.78
99+ $52.29
199+ $51.59
249+ $50.90
499+ $50.20
999+ $48.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Length:
80mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 40mm
Bore Clearance +0.013/-0.002mm
D 62mm
D Clearance 0/-0.013mm
L 80mm
L Clearance 0/-0.3mm
B 98mm
B Clearance 0/-0.3mm
H 13mm
PCD 80mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20mm
Basic Load Rating - Dynamic C 2150 N
Basic Load Rating - Static Co 4010 N
No of Ball Rows 6
Weight 1.185 kg
