SKU: LMEF-50-UU-EU

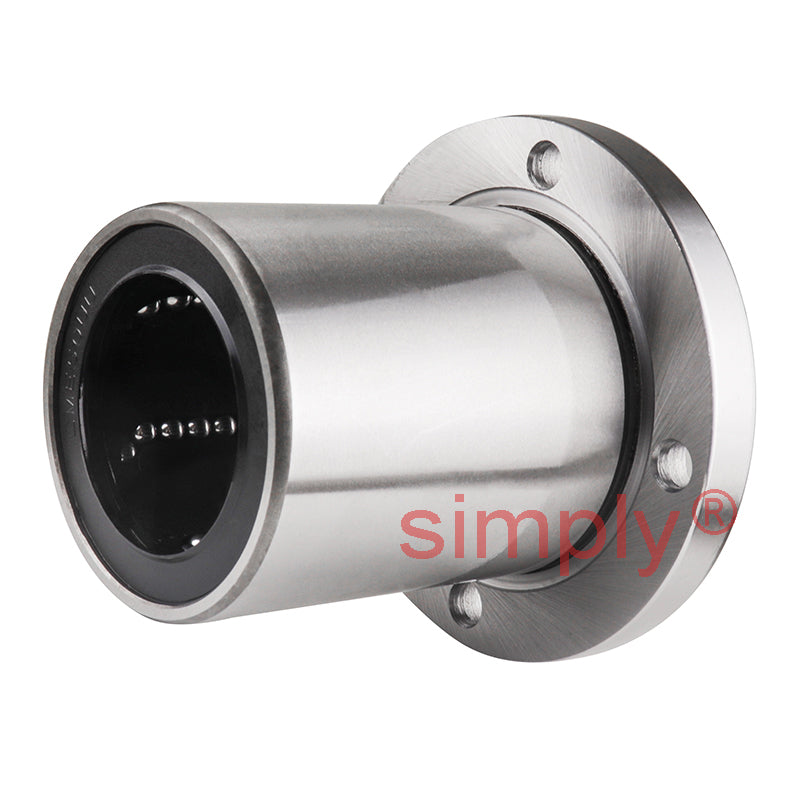

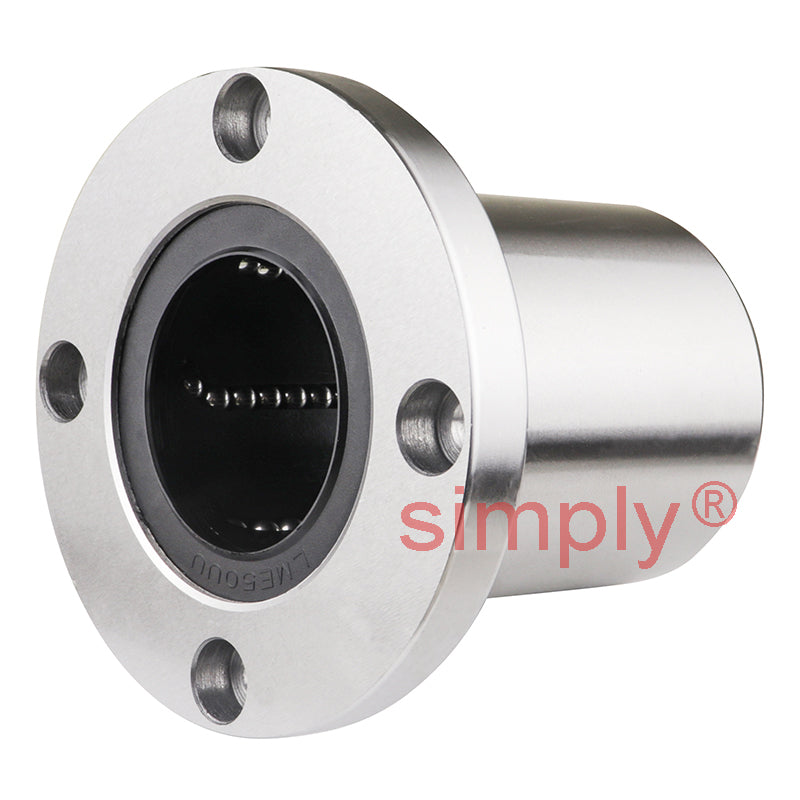

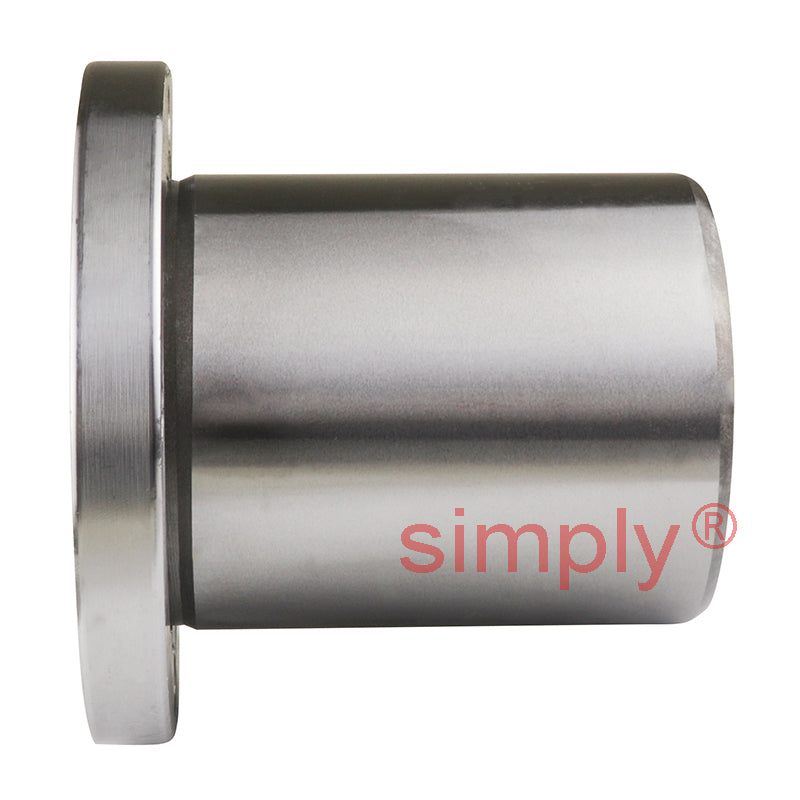

LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm

LMEF50UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 50x75x100mm
$147.29 ex VAT
$147.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.66
5+ $93.11
9+ $92.00
19+ $90.90
49+ $89.79
74+ $88.68
99+ $83.14
199+ $82.03
249+ $80.92
499+ $79.81
999+ $77.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
75mm
Length:
100mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 50mm
Bore Clearance +0.013/-0.002mm
D 75mm
D Clearance 0/-0.013mm
L 100mm
L Clearance 0/-0.3mm
B 112mm
B Clearance 0/-0.3mm
H 13mm
PCD 94mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20mm
Basic Load Rating - Dynamic C 3820 N
Basic Load Rating - Static Co 7930 N
No of Ball Rows 6
Weight 1.73 kg
