SKU: LMEF-60-L-UU-EU

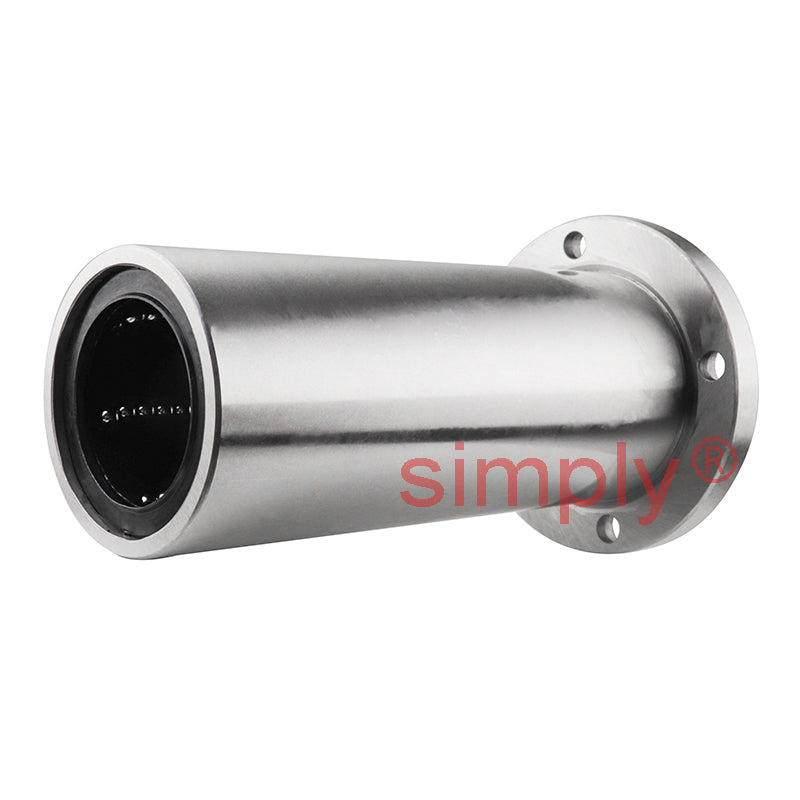

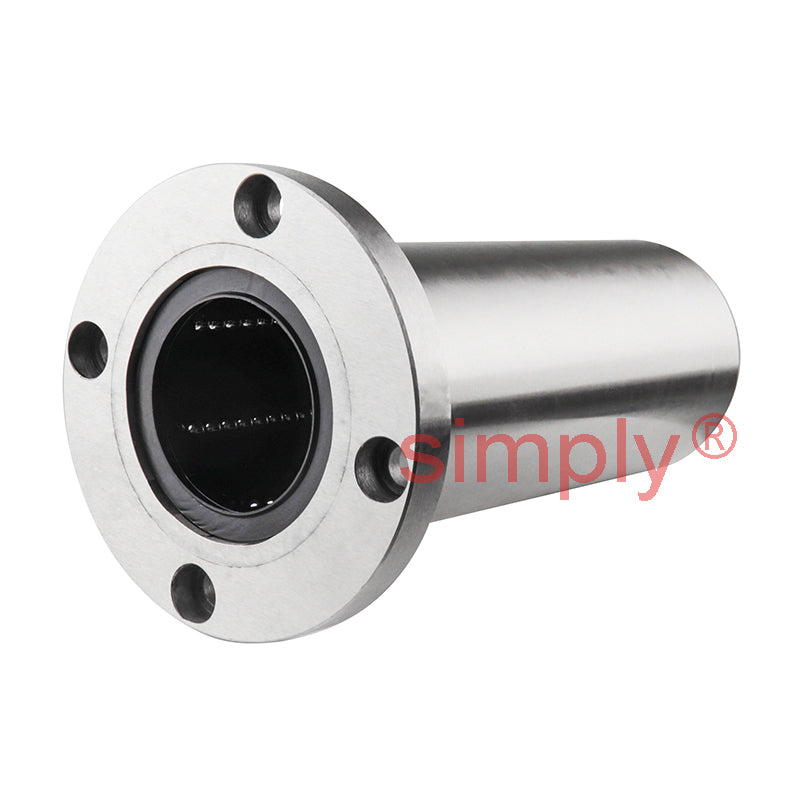

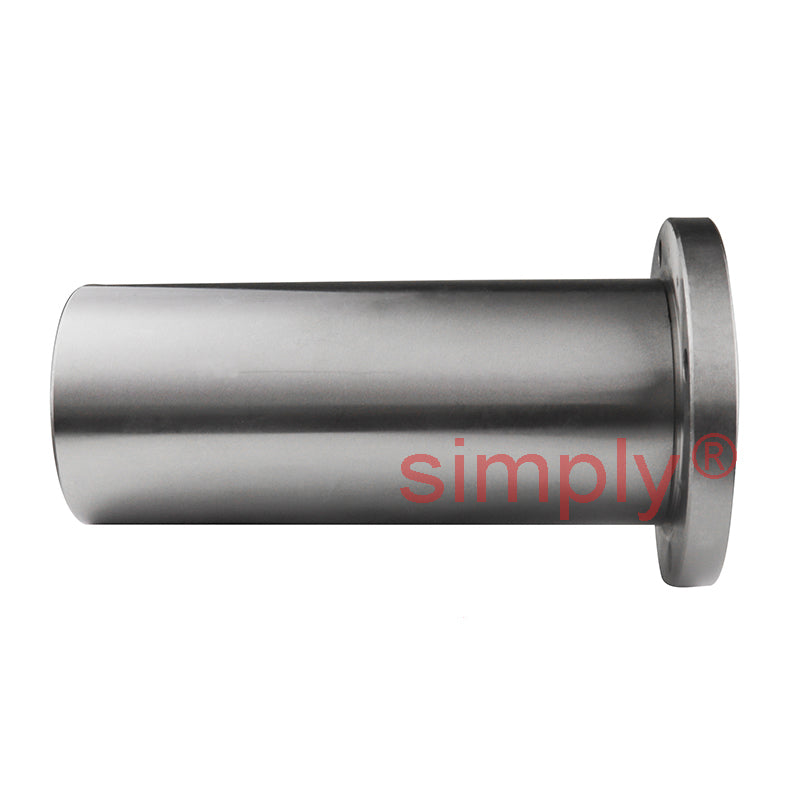

LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm

Name: LMEFL60UU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x211mm
Brand: Gen
SKU: LMEF-60-L-UU-EU
Price: 151.55 USD
Availability: InStock

$151.55 ex VAT

Sale Sold out

In stock

Price Break

3+ $101.51

5+ $95.81

9+ $94.67

19+ $93.53

49+ $92.39

74+ $91.25

99+ $85.55

199+ $84.41

249+ $83.26

499+ $82.12

999+ $79.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 60mm
Outside Diameter:: 90mm
Length:: 211mm
Seals / Shields:: Rubber Sealed

Technical

Working Bore Diameter dr.	60mm
Bore Clearance	+0.016/-0.004mm
D	90mm
D Clearance	0/-0.020mm
L	211mm
L Clearance	0/-0.4mm
B	134mm
B Clearance	0/-0.3mm
H	18mm
PCD	112mm
d<sub>1</sub>	11mm
d<sub>2</sub>	17.5mm
h	10.8mm
Squareness um	30
Basic Load Rating - Dynamic C	7650 N
Basic Load Rating - Static Co	20000 N
No of Ball Rows	6
