SKU: LMEF-60-UU-EU

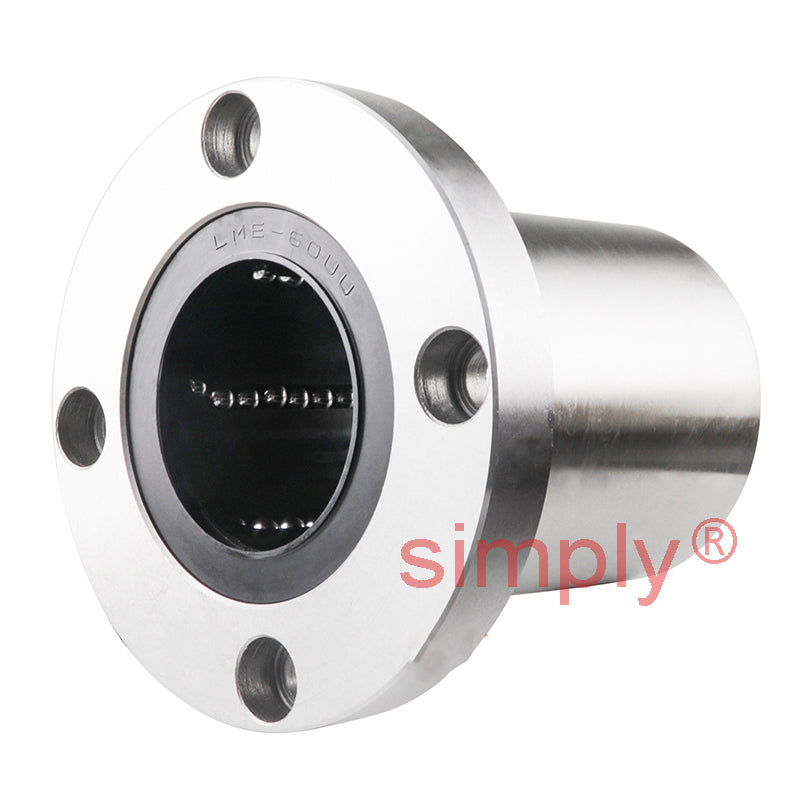

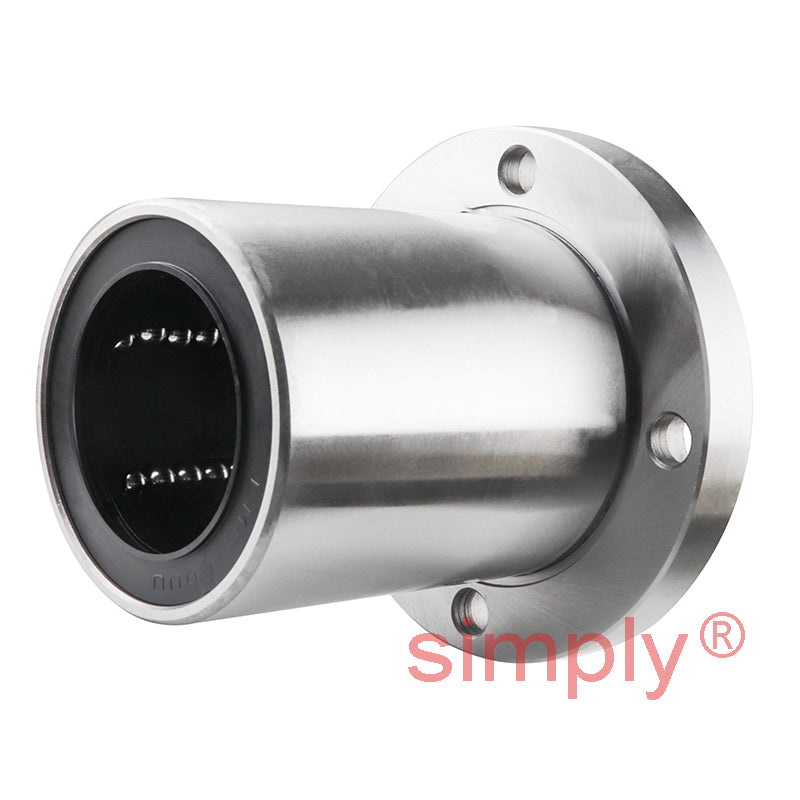

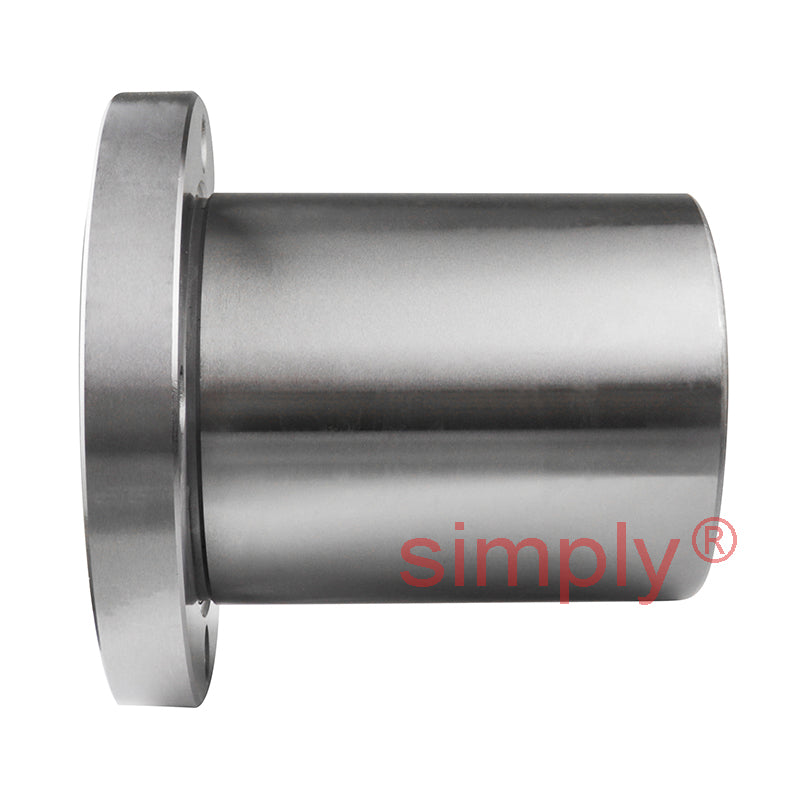

LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm

LMEF60UU Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 60x90x125mm
$86.87 ex VAT
$86.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $58.19
5+ $54.92
9+ $54.27
19+ $53.62
49+ $52.96
74+ $52.31
99+ $49.04
199+ $48.38
249+ $47.73
499+ $47.08
999+ $45.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
90mm
Length:
125mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 60mm
Bore Clearance +0.013/-0.002mm
D 90mm
D Clearance 0/-0.015mm
L 125mm
L Clearance 0/-0.4mm
B 134mm
B Clearance 0/-0.3mm
H 18mm
PCD 112mm
d<sub>1</sub> 11mm
d<sub>2</sub> 17.5mm
h 10.8mm
Squareness um 25mm
Basic Load Rating - Dynamic C 4700 N
Basic Load Rating - Static Co 9990 N
No of Ball Rows 6
Weight 3.18 kg
