• LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm
  • LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm
  • LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm
1 3

SKU: LMEF-8-L-UU-EU

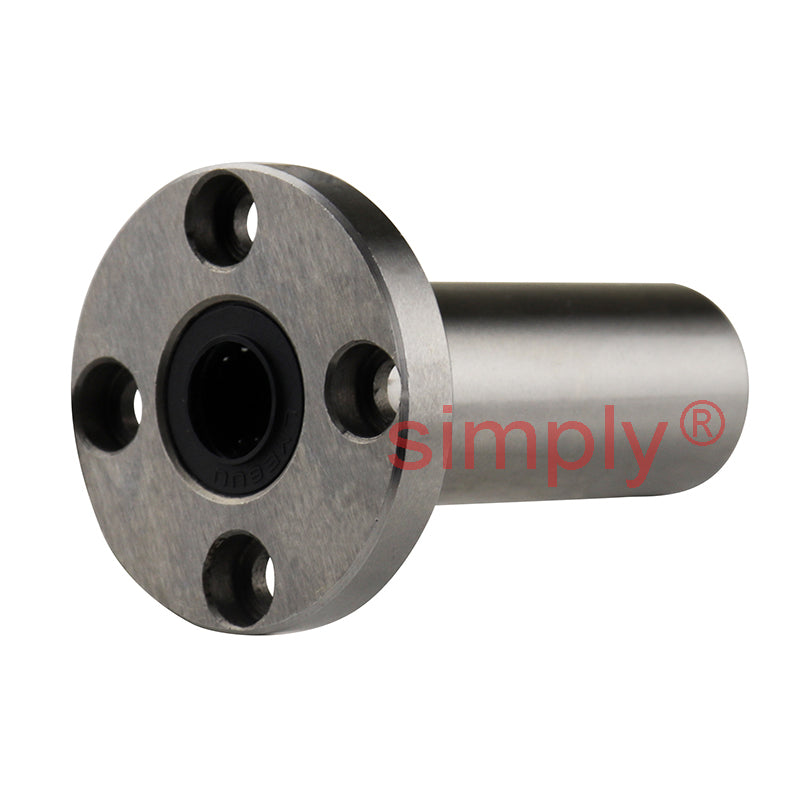

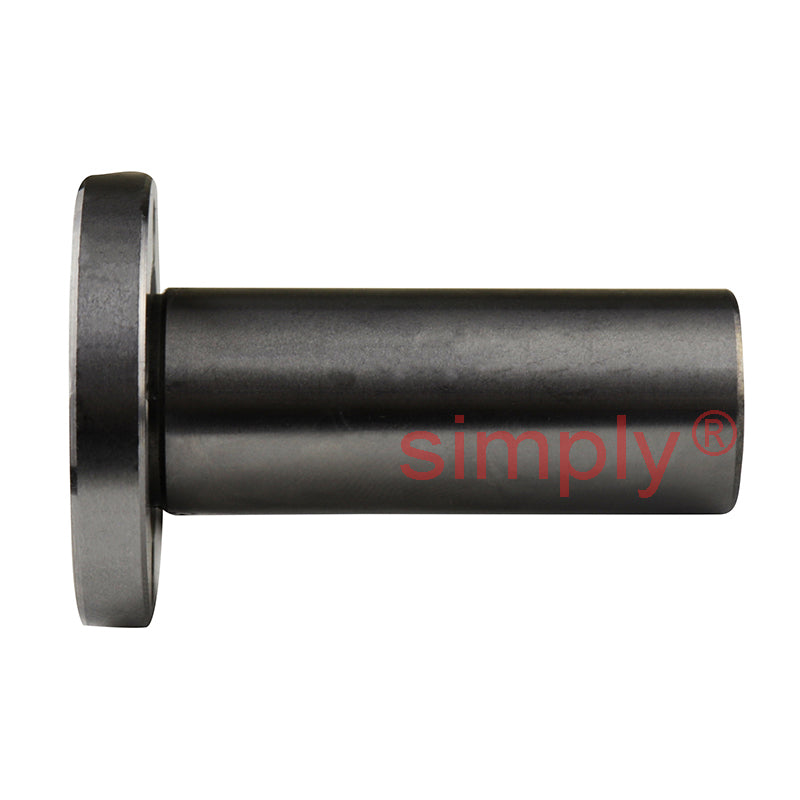

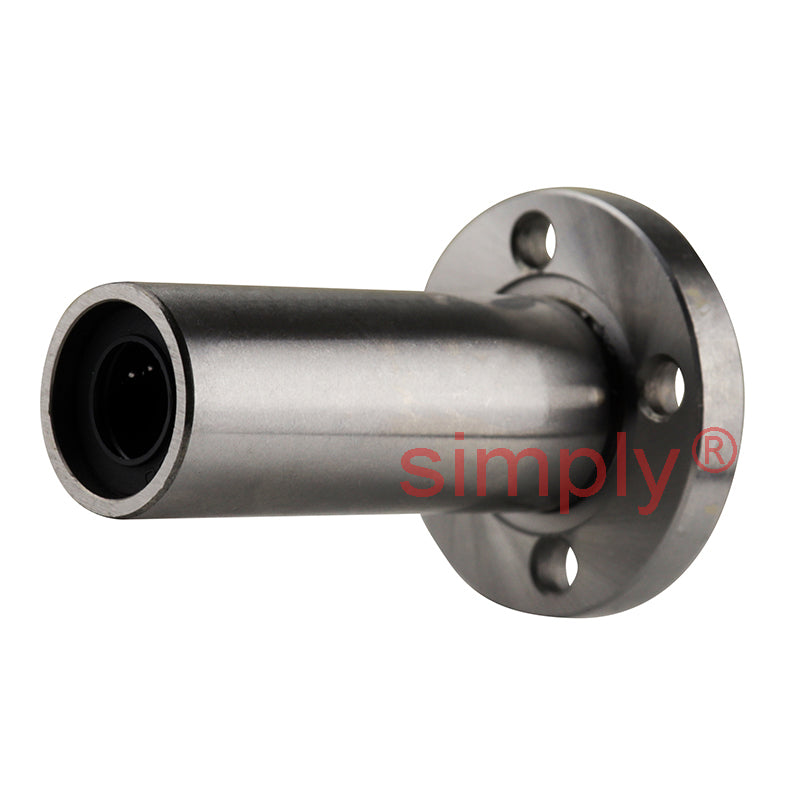

LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm

LMEF8LUU Long Round Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x45mm
$40.55 ex VAT
$40.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
5+ $25.64
9+ $25.33
19+ $25.03
49+ $24.72
74+ $24.42
99+ $22.89
199+ $22.59
249+ $22.28
499+ $21.98
999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
45mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 8mm
Bore Clearance +0.009/-0.001mm
D 16mm
D Clearance 0/-0.009mm
L 45mm
L Clearance 0/-0.3mm
B 32mm
B Clearance 0/-0.2mm
H 5mm
PCD 24mm
d<sub>1</sub> 3.4mm
d<sub>2</sub> 6.5mm
h 3.3mm
Squareness um 15
Basic Load Rating - Dynamic C 430 N
Basic Load Rating - Static Co 780 N
No of Ball Rows 4
