• LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
  • LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
  • LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
1 3

SKU: LMEK-12-L-UU-EU

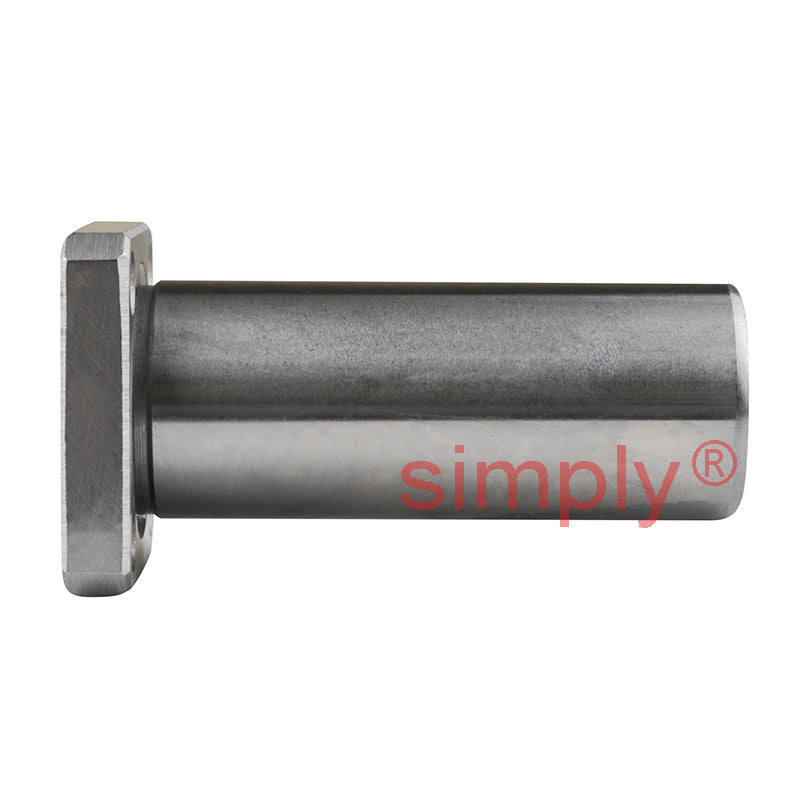

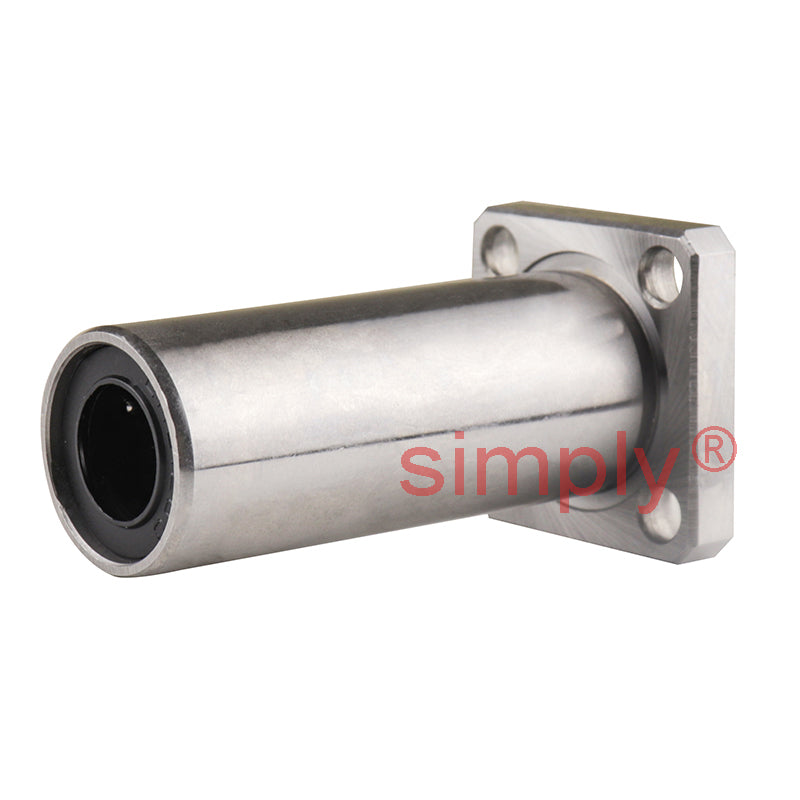

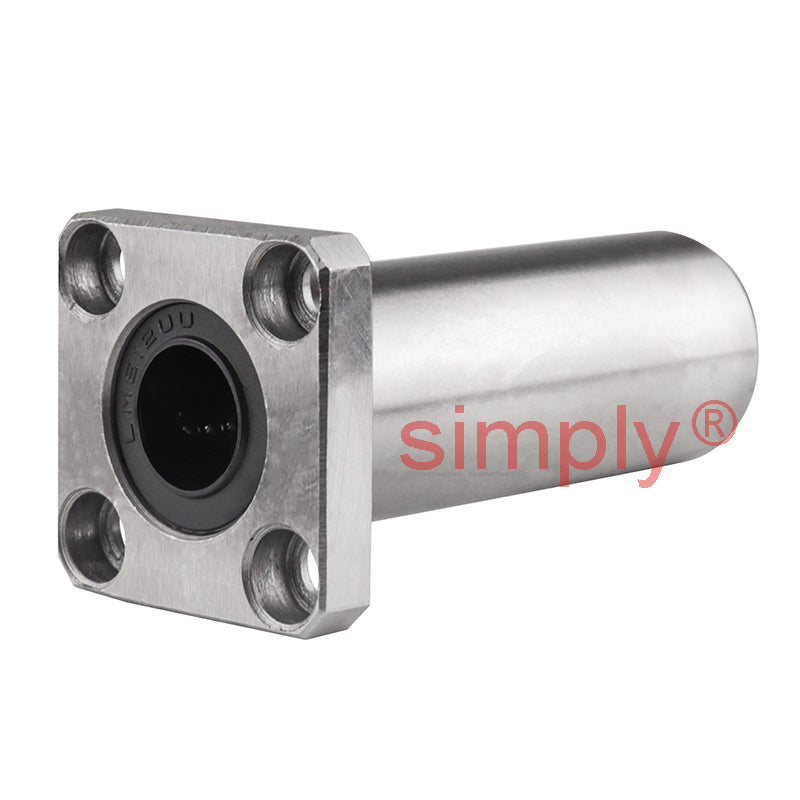

LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm

LMEK12LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x57mm
$48.67 ex VAT
$48.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.60
5+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
74+ $29.30
99+ $27.47
199+ $27.10
249+ $26.74
499+ $26.37
999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
57mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 12mm
Bore Clearance +0.009/-0.001mm
D 22mm
D Clearance 0/-0.011mm
L 57mm
L Clearance 0/-0.3mm
D<sub>1</sub> 42mm
D<sub>1</sub> Clearance 0/-0.2mm
H 6mm
PCD 32mm
K 32mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 15
Basic Load Rating - Dynamic C 650 N
Basic Load Rating - Static Co 120 N
No of Ball Rows 4
