• LMEK12UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm
  • LMEK12UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm
  • LMEK12UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm
1 3

SKU: LMEK-12-UU-EU

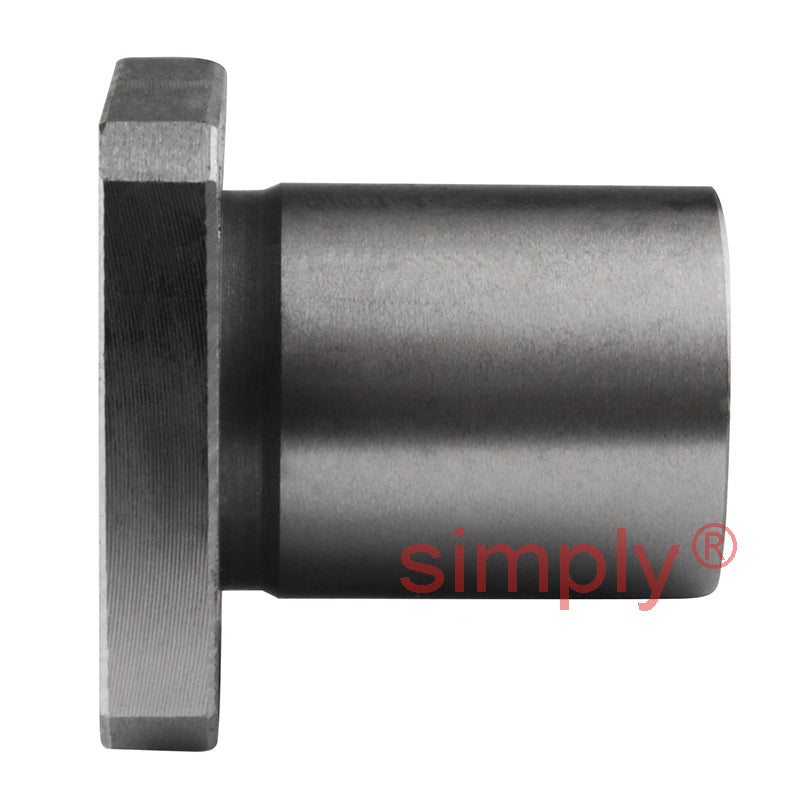

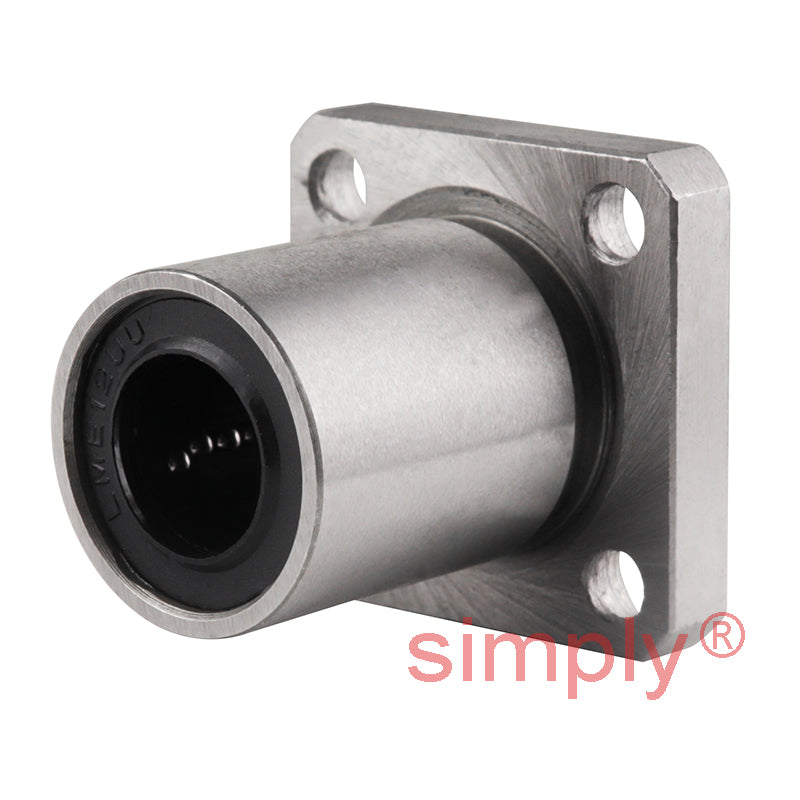

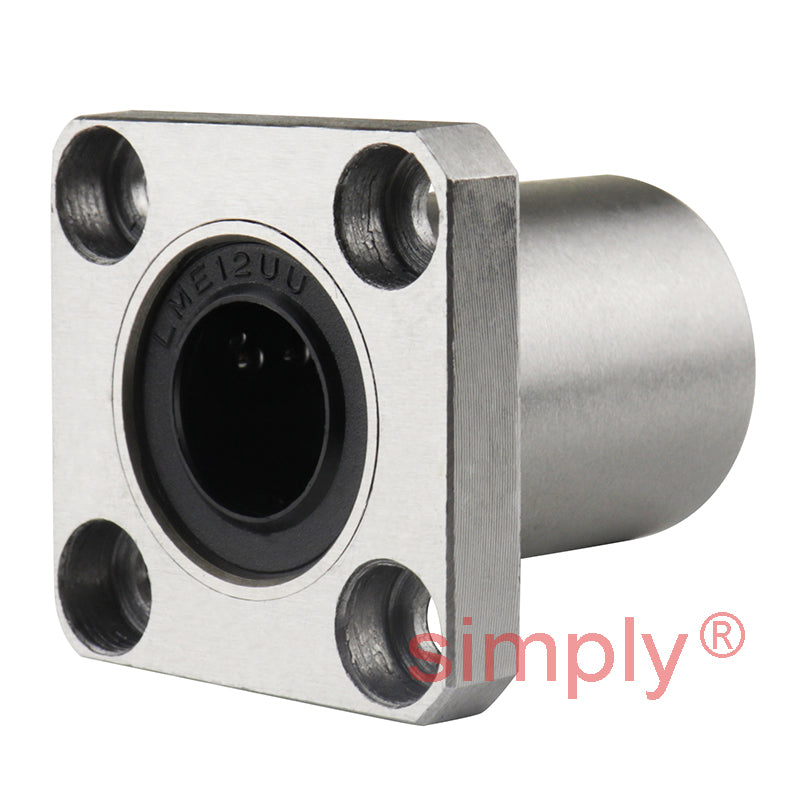

LMEK12UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm

LMEK12UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 12x22x32mm
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.97
5+ $19.79
9+ $19.56
19+ $19.32
49+ $19.09
74+ $18.85
99+ $17.67
199+ $17.44
249+ $17.20
499+ $16.96
999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
22mm
Length:
32mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 12mm
Bore Clearance +0.008/0mm
D 22mm
D Clearance 0/-0.009mm
L 32mm
L Clearance 0/-0.2mm
D<sub>1</sub> 42mm
D<sub>1</sub> Clearance 0/-0.2mm
H 6mm
PCD 32mm
K 32mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 12
Basic Load Rating - Dynamic C 410 N
Basic Load Rating - Static Co 590 N
No of Ball Rows 4
