SKU: LMEK-16-UU-EU

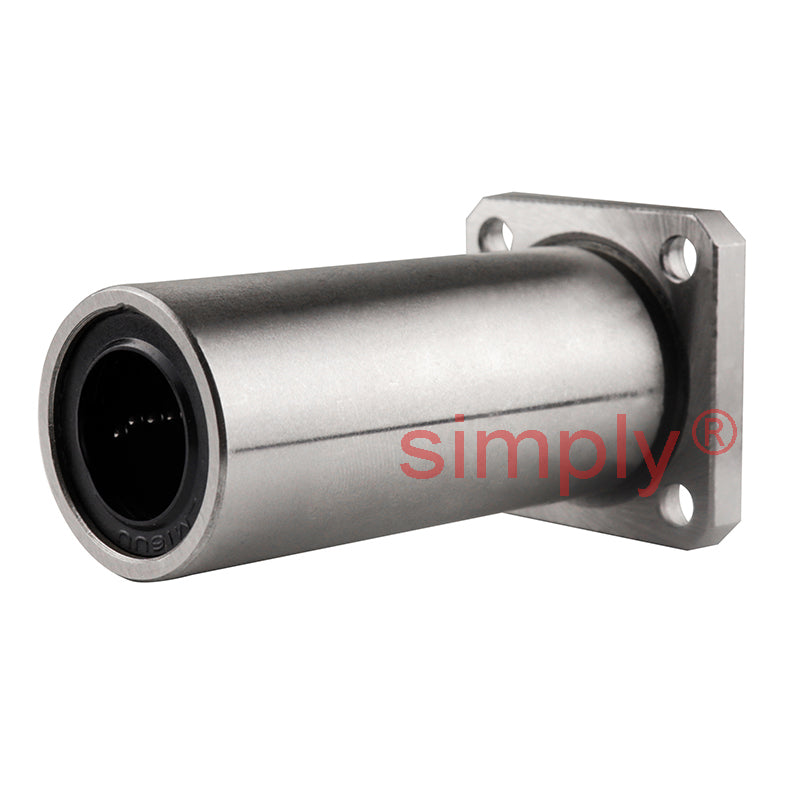

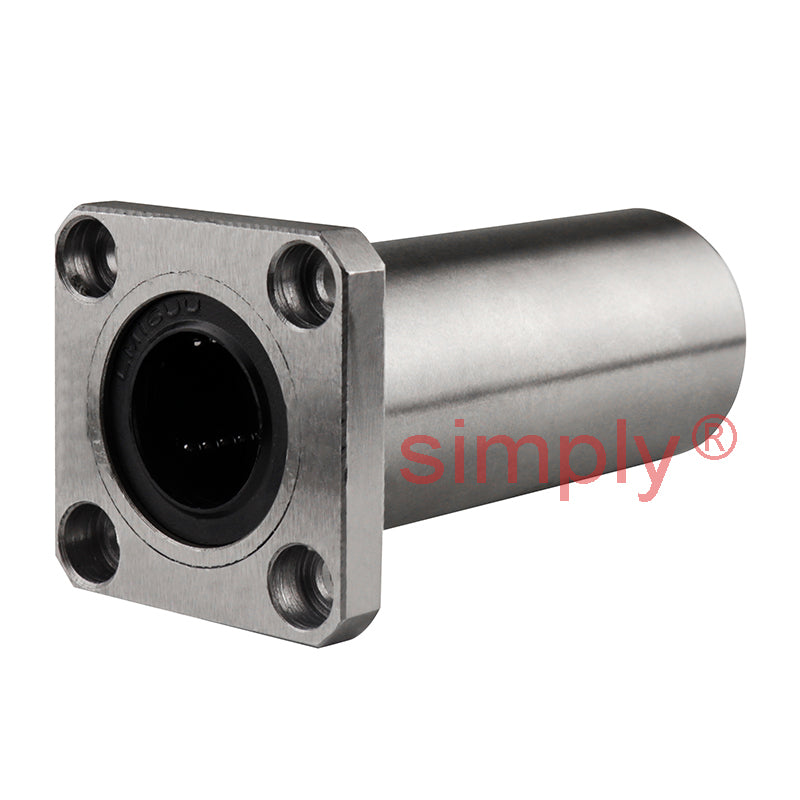

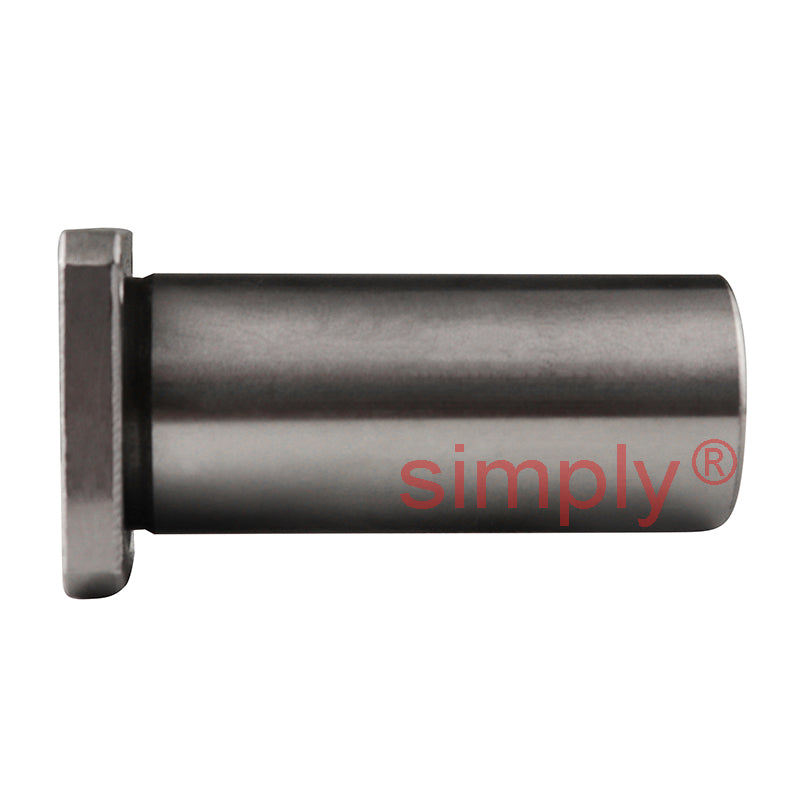

LMEK16UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 16x26x36mm

LMEK16UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 16x26x36mm
$39.85 ex VAT
$39.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.69
5+ $25.19
9+ $24.89
19+ $24.59
49+ $24.29
74+ $23.99
99+ $22.49
199+ $22.19
249+ $21.89
499+ $21.59
999+ $20.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
26mm
Length:
36mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 16mm
Bore Clearance +0.009/-0.001mm
D 26mm
D Clearance 0/-0.009mm
L 36mm
L Clearance 0/-0.2mm
D<sub>1</sub> 46mm
D<sub>1</sub> Clearance 0/-0.2mm
H 6mm
PCD 36mm
K 35mm
d<sub>1</sub> 4.5mm
d<sub>2</sub> 8mm
h 4.4mm
Squareness um 12
Basic Load Rating - Dynamic C 770 N
Basic Load Rating - Static Co 1170 N
No of Ball Rows 5
