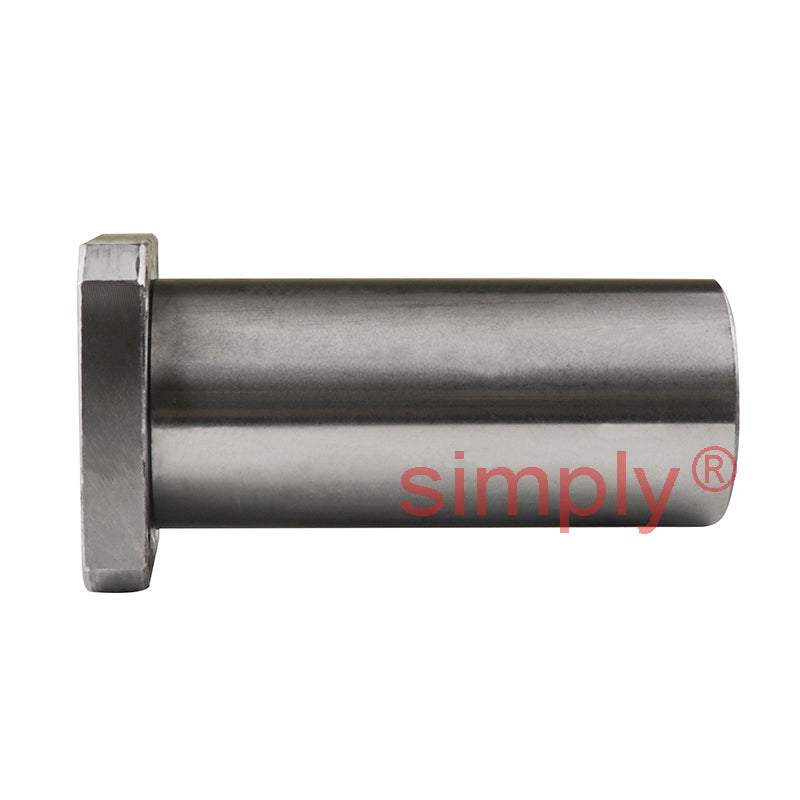

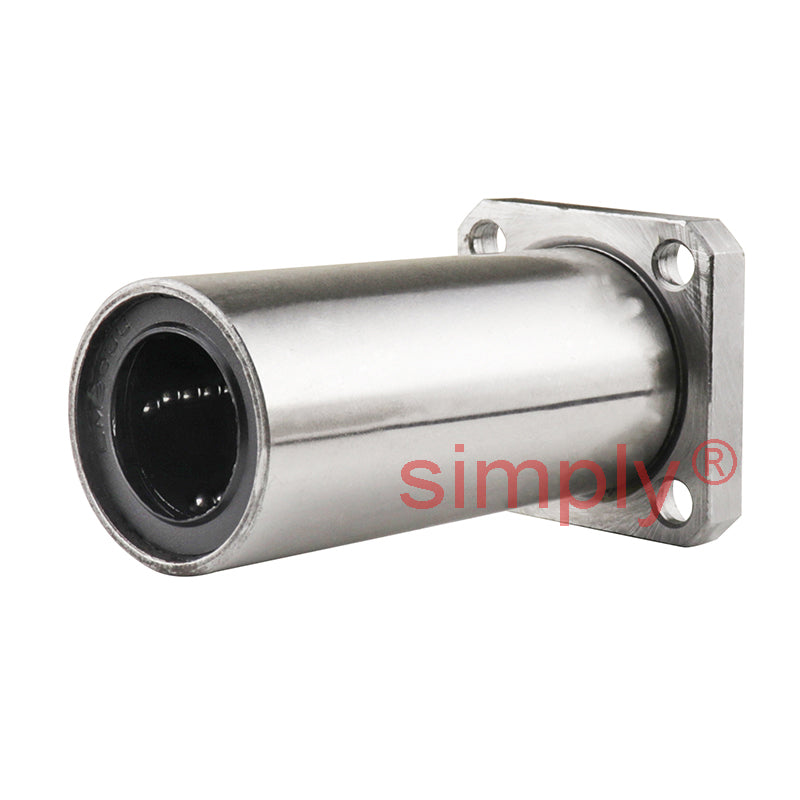

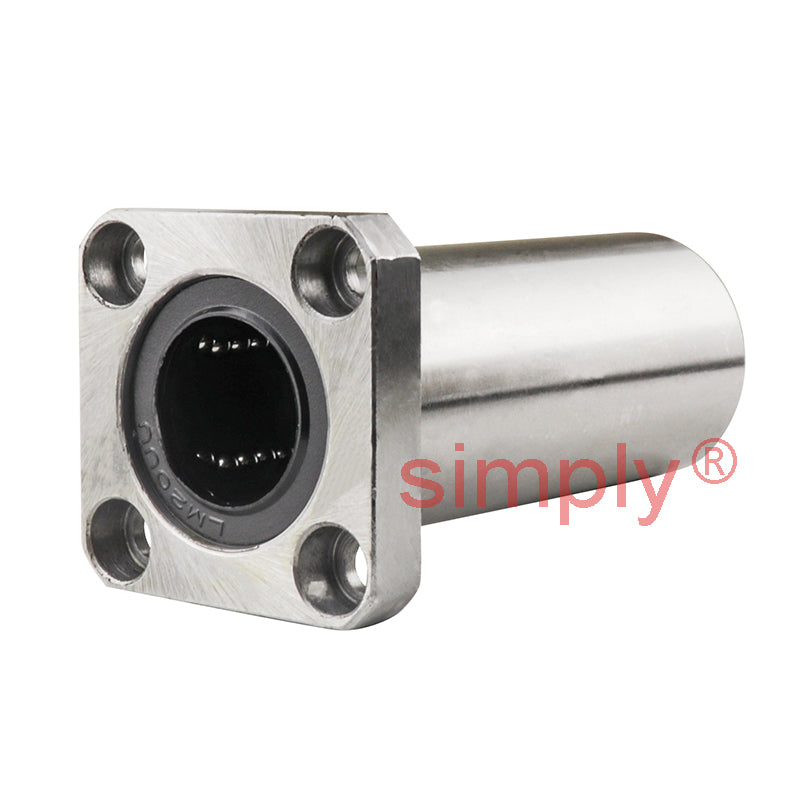

• LMEK20LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
  • LMEK20LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
  • LMEK20LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
1 3

SKU: LMEK-20-L-UU-EU

LMEK20LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm

LMEK20LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x80mm
$40.55 ex VAT
$40.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
5+ $25.64
9+ $25.33
19+ $25.03
49+ $24.72
74+ $24.42
99+ $22.89
199+ $22.59
249+ $22.28
499+ $21.98
999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
80mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 20mm
Bore Clearance +0.011/-0.001mm
D 32mm
D Clearance 0/-0.013mm
L 80mm
L Clearance 0/-0.3mm
D<sub>1</sub> 54mm
D<sub>1</sub> Clearance 0/-0.2mm
H 8mm
PCD 43mm
K 42mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 17
Basic Load Rating - Dynamic C 1400 N
Basic Load Rating - Static Co 2750 N
No of Ball Rows 5
