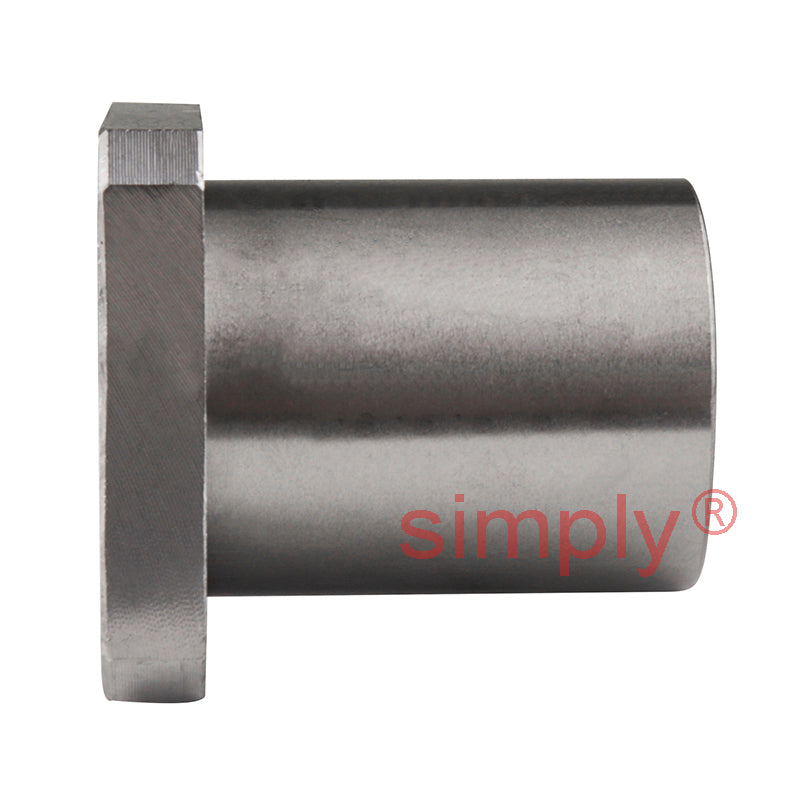

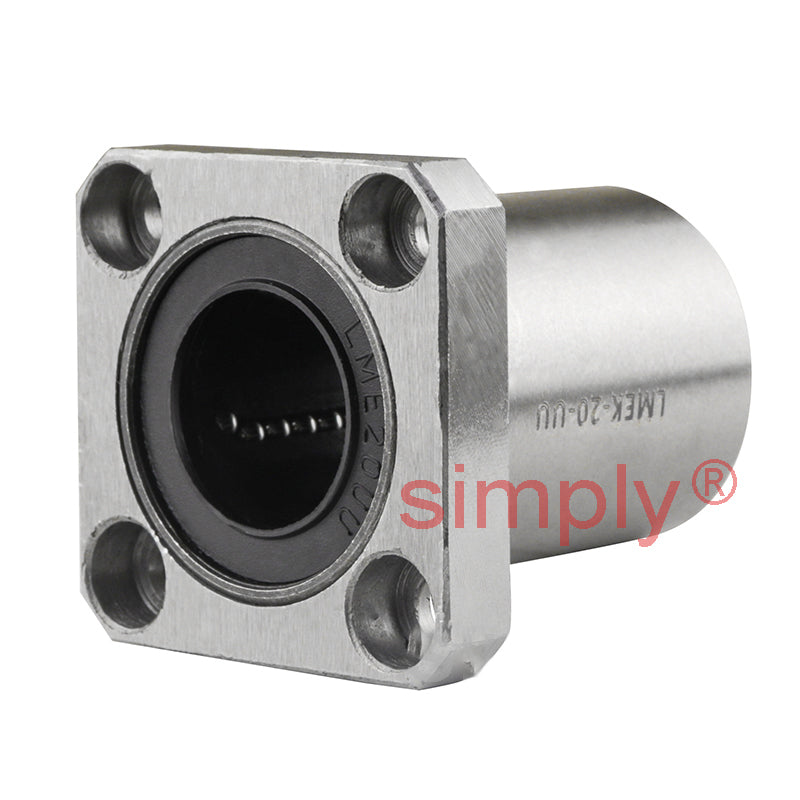

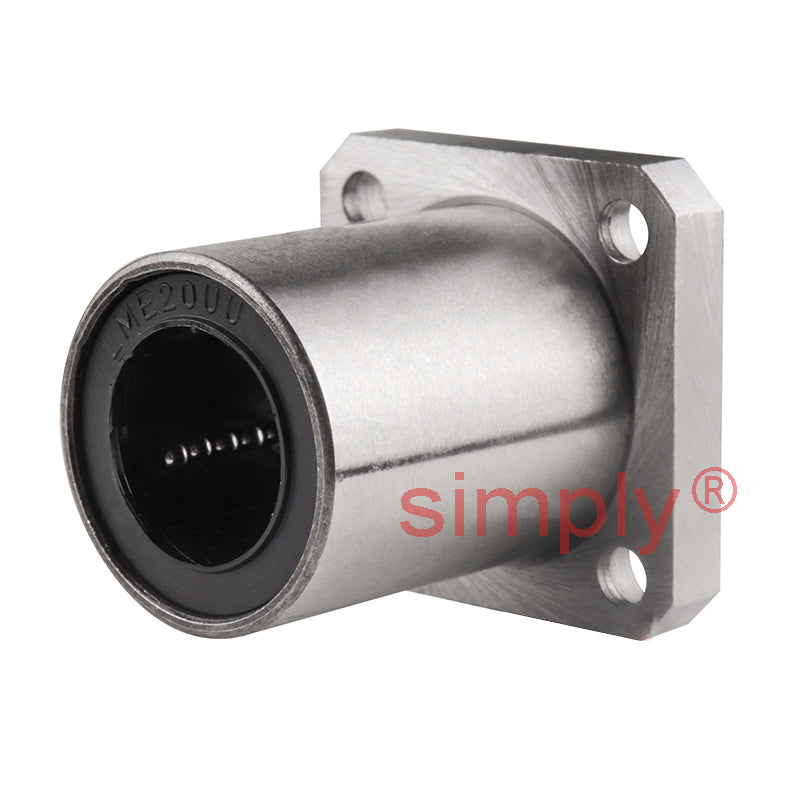

• LMEK20UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm
  • LMEK20UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm
  • LMEK20UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm
1 3

SKU: LMEK-20-UU-EU

LMEK20UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm

LMEK20UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 20x32x45mm
$31.30 ex VAT
$31.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.97
5+ $19.79
9+ $19.56
19+ $19.32
49+ $19.09
74+ $18.85
99+ $17.67
199+ $17.44
249+ $17.20
499+ $16.96
999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
45mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 20mm
Bore Clearance +0.009/-0.001mm
D 32mm
D Clearance 0/-0.011mm
L 45mm
L Clearance 0/-0.2mm
D<sub>1</sub> 54mm
D<sub>1</sub> Clearance 0/-0.2mm
H 8mm
PCD 43mm
K 42mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 15
Basic Load Rating - Dynamic C 860 N
Basic Load Rating - Static Co 1370 N
No of Ball Rows 5
