SKU: LMEK-25-L-UU-EU

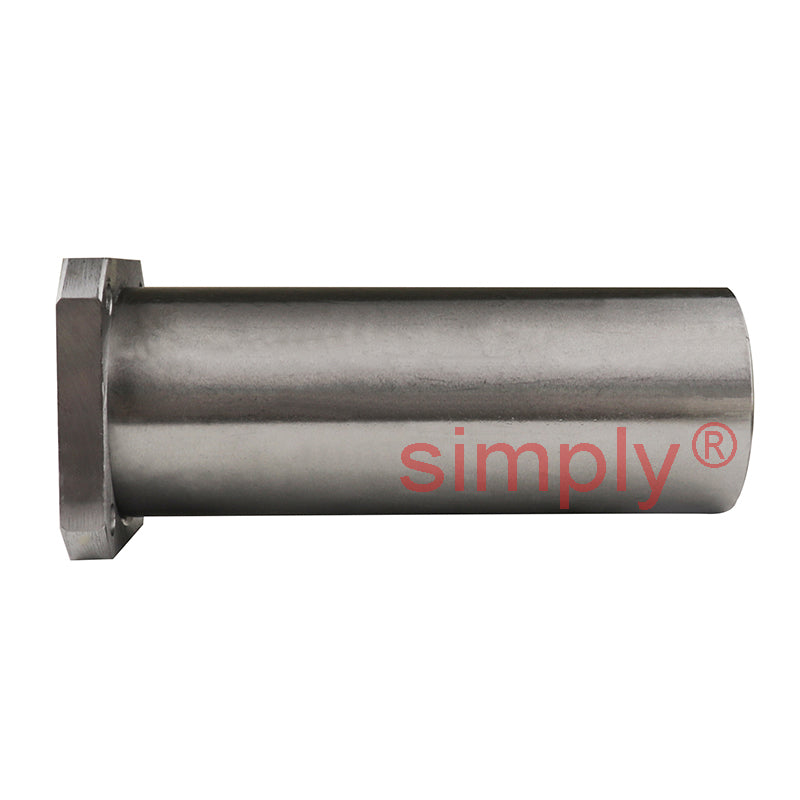

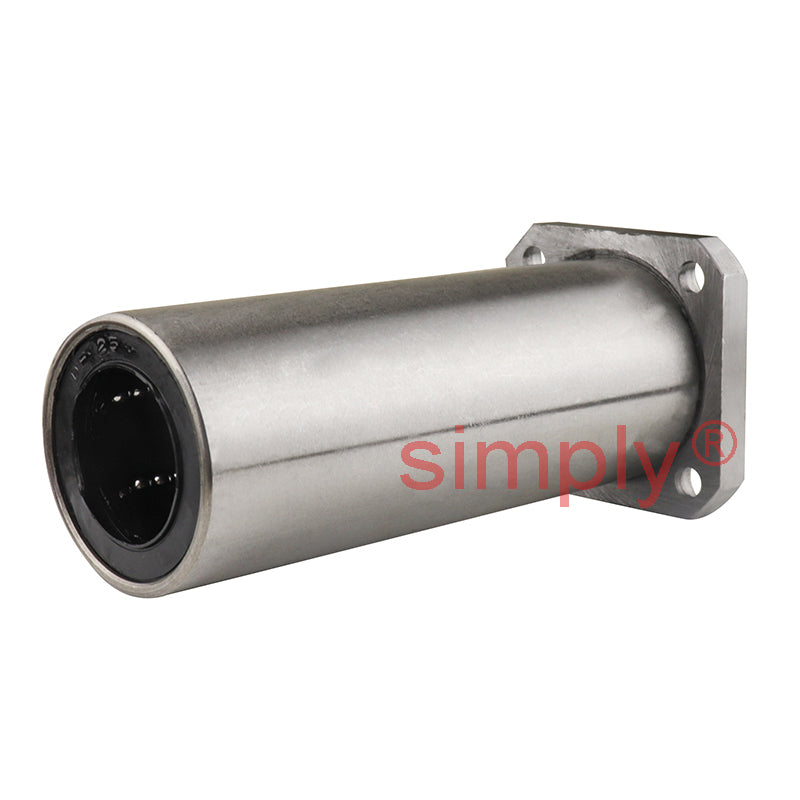

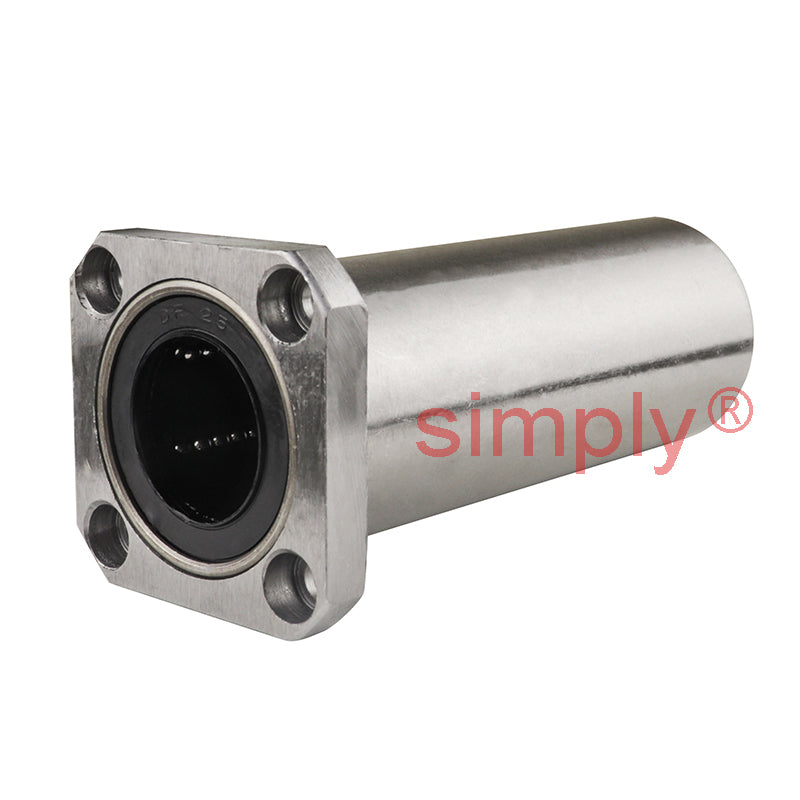

LMEK25LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm

LMEK25LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 25x40x112mm
$94.84 ex VAT
$94.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $63.53
5+ $59.96
9+ $59.25
19+ $58.53
49+ $57.82
74+ $57.11
99+ $53.54
199+ $52.82
249+ $52.11
499+ $51.40
999+ $49.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
40mm
Length:
112mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 25mm
Bore Clearance +0.013/-0.002mm
D 40mm
D Clearance 0/-0.013mm
L 112mm
L Clearance 0/-0.4mm
D<sub>1</sub> 62mm
D<sub>1</sub> Clearance 0/-0.2mm
H 8mm
PCD 51mm
K 50mm
d<sub>1</sub> 5.5mm
d<sub>2</sub> 9.5mm
h 5.4mm
Squareness um 17
Basic Load Rating - Dynamic C 1560 N
Basic Load Rating - Static Co 3140 N
No of Ball Rows 6
