SKU: LMEK-30-L-UU-EU

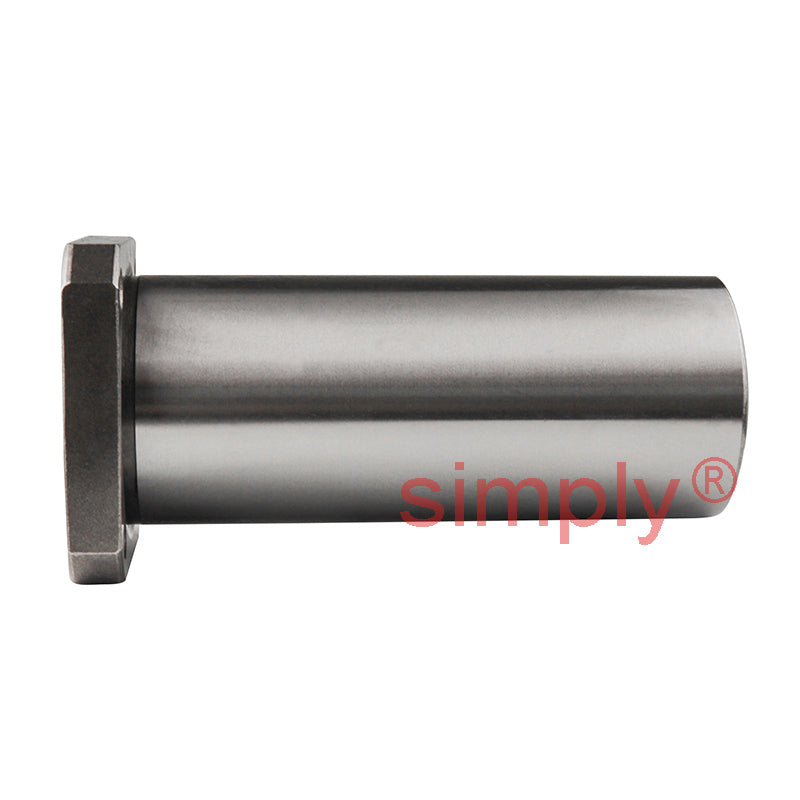

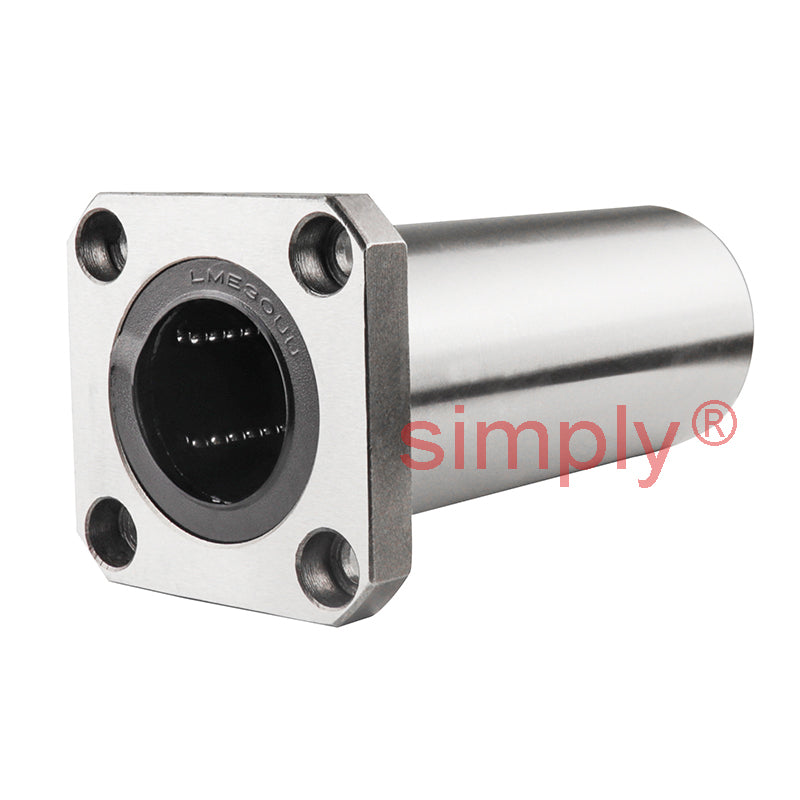

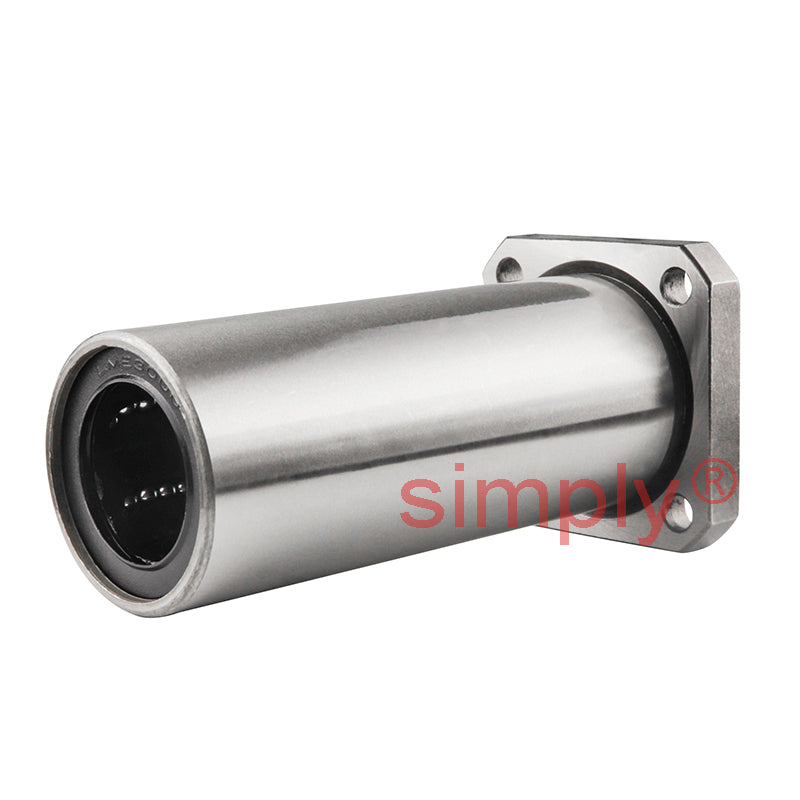

LMEK30LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x123mm

Name: LMEK30LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x123mm
Brand: Gen
SKU: LMEK-30-L-UU-EU
Price: 101.46 USD
Availability: InStock

$101.46 ex VAT

Sale Sold out

In stock

Price Break

3+ $67.96

5+ $64.14

9+ $63.38

19+ $62.62

49+ $61.85

74+ $61.09

99+ $57.27

199+ $56.51

249+ $55.74

499+ $54.98

999+ $53.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 47mm
Length:: 123mm
Seals / Shields:: Rubber Sealed

Technical

Working Bore Diameter dr.	30mm
Bore Clearance	+0.013/-0.002mm
D	47mm
D Clearance	0/-0.013mm
L	123mm
L Clearance	0/-0.4mm
D<sub>1</sub>	76mm
D<sub>1</sub> Clearance	0/-0.2mm
H	10mm
PCD	62mm
K	60mm
d<sub>1</sub>	6.6mm
d<sub>2</sub>	11mm
h	6.5mm
Squareness um	17
Basic Load Rating - Dynamic C	2490 N
Basic Load Rating - Static Co	5490 N
No of Ball Rows	6
