• LMEK30UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
  • LMEK30UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
  • LMEK30UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
1 3

SKU: LMEK-30-UU-EU

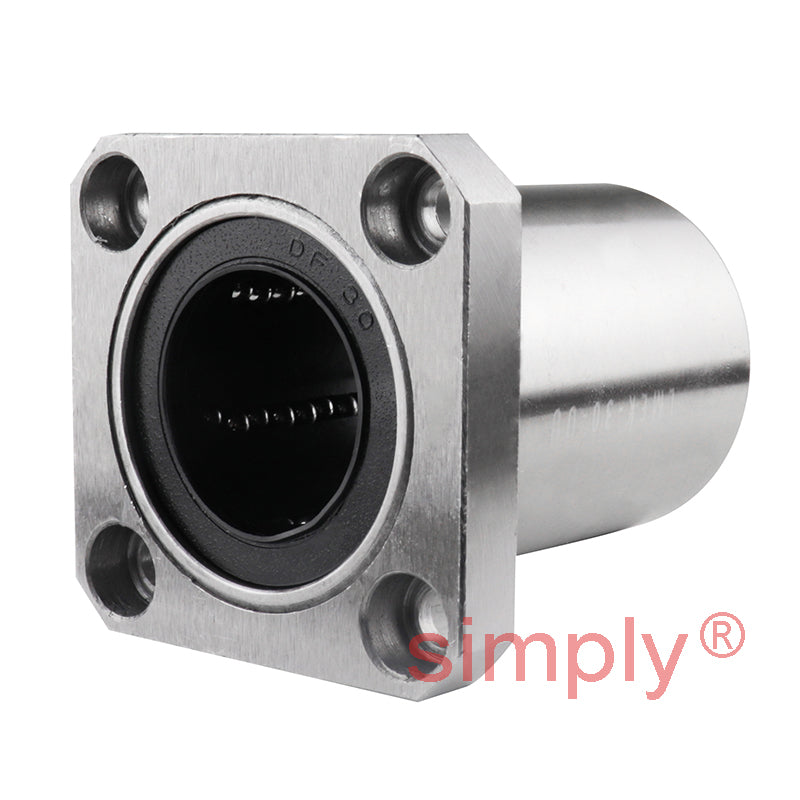

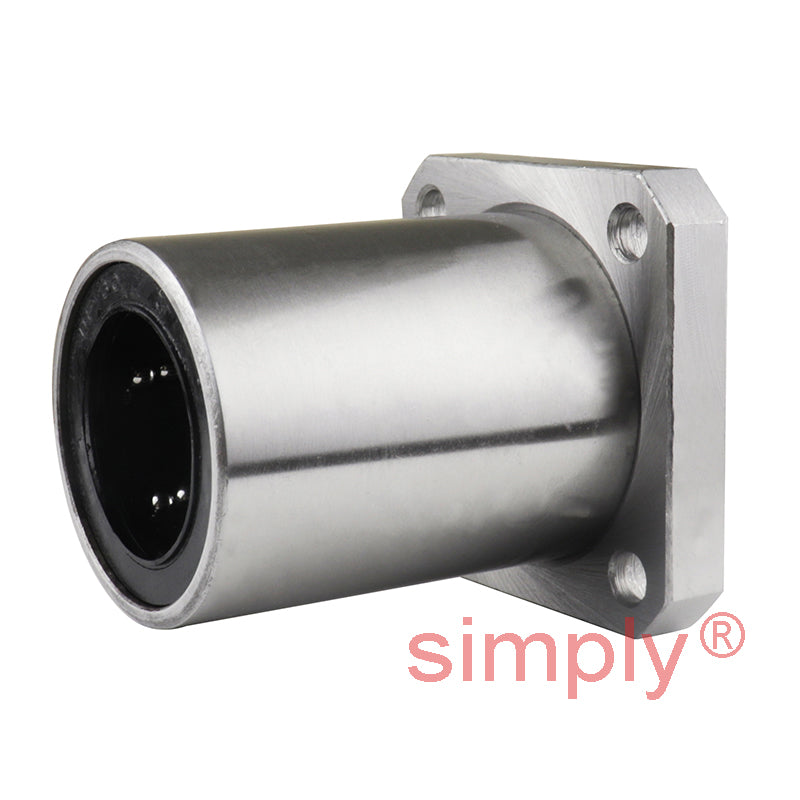

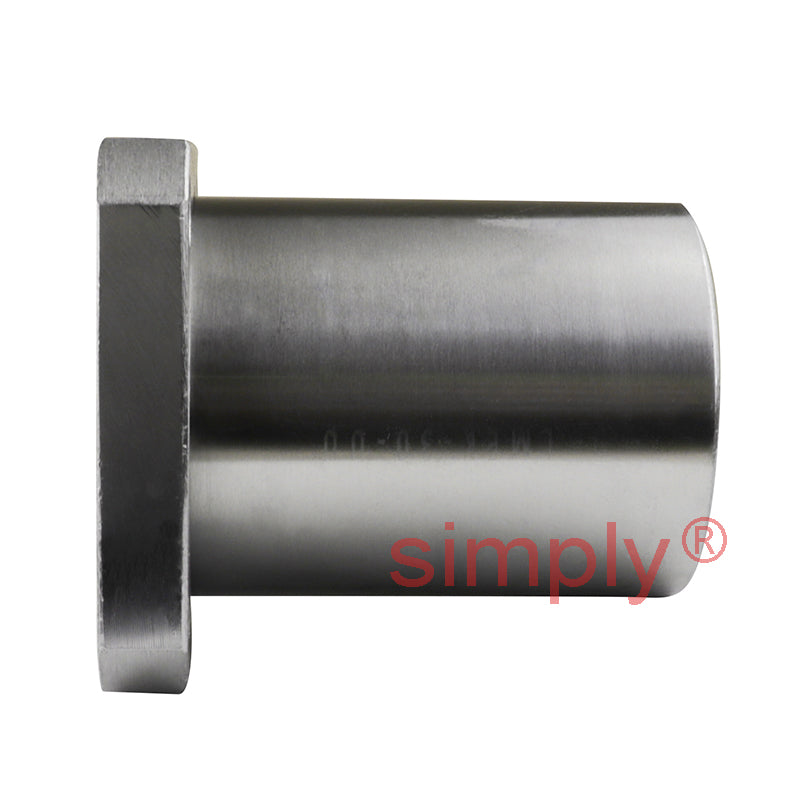

LMEK30UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm

LMEK30UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 30x47x68mm
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $36.03
5+ $34.01
9+ $33.60
19+ $33.20
49+ $32.79
74+ $32.39
99+ $30.36
199+ $29.96
249+ $29.55
499+ $29.15
999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Length:
68mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 30mm
Bore Clearance +0.011/-0.001mm
D 47mm
D Clearance 0/-0.011mm
L 68mm
L Clearance 0/-0.3mm
D<sub>1</sub> 76mm
D<sub>1</sub> Clearance 0/-0.2mm
H 10mm
PCD 62mm
K 60mm
d<sub>1</sub> 6.6mm
d<sub>2</sub> 11mm
h 6.5mm
Squareness um 15
Basic Load Rating - Dynamic C 1560 N
Basic Load Rating - Static Co 2740 N
No of Ball Rows 6
