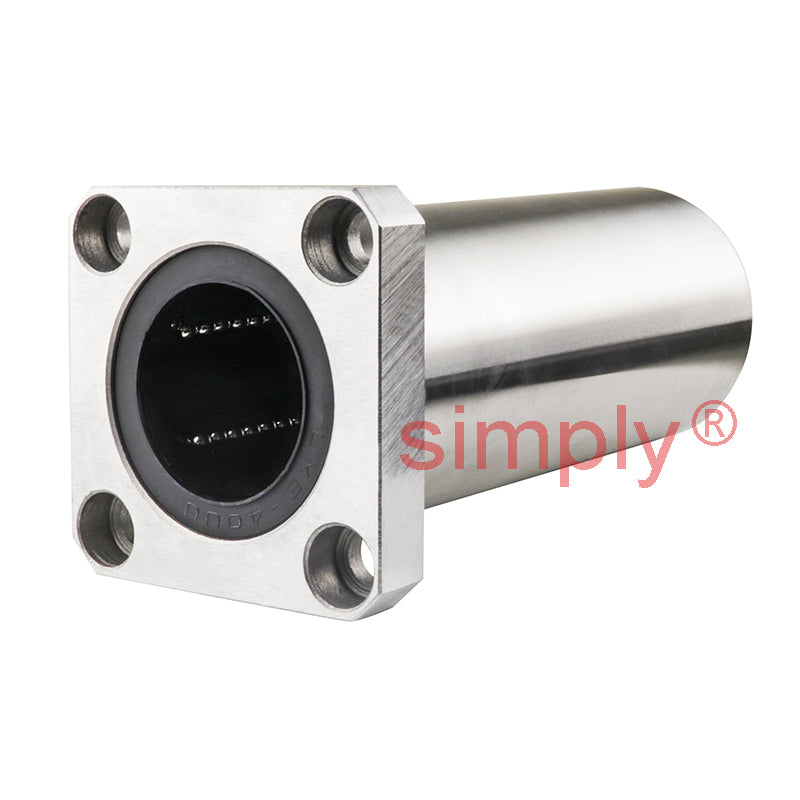

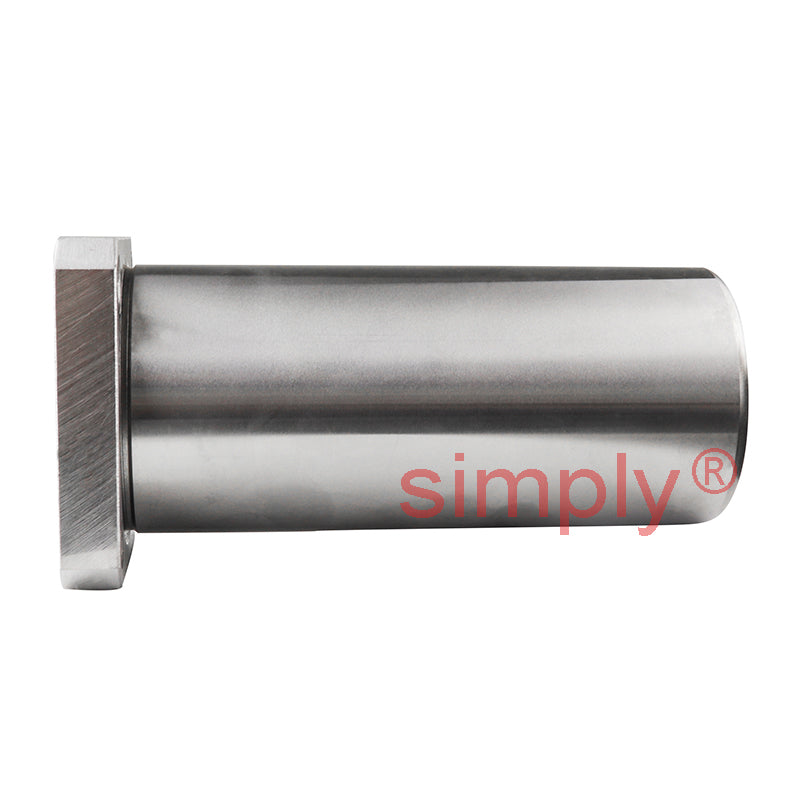

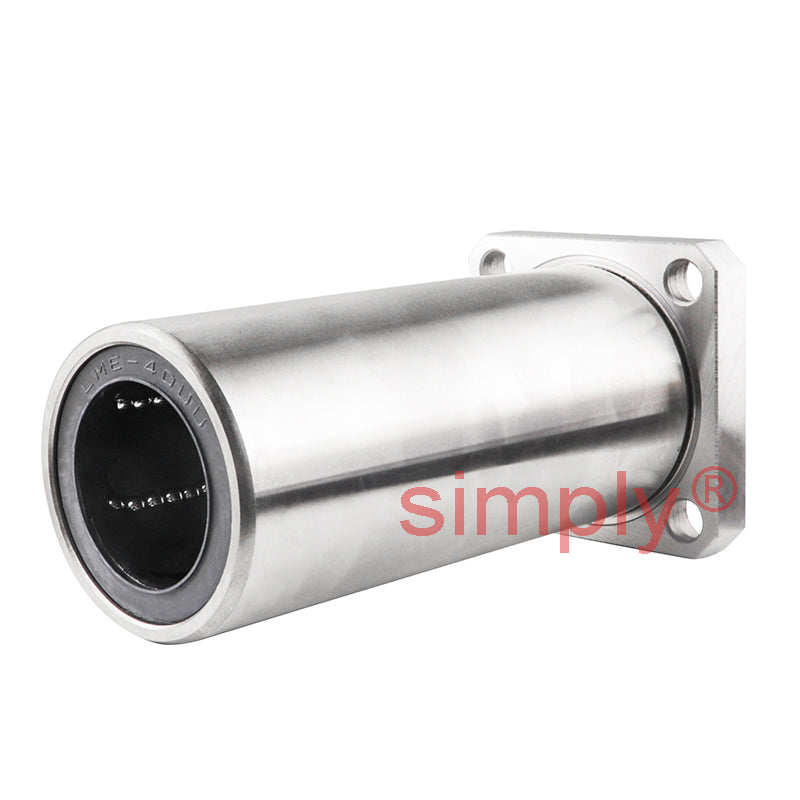

• LMEK40LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x151mm
  • LMEK40LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x151mm
  • LMEK40LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x151mm
1 3

SKU: LMEK-40-L-UU-EU

LMEK40LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x151mm

LMEK40LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x151mm
$196.38 ex VAT
$196.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.54
5+ $124.15
9+ $122.67
19+ $121.19
49+ $119.72
74+ $118.24
99+ $110.85
199+ $109.37
249+ $107.89
499+ $106.41
999+ $103.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Length:
151mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 40mm
Bore Clearance +0.016/-0.004mm
D 62mm
D Clearance 0/-0.015mm
L 151mm
L Clearance 0/-0.4mm
D<sub>1</sub> 98mm
D<sub>1</sub> Clearance 0/-0.3mm
H 13mm
PCD 80mm
K 5mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20
Basic Load Rating - Dynamic C 3430 N
Basic Load Rating - Static Co 8040 N
No of Ball Rows 6
