SKU: LMEK-40-UU-EU

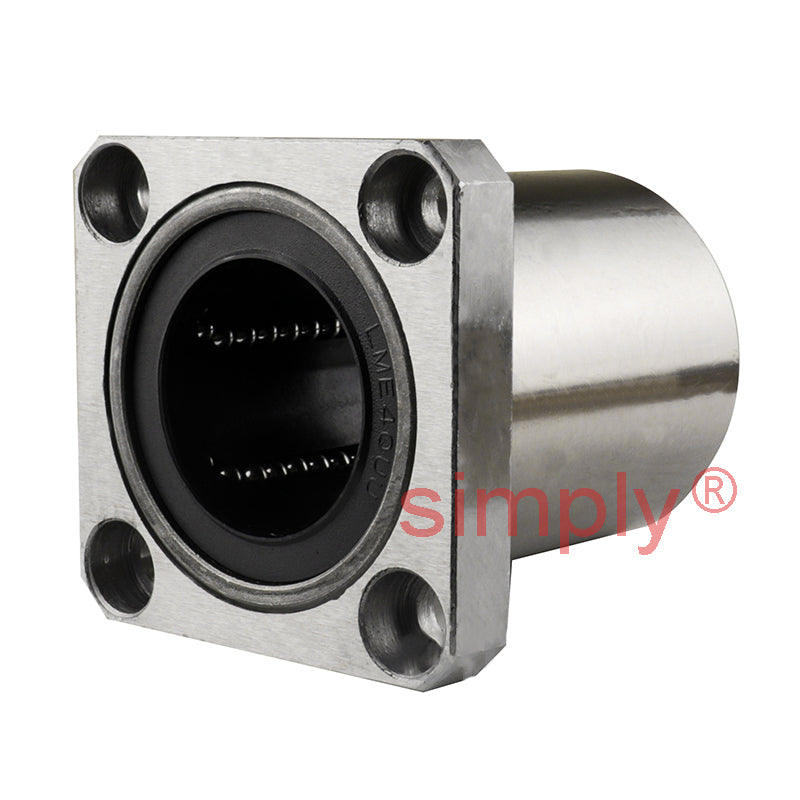

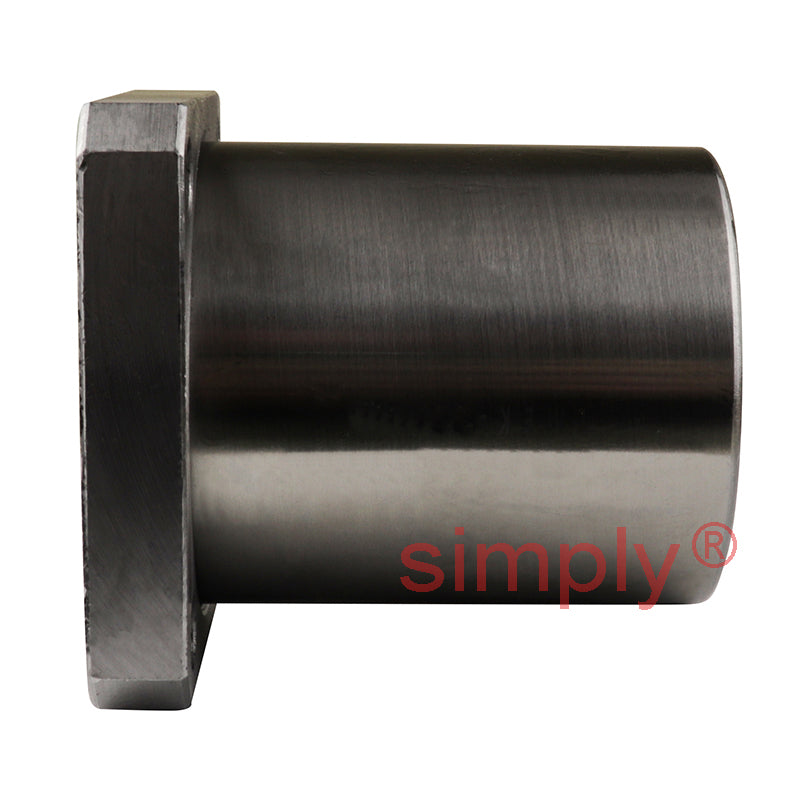

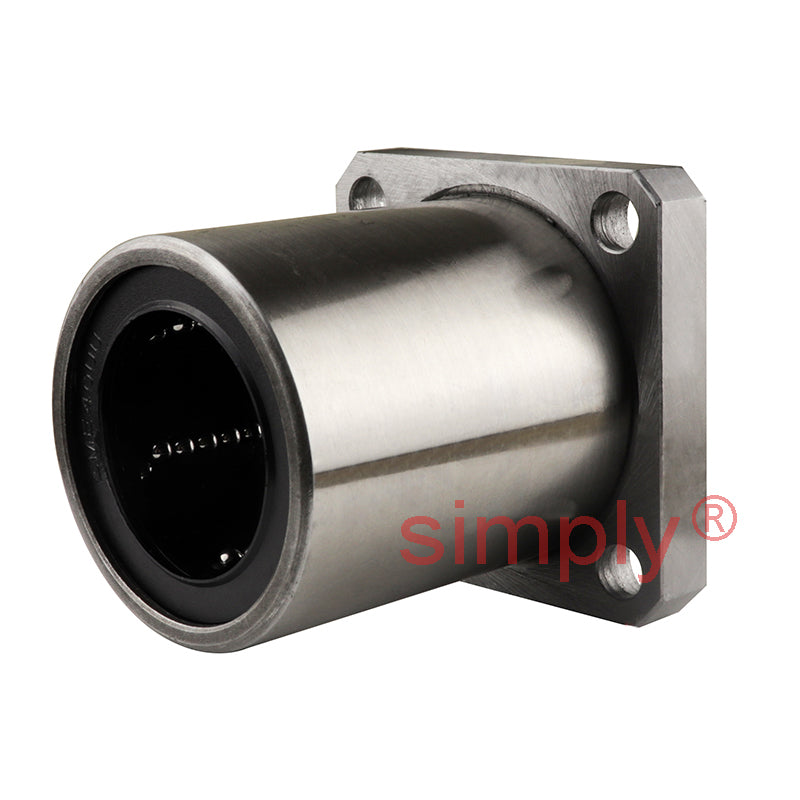

LMEK40UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x80mm

LMEK40UU Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 40x62x80mm
$89.22 ex VAT
$89.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $59.77
5+ $56.41
9+ $55.74
19+ $55.06
49+ $54.39
74+ $53.72
99+ $50.36
199+ $49.69
249+ $49.02
499+ $48.35
999+ $47.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Length:
80mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 40mm
Bore Clearance +0.013/-0.002mm
D 62mm
D Clearance 0/-0.013mm
L 80mm
L Clearance 0/-0.3mm
D<sub>1</sub> 98mm
D<sub>1</sub> Clearance 0/-0.3mm
H 13mm
PCD 80mm
K 75mm
d<sub>1</sub> 9mm
d<sub>2</sub> 14mm
h 8.6mm
Squareness um 20
Basic Load Rating - Dynamic C 2150 N
Basic Load Rating - Static Co 4010 N
No of Ball Rows 6
