SKU: LMEK-8-L-UU-EU

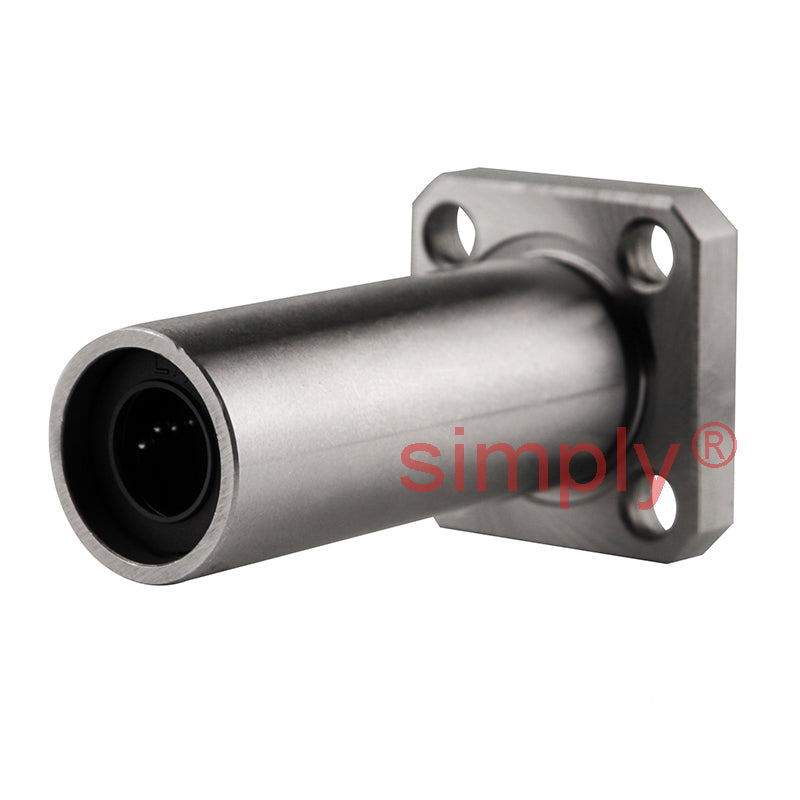

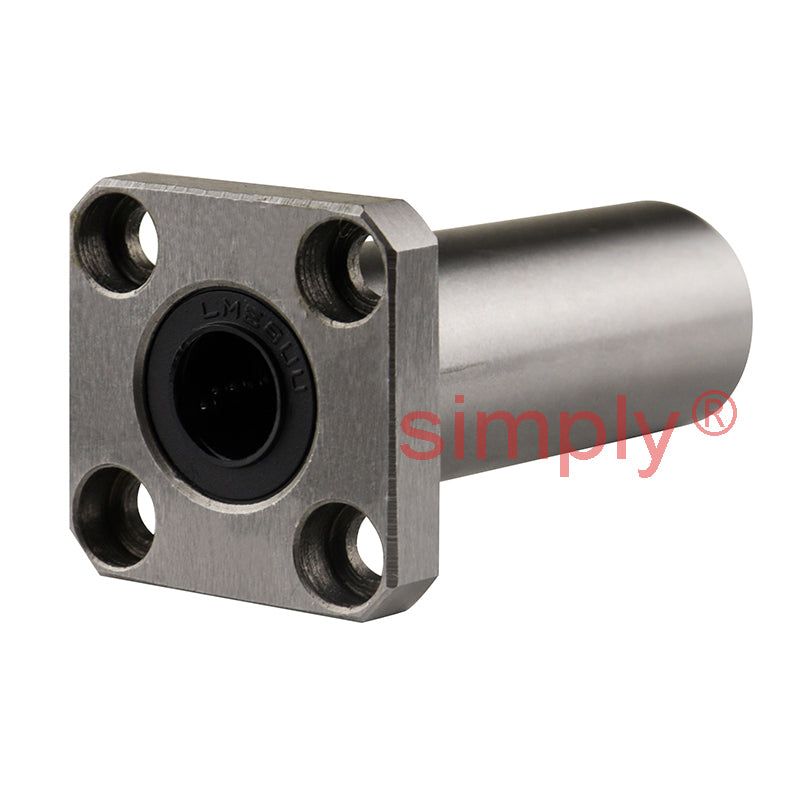

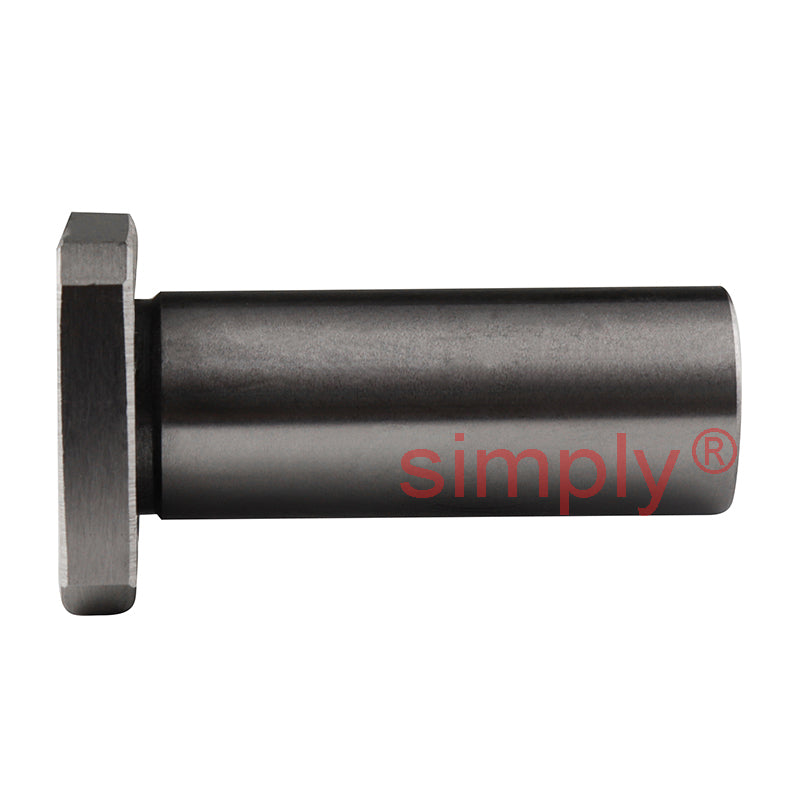

LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm

LMEK8LUU Long Square Flanged Linear Ball Bushing with Rubber Seals and Resin Retainer 8x16x46mm
$39.85 ex VAT
$39.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.69
5+ $25.19
9+ $24.89
19+ $24.59
49+ $24.29
74+ $23.99
99+ $22.49
199+ $22.19
249+ $21.89
499+ $21.59
999+ $20.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
8mm
Outside Diameter:
16mm
Length:
46mm
Seals / Shields:
Rubber Sealed
Technical
Working Bore Diameter dr. 8mm
Bore Clearance +0.009/-0.001mm
D 16mm
D Clearance 0/-0.009mm
L 46mm
L Clearance 0/-0.3mm
D<sub>1</sub> 32mm
D<sub>1</sub> Clearance 0/-0.2mm
H 5mm
PCD 24mm
K 25mm
d<sub>1</sub> 3.4mm
d<sub>2</sub> 6.5mm
h 3.3mm
Squareness um 15
Basic Load Rating - Dynamic C 430 N
Basic Load Rating - Static Co 780 N
No of Ball Rows 4
