SKU: LMF10-L-UU-EU

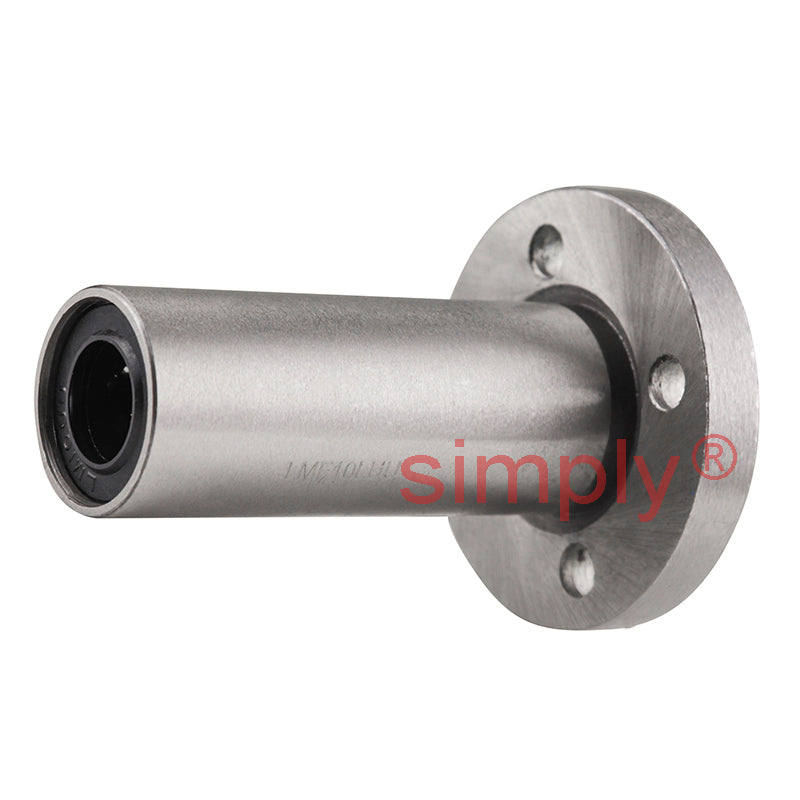

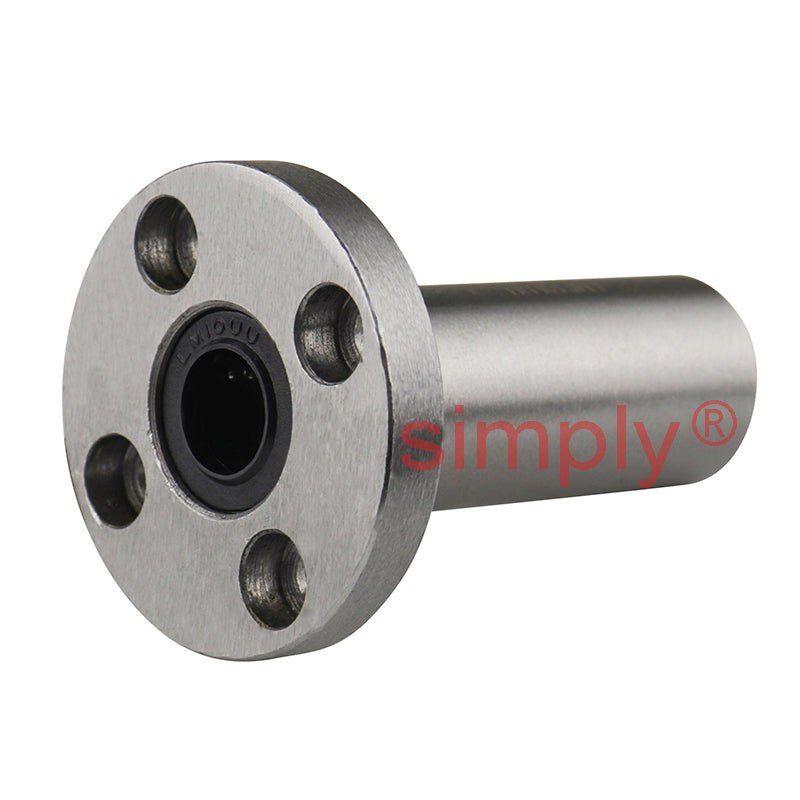

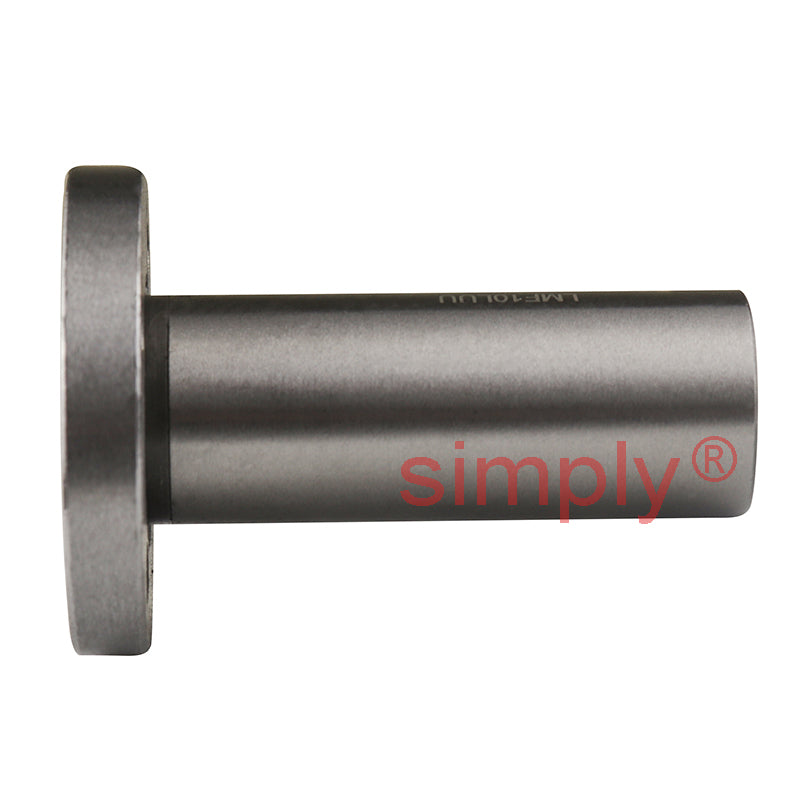

LMF10LUU Long Series Metric Round Flanged Linear Ball Bushing 10x19x55mm

Name: LMF10LUU Long Series Metric Round Flanged Linear Ball Bushing 10x19x55mm
Brand: Gen
SKU: LMF10-L-UU-EU
Price: 16.37 USD
Availability: InStock

$16.37 ex VAT

Sale Sold out

In stock

Price Break

3+ $10.96

5+ $10.35

9+ $10.22

19+ $10.10

49+ $9.98

74+ $9.85

99+ $9.24

199+ $9.11

249+ $8.99

499+ $8.87

999+ $8.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 10mm
Outside Diameter:: 19mm
Length:: 55mm
Seals / Shields:: Rubber Sealed

Technical

Ball Rows	4
dr	10mm
dr Tolerance	0 to -0.010mm
D	19mm
D Tolerance	0 to -0.016mm
L	55mm
L Tolerance	0 to -0.3mm
D1	39mm
D1 Tolerance	0 to -0.2mm
H	6mm
PCD	29mm
Mounting Hole	4.5x8x4.4mm
Basic Load Dynamic Rating C	588N
Basic Load Static Rating C0	1100N
Mass	0.081g
Material	Standard
Style	Round Flanged
