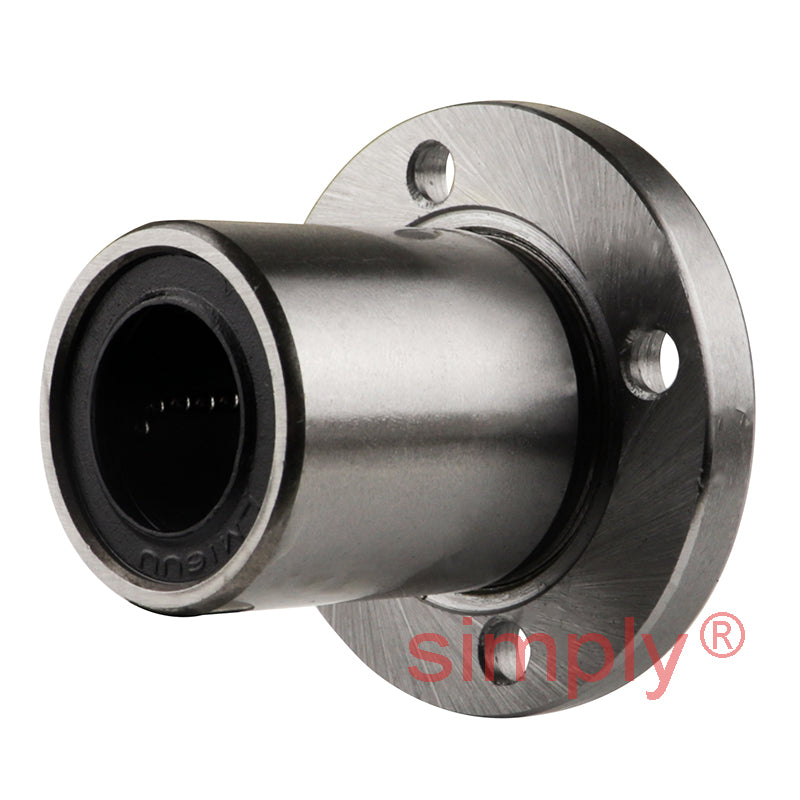

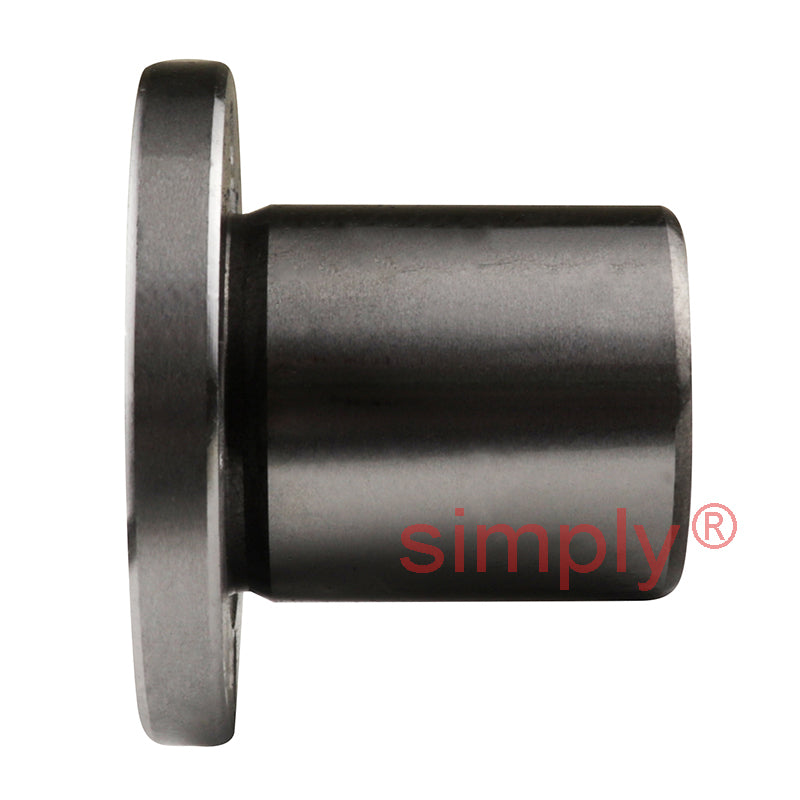

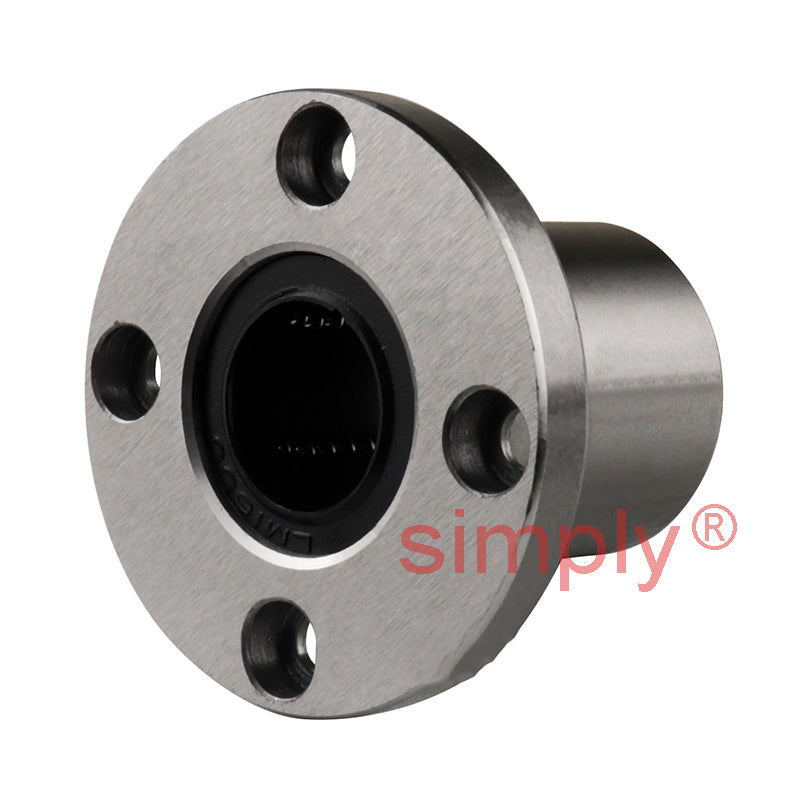

• LMF16UU Metric Round Flanged Linear Ball Bushing 16x28x37mm
  • LMF16UU Metric Round Flanged Linear Ball Bushing 16x28x37mm
  • LMF16UU Metric Round Flanged Linear Ball Bushing 16x28x37mm
1 3

SKU: LMF16-UU-EU

LMF16UU Metric Round Flanged Linear Ball Bushing 16x28x37mm

LMF16UU Metric Round Flanged Linear Ball Bushing 16x28x37mm
$13.62 ex VAT
$13.62 ex VAT
Sale Sold out

Equivalent to: LHFR16

In stock

Price Break
3+ $9.12
5+ $8.61
9+ $8.50
19+ $8.40
49+ $8.30
74+ $8.20
99+ $7.68
199+ $7.58
249+ $7.48
499+ $7.38
999+ $7.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
28mm
Length:
37mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 5
dr 16mm
dr Tolerance 0 to -0.009mm
D 28mm
D Tolerance 0 to -0.013mm
L 37mm
L Tolerance 0 to -0.2mm
D1 48mm
D1 Tolerance 0 to -0.2mm
H 6mm
PCD 38mm
Mounting Hole 4.5x8x4.4mm
Basic Load Dynamic Rating C 775N
Basic Load Static Rating C0 1180N
Mass 0.126g
Material Standard
Style Round Flanged
