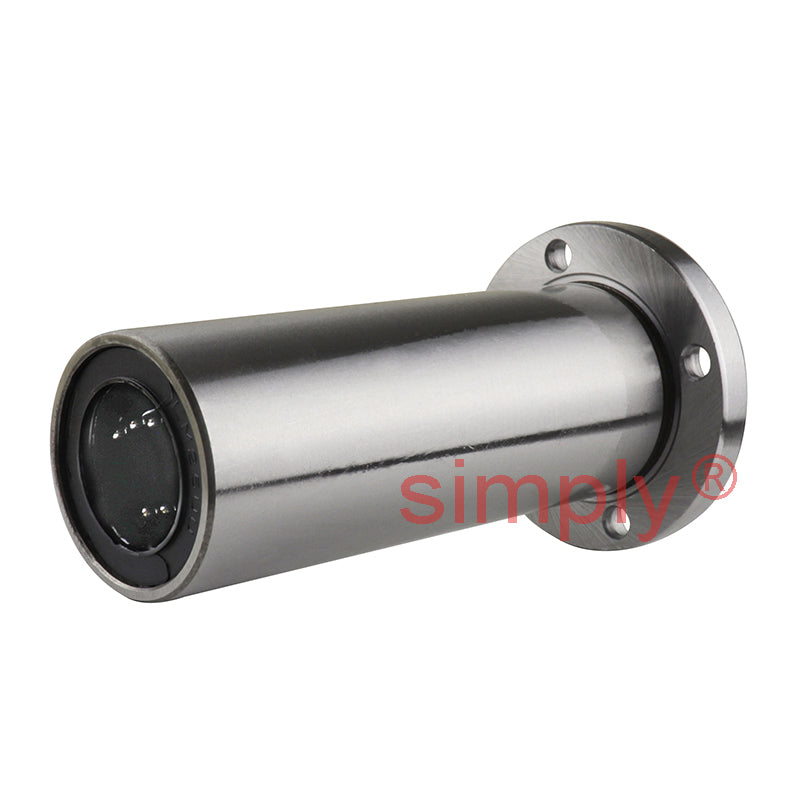

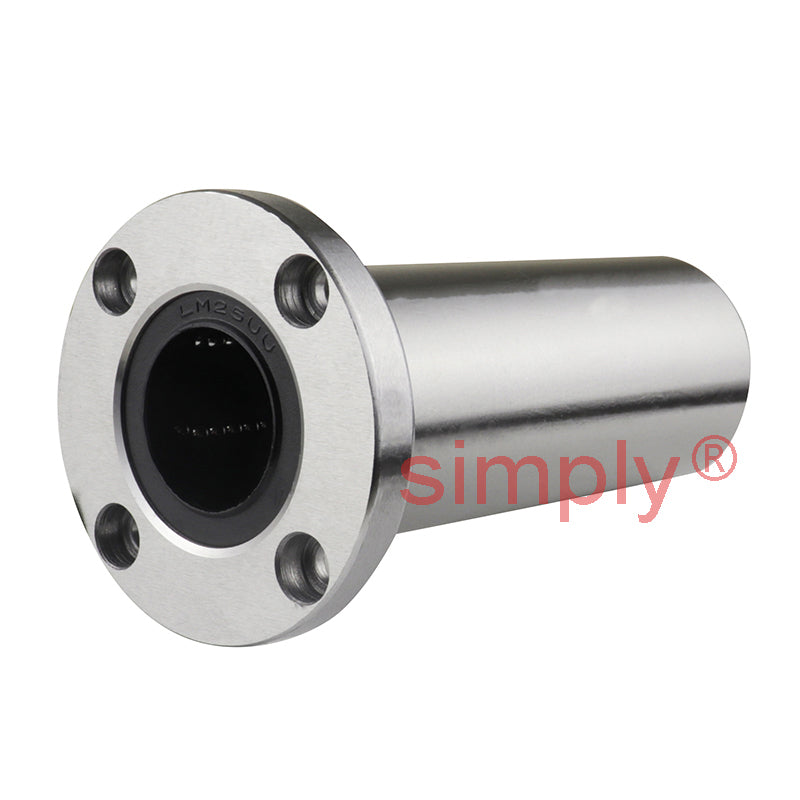

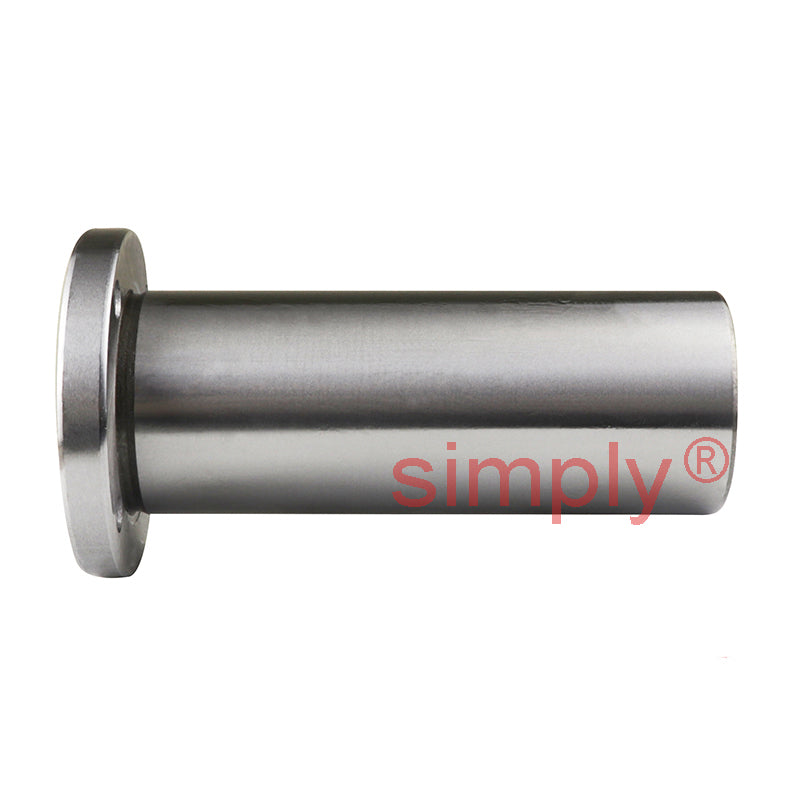

LMF25LUU Long Series Metric Round Flanged Linear Ball Bushing 25x40x112mm

Name: LMF25LUU Long Series Metric Round Flanged Linear Ball Bushing 25x40x112mm
Brand: Gen
SKU: LMF25-L-UU-EU
Price: 28.46 USD
Availability: InStock

$28.46 ex VAT

Sale Sold out

In stock

Price Break

3+ $19.06

5+ $17.99

9+ $17.78

19+ $17.56

49+ $17.35

74+ $17.14

99+ $16.07

199+ $15.85

249+ $15.64

499+ $15.42

999+ $14.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 40mm
Length:: 112mm
Seals / Shields:: Rubber Sealed

Technical

Ball Rows	6
dr	25mm
dr Tolerance	0 to -0.012mm
D	40mm
D Tolerance	0 to -0.019mm
L	112mm
L Tolerance	0 to -0.4mm
D1	62mm
D1 Tolerance	0 to -0.2mm
H	8mm
PCD	51mm
Mounting Hole	5.5x9.2x5.4mm
Basic Load Dynamic Rating C	1560N
Basic Load Static Rating C0	3140N
Mass	0.5g
Material	Standard
Style	Round Flanged
