SKU: LMF30-L-UU-EU

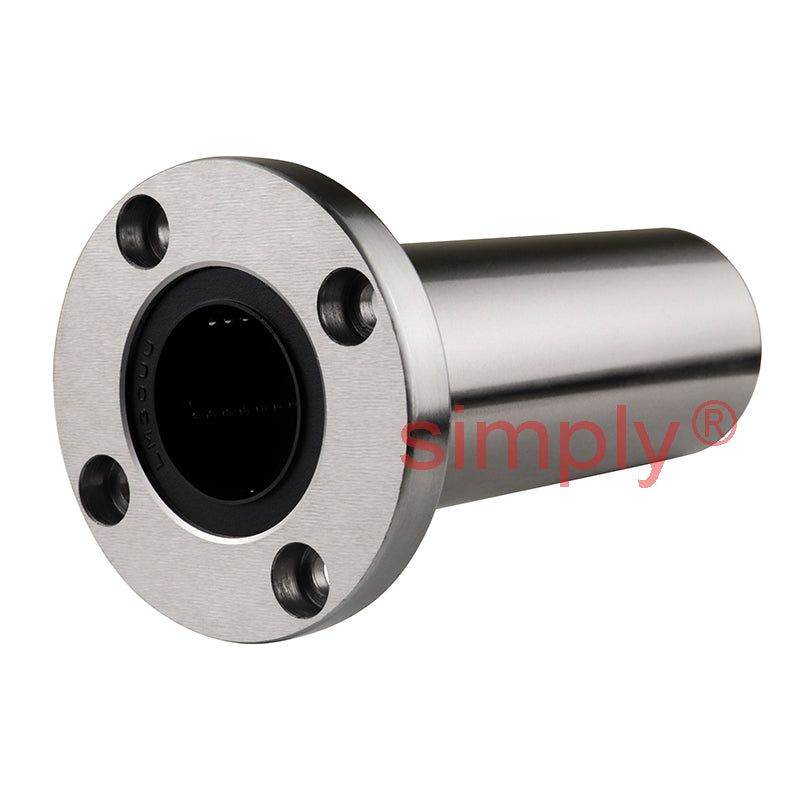

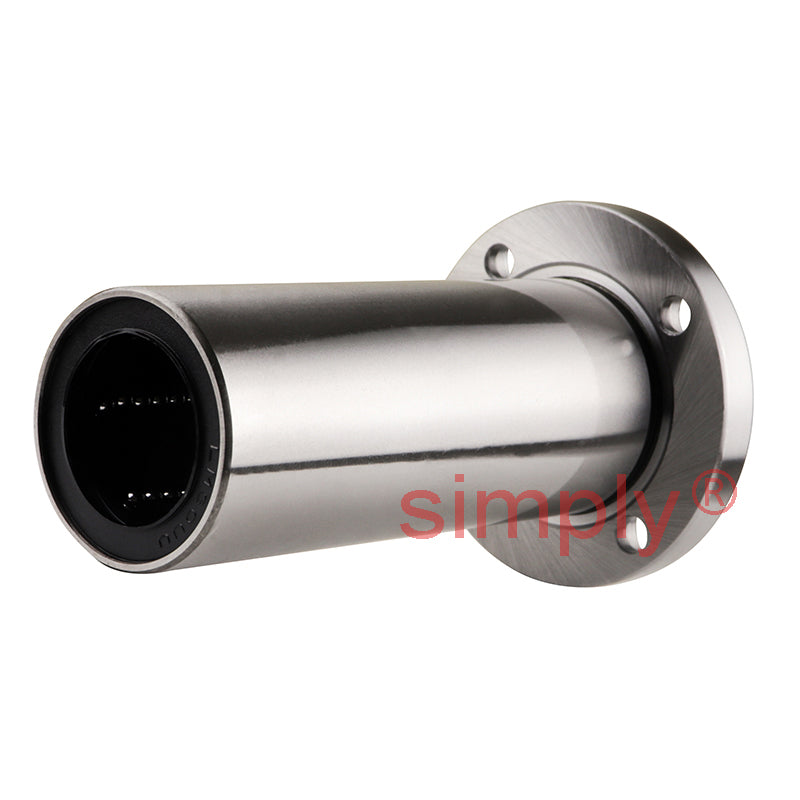

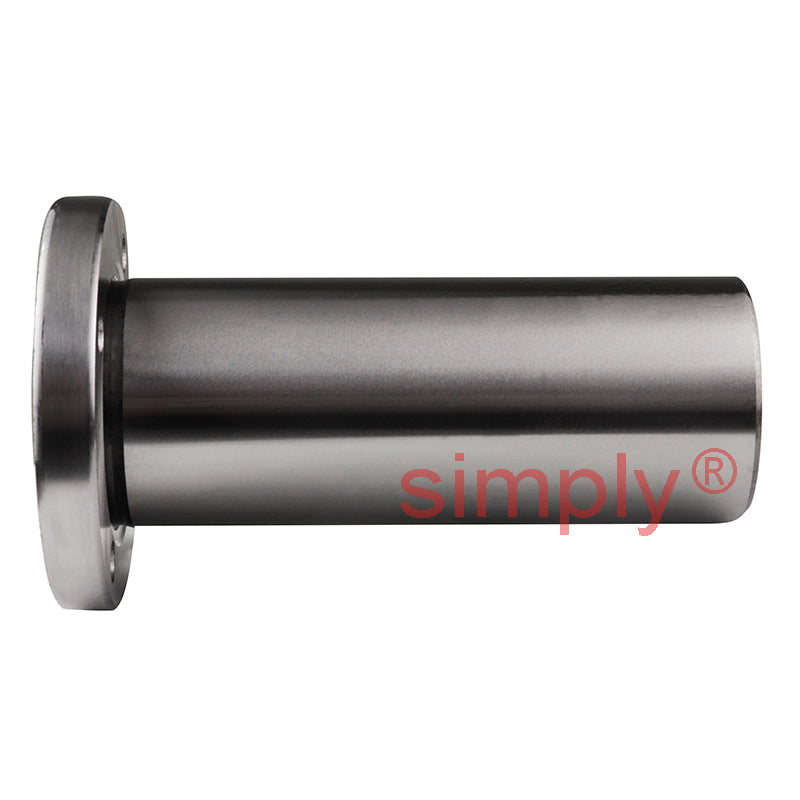

LMF30LUU Long Series Metric Round Flanged Linear Ball Bushing 30x45x123mm

Name: LMF30LUU Long Series Metric Round Flanged Linear Ball Bushing 30x45x123mm
Brand: Gen
SKU: LMF30-L-UU-EU
Price: 31.30 USD
Availability: InStock

$31.30 ex VAT

Sale Sold out

In stock

Price Break

3+ $20.97

5+ $19.79

9+ $19.56

19+ $19.32

49+ $19.09

74+ $18.85

99+ $17.67

199+ $17.44

249+ $17.20

499+ $16.96

999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 45mm
Length:: 123mm
Seals / Shields:: Rubber Sealed

Technical

Ball Rows	6
dr	30mm
dr Tolerance	0 to -0.012mm
D	45mm
D Tolerance	0 to -0.019mm
L	123mm
L Tolerance	0 to -0.4mm
D1	74mm
D1 Tolerance	0 to -0.2mm
H	10mm
PCD	60mm
Mounting Hole	6.6x11x6.5mm
Basic Load Dynamic Rating C	2490N
Basic Load Static Rating C0	5490N
Mass	0.646g
Material	Standard
Style	Round Flanged
