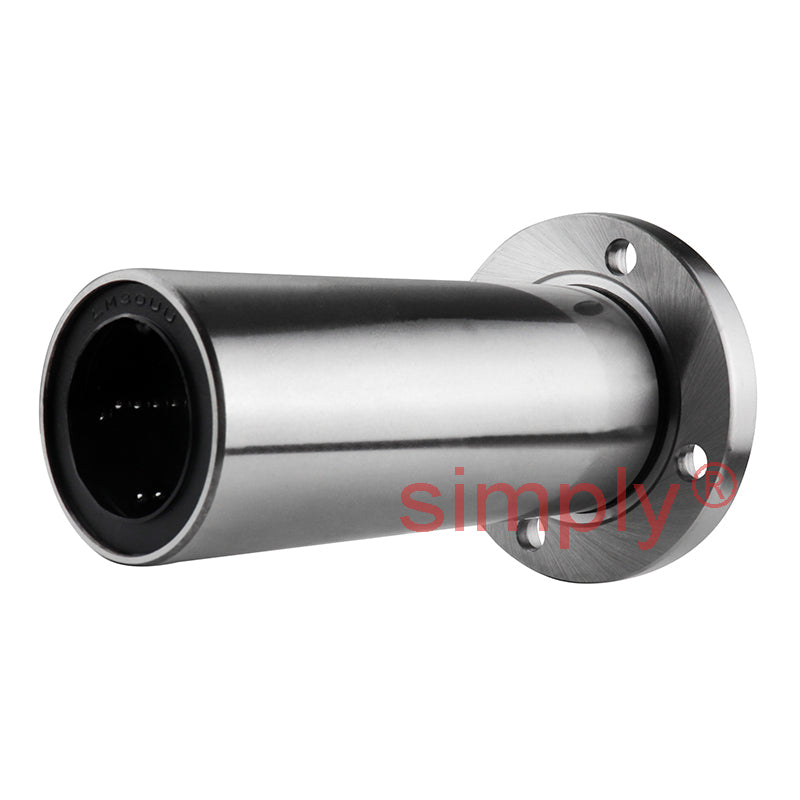

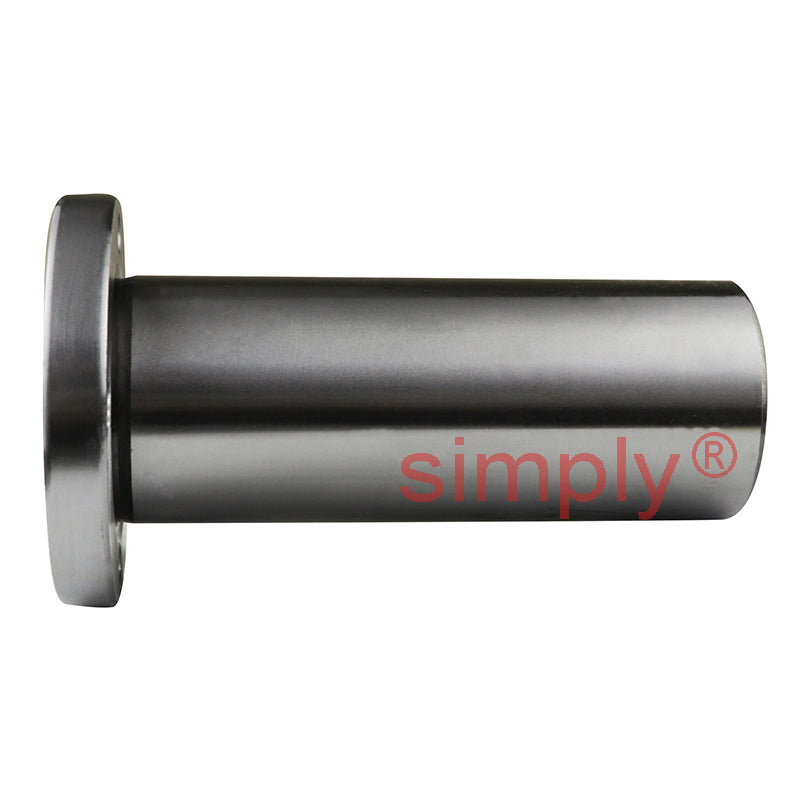

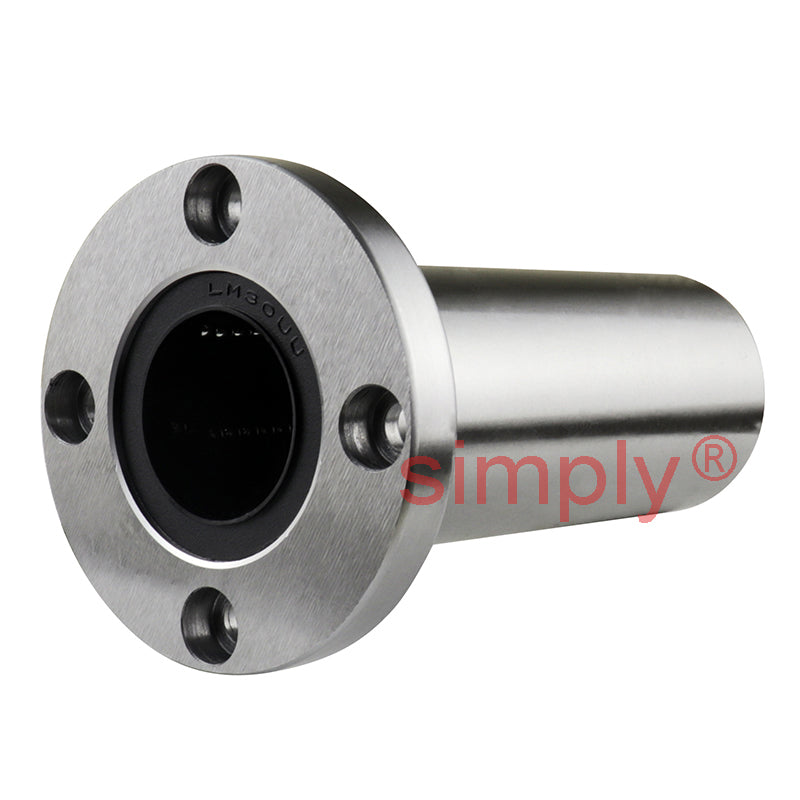

• LMF30UU Metric Round Flanged Linear Ball Bushing 30x45x64mm
  • LMF30UU Metric Round Flanged Linear Ball Bushing 30x45x64mm
  • LMF30UU Metric Round Flanged Linear Ball Bushing 30x45x64mm
1 3

SKU: LMF30-UU-EU

LMF30UU Metric Round Flanged Linear Ball Bushing 30x45x64mm

LMF30UU Metric Round Flanged Linear Ball Bushing 30x45x64mm
$29.58 ex VAT
$29.58 ex VAT
Sale Sold out

Equivalent to: LHFR30

In stock

Price Break
3+ $19.81
5+ $18.70
9+ $18.47
19+ $18.25
49+ $18.03
74+ $17.81
99+ $16.69
199+ $16.47
249+ $16.25
499+ $16.03
999+ $15.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
45mm
Length:
64mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 30mm
dr Tolerance 0 to -0.010mm
D 45mm
D Tolerance 0 to -0.016mm
L 64mm
L Tolerance 0 to -0.3mm
D1 74mm
D1 Tolerance 0 to -0.2mm
H 10mm
PCD 60mm
Mounting Hole 6.6x11x6.5mm
Basic Load Dynamic Rating C 1570N
Basic Load Static Rating C0 2750N
Mass 0.422g
Material Standard
Style Round Flanged
