SKU: LMF35-UU-EU

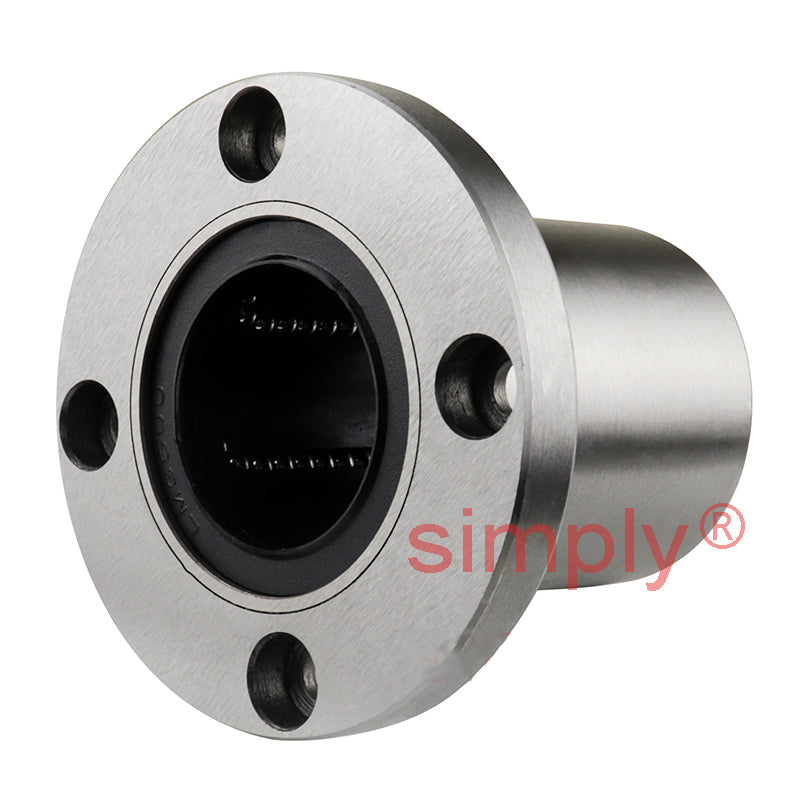

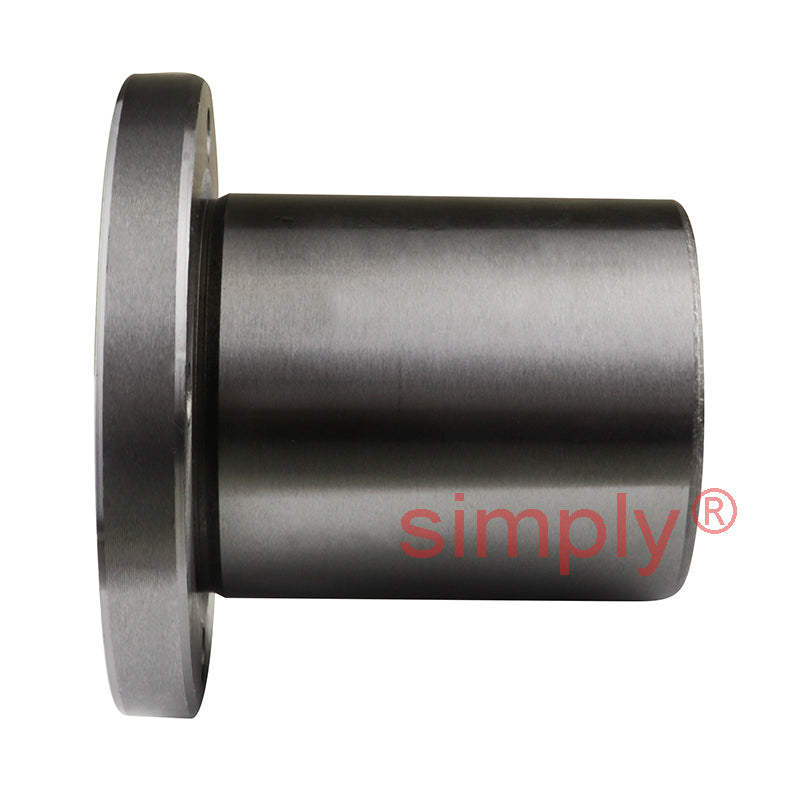

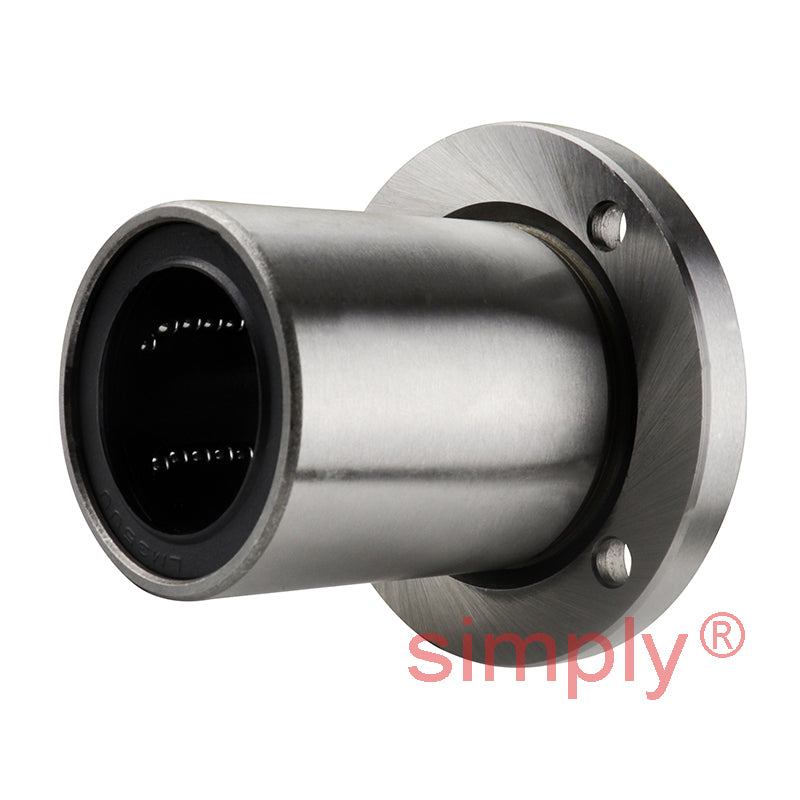

LMF35UU Metric Round Flanged Linear Ball Bushing 35x52x70mm

LMF35UU Metric Round Flanged Linear Ball Bushing 35x52x70mm
$29.58 ex VAT
$29.58 ex VAT
Sale Sold out

Equivalent to: LHFR35

In stock

Price Break
3+ $19.81
5+ $18.70
9+ $18.47
19+ $18.25
49+ $18.03
74+ $17.81
99+ $16.69
199+ $16.47
249+ $16.25
499+ $16.03
999+ $15.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
52mm
Length:
70mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 6
dr 35mm
dr Tolerance 0 to -0.012mm
D 52mm
D Tolerance 0 to -0.019mm
L 70mm
L Tolerance 0 to -0.3mm
D1 82mm
D1 Tolerance 0 to -0.2mm
H 10mm
PCD 67mm
Mounting Hole 6.6x11x6.5mm
Basic Load Dynamic Rating C 1670N
Basic Load Static Rating C0 3140N
Mass 0.583g
Material Standard
Style Round Flanged
