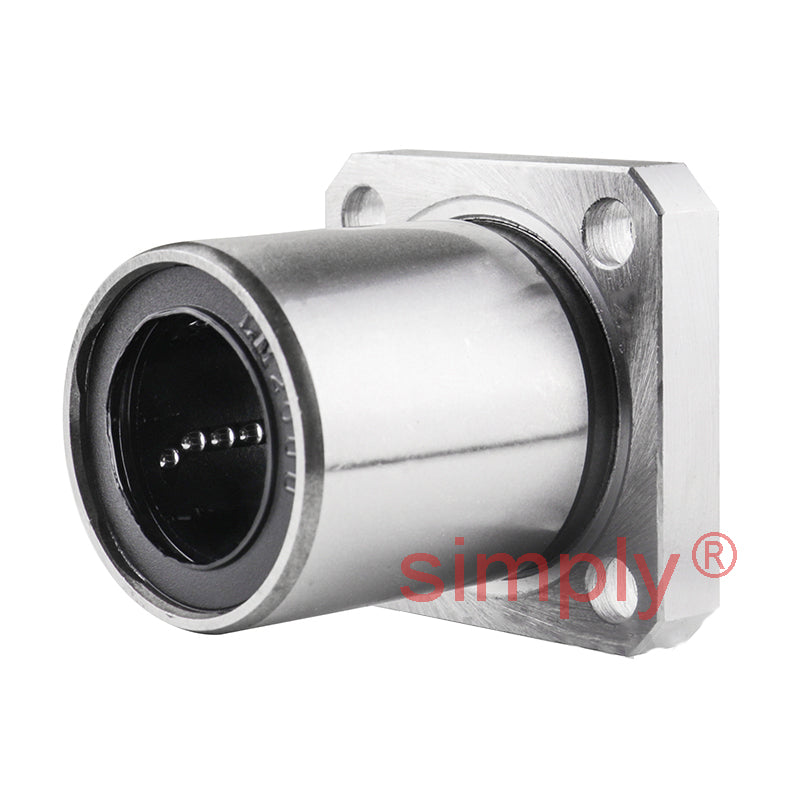

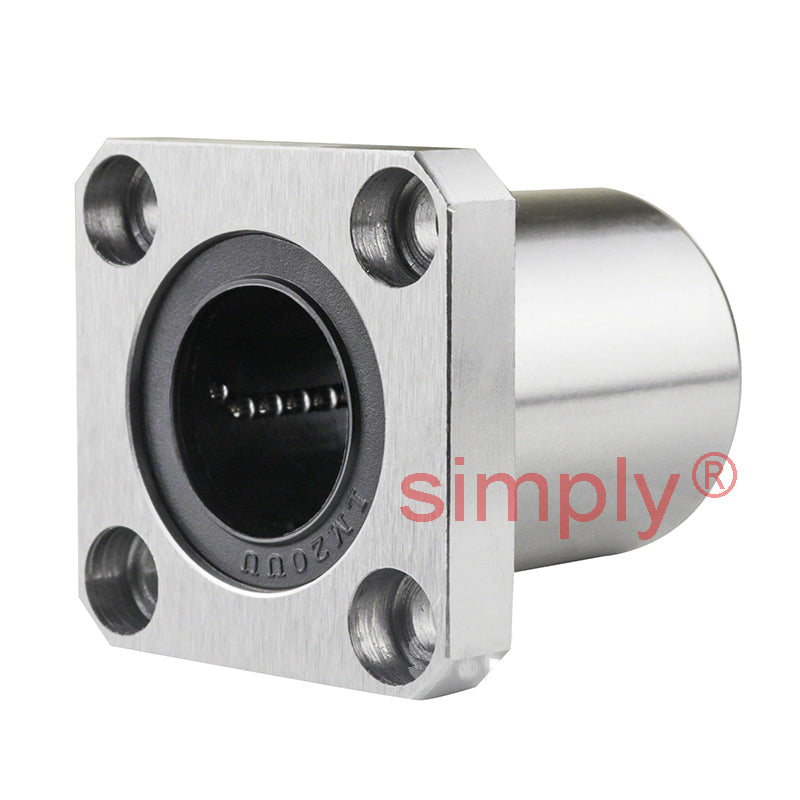

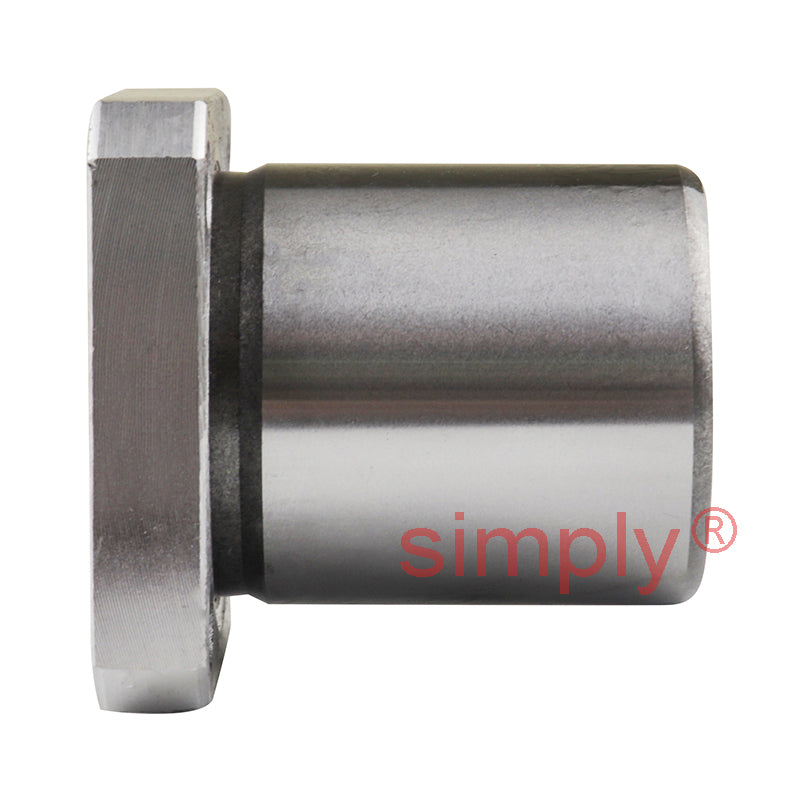

• LMK20UU Metric Square Flanged Linear Ball Bushing 20x32x42mm
  • LMK20UU Metric Square Flanged Linear Ball Bushing 20x32x42mm
  • LMK20UU Metric Square Flanged Linear Ball Bushing 20x32x42mm
1 3

SKU: LMK.20.UU.EU

LMK20UU Metric Square Flanged Linear Ball Bushing 20x32x42mm

LMK20UU Metric Square Flanged Linear Ball Bushing 20x32x42mm
$46.04 ex VAT
$46.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.84
5+ $29.10
9+ $28.76
19+ $28.41
49+ $28.06
74+ $27.72
99+ $25.99
199+ $25.64
249+ $25.29
499+ $24.95
999+ $24.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
42mm
Seals / Shields:
Rubber Sealed
Technical
Ball Rows 5
dr 20mm
dr Tolerance 0 to -0.010mm
D 32mm
D Tolerance 0 to -0.016mm
L 42mm
L Tolerance 0 to -0.2mm
D1 54mm
D1 Tolerance 0 to -0.2mm
K 42mm
H 8mm
PCD 43mm
Mounting Hole 5.5x9.2x5.4mm
Basic Load Dynamic Rating C 863N
Basic Load Static Rating C0 1370N
Mass 0.13g
Material Standard
Style Square Flanged
