SKU: LMK12-L-UU-MB

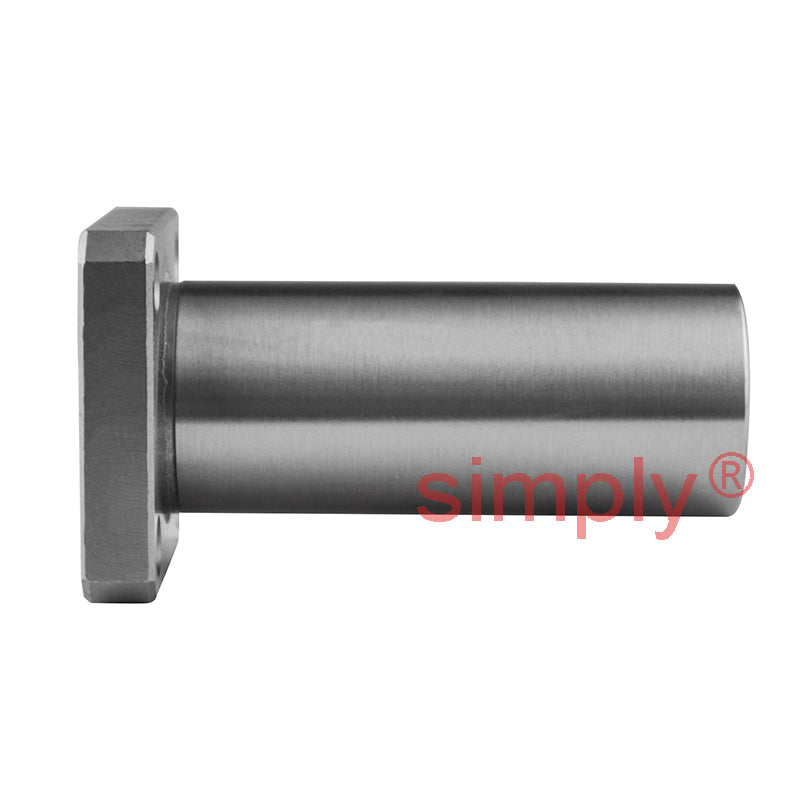

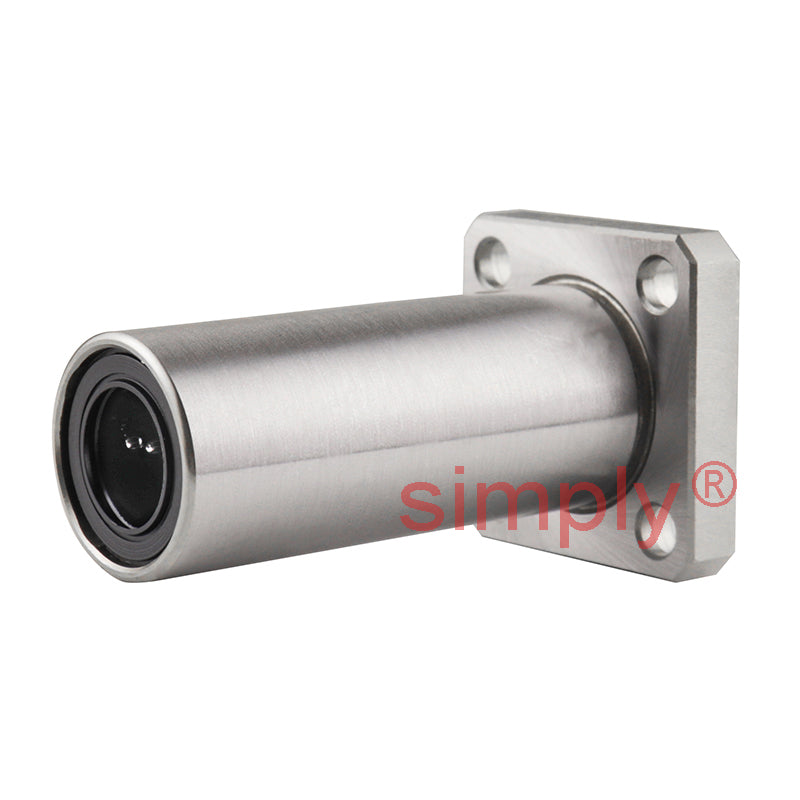

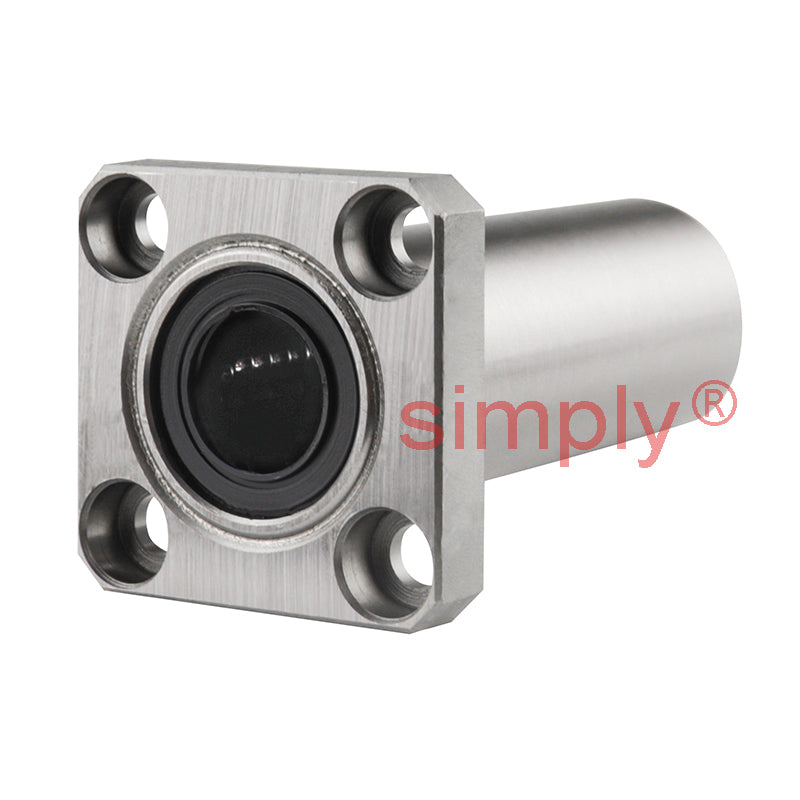

LMK12LUU Long Series Metric Square Flanged Linear Ball Bushing 12x21x57mm

Name: LMK12LUU Long Series Metric Square Flanged Linear Ball Bushing 12x21x57mm
Brand: Major Brand
SKU: LMK12-L-UU-MB
Price: 80.23 USD
Availability: InStock

$80.23 ex VAT

Sale Sold out

In stock

Price Break

3+ $53.74

5+ $50.72

9+ $50.12

19+ $49.51

49+ $48.91

74+ $48.31

99+ $45.29

199+ $44.68

249+ $44.08

499+ $43.48

999+ $42.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 21mm
Length:: 57mm
Seals / Shields:: Rubber Sealed

Technical

Ball Rows	4
dr	12mm
dr Tolerance	0 to -0.010mm
D	21mm
D Tolerance	0 to -0.016mm
L	57mm
L Tolerance	0 to -0.3mm
D1	42mm
D1 Tolerance	0 to -0.2mm
K	32mm
H	6mm
PCD	32mm
Mounting Hole	4.5x8x4.4mm
Basic Load Dynamic Rating C	657N
Basic Load Static Rating C0	1200N
Mass	0.076g
Material	Standard
Style	Square Flanged
